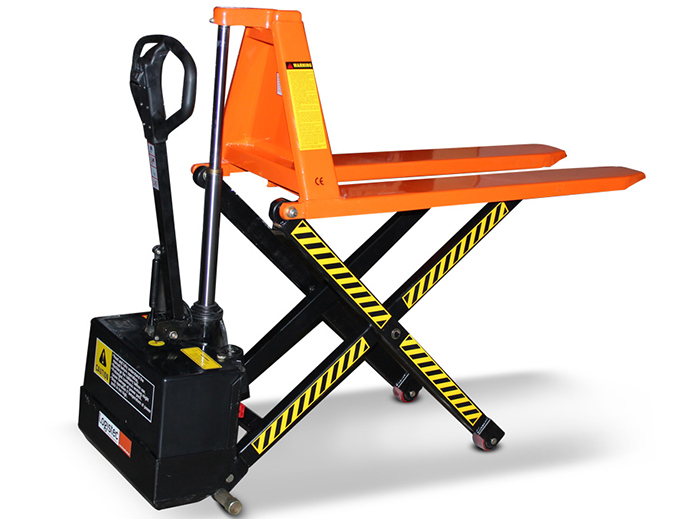

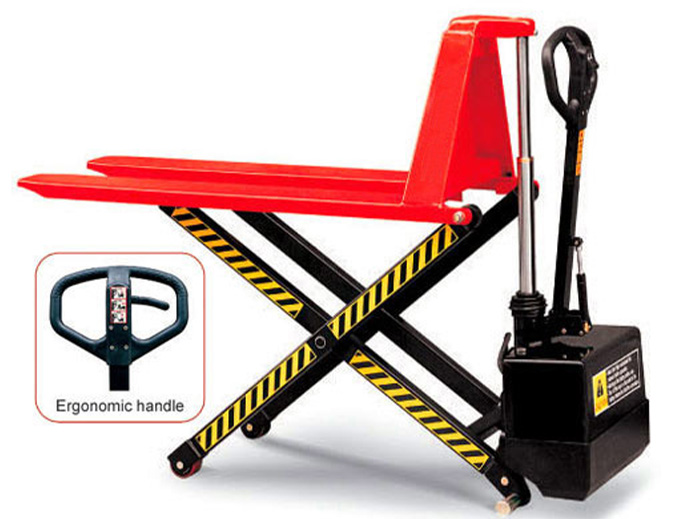

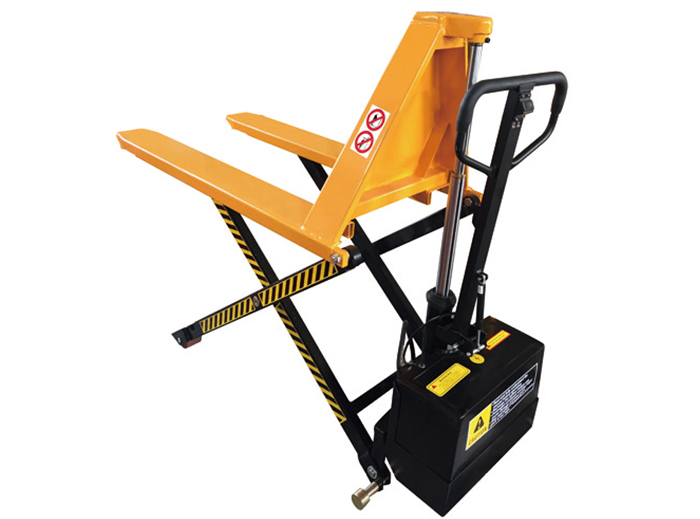

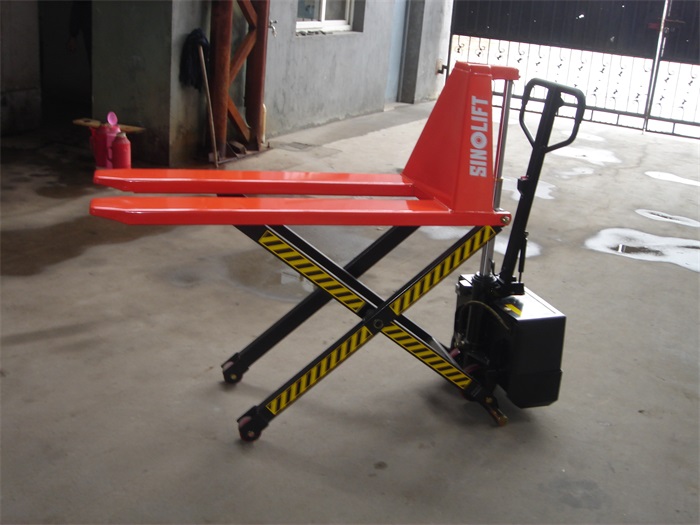

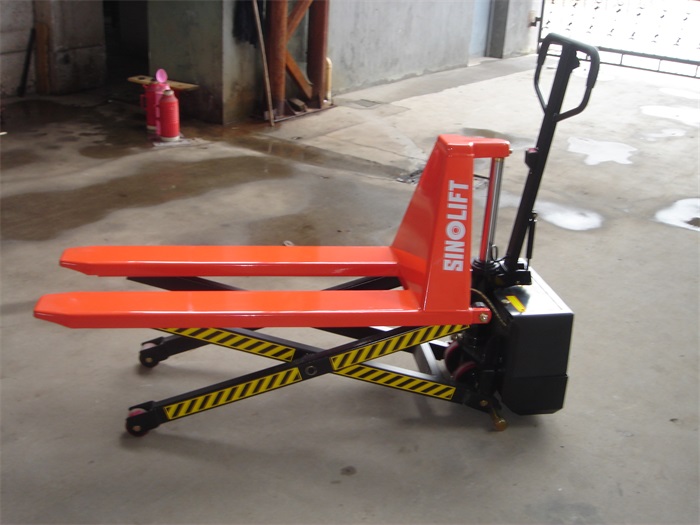

Name:NPHD1000/NPHD1500 Electric Scissor High Lift Pallet Jack
Model:NPHD1000/1500
Product Introduction:If you use open bottom containers or skids, now you can transport and palletize with a single unit. This high lift pallet jack / skid lifter travels easily over any industrial surface and can easily be adjusted up and down at the touch of a button.

The electric high lift pallet truck (also sometimes referred to as a 'Hi-lifter truck' or 'Scissor Lift Pallet Truck') is designed to eliminate repetitive back strain when loading or offloading pallets by hand. The high lift pallet truck has a scissor action to lift pallets to a working height of 800mm. Our scissor lift pallet trucks conform to the latest applicable health and safety regulations and can help to reduce the chances of a back strain or injury.

SINOLIFT electric double-cylinder pallet jack truck with scissor lift features an ergonomic design with an enhanced frame for durability and safety. Load capacity up to 1500kg.This electric pallet jack features overload protection to prevent it from lifting excessive loads and reduce maintenance costs. Top-of-stroke bypass secures the hydraulic system. Designed to load and unload goods for feed printing, punch presses, and other creative applications.


Model NPHD1000 NPHD1500
Capacity (kg) 1000 1500
Lowest Fork Height (mm) 85 85
Max. Fork Height (mm) 800 800
Fork Length X Fork Width (mm) 1140X520 or 1140X680 1100X520 or 1100X680
Diameter of front wheel (mm) Ø75X50 Ø75X50
Diameter of Rear Wheel (mm) Ø150X50 Ø150X50
Lifting time in Full Range(s) 10/12 18
Size of Fork (mm) 162X50 162X50
Descending Speed (m/s) <0.1 <0.1
Motor Working Voltage (v) 12 12
Battery Volgage (v) 12 12
Electricity Volume (A/h) 63 63
Working pressure of Pump Station (Mpa) 15 21
Imput/output Voltage of Charger (v) 200-240/12 115-230/12
Service Weight (kg) 118 / 128 145 / 155
Max. Charging Current of Charger (A) 10 10
