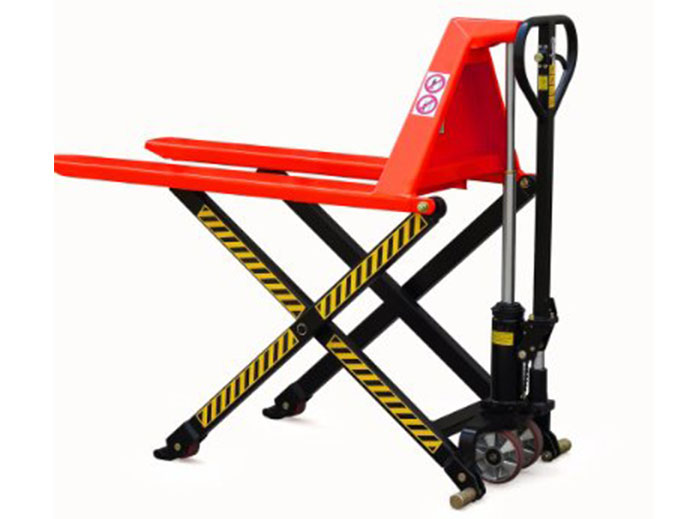

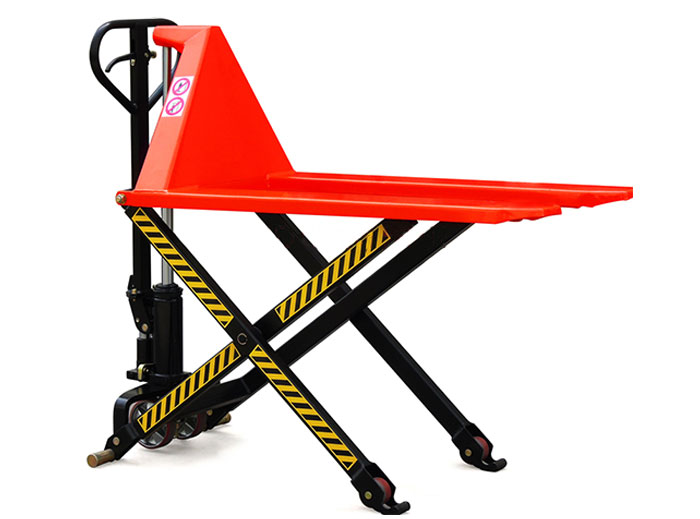

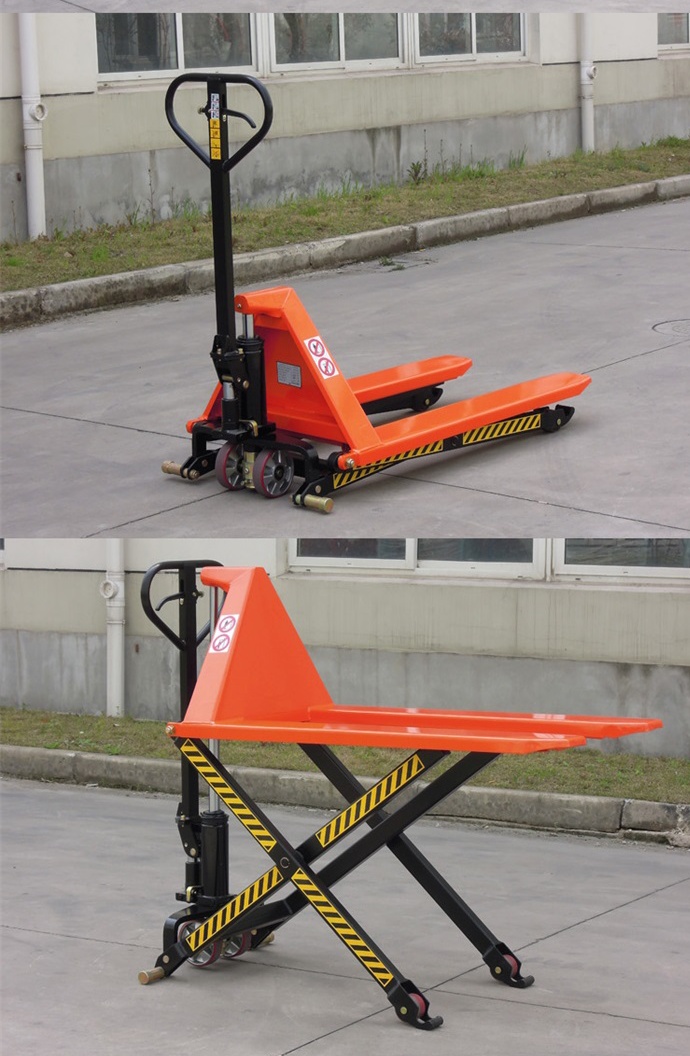

Name:NPH series Scissors Lift Pallet Truck
Model:NPH
Product Introduction:Combination of manual pallet truck and lifting platform for the transport and lifting of palletized goods to each department.


Scissor lift pallet truck features and benefits:
• Works as a pallet jack to transport pallet loads of product around your warehouse
• Works as a scissor lift pallet truck by lifting pallets to 800mm height.
• 1500kg lifting capacity
• Lifts pallets to the height of a table or work surface so you can slide products off pallet without lifting
• Scissor pallet lift designed to work with open bottom pallets or skids


Model

NPH1000

NPH1500

NPH1000A

NPH1500A

Min. Height

kg

1000

1500

1000

1500

Tiller

Steel

Steel

Robber Coated

Robber Coated

Quick Lift

Manual Transfer

Manual Transfer

Automatic Transfer

Automatic Transfer

Min.Fork Height

mm

85

85

85

85

Max.Fork Height

mm

800

800

800

800

Size of Fork

mm

162×50

162×50

162×50

162×50

Length of Fork    L

mm

1140

1100

1140

1100

Width over Fork

mm

520/680

520/680

520/680

520/680

Net Weight

kg

105/112

118/125

105/112

118/125

Fork Rollers

mm

Φ75×50

Φ75×50

Φ75×50

Φ75×50

Steering WheelPU or Nylong

mm

Φ150×50

Φ150×50

Φ150×50

Φ150×50

Steering Wheel (Rubber)

mm

Φ180×50

Φ150×50

Φ180×50

Φ150×50

Pallet Packing Size520mm4pcs/Pallet

mm

1930×580×720

1930×580×720

1930×580×720

1930×580×720

Pallet Packing Size680mm4pcs/Pallet

mm

1930×740×720

1930×740×720

1930×740×720

1930×740×720

Pcs/20" container

120/96

120/96

120/96

120/96
