Home >> Products >> TFL Mini box stacker

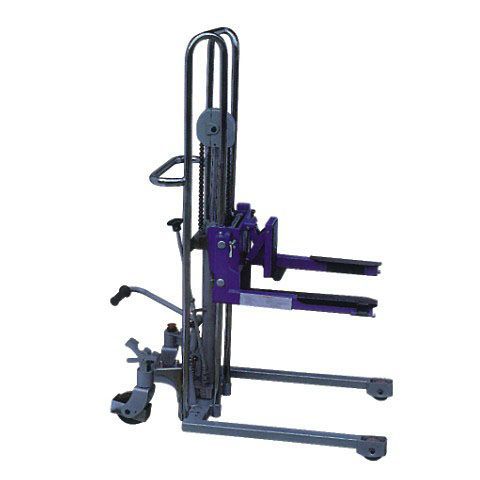

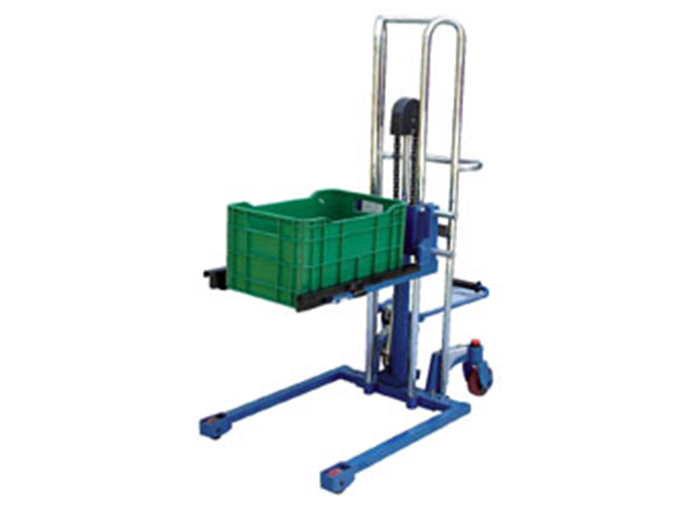

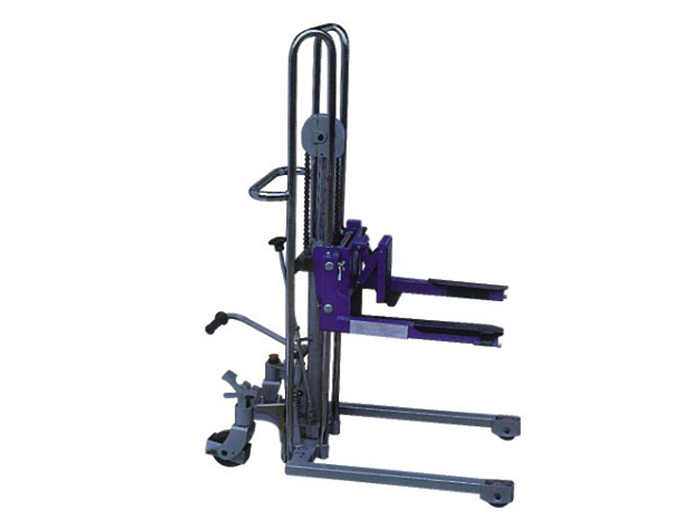

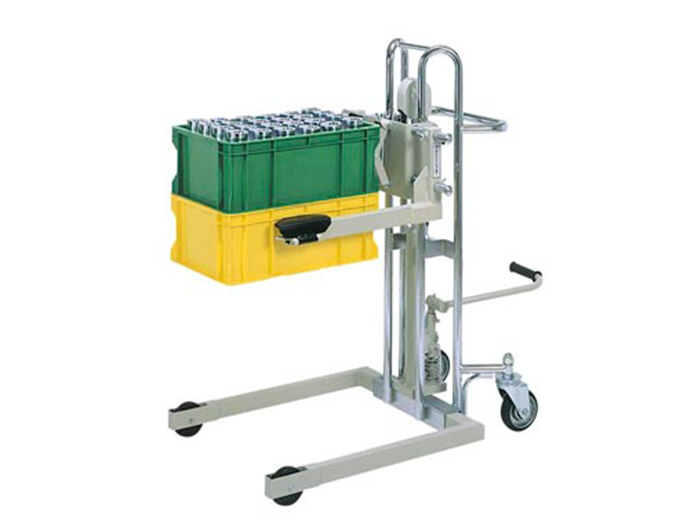

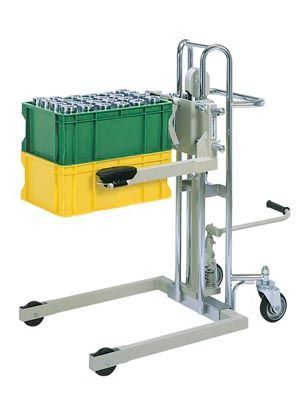

Name：TFL Mini box stacker
Model：TFL
Product Introduction：Idear for use in narrow aisles an confined spaces.Perfect for all applications from pharmaceutical to catering, from packing line to food processing, from warehouse to office, kitchens, laboratories, retail outlets.etc.Small turning radius make it easier to make sharp turns.Controllable direction handle. Has a dual pump for easier lifting.

TFL Mini box stacker

l Idear for use in narrow aisles an confined spaces.

l Perfect for all applications from pharmaceutical to catering, from packing line to food processing, from warehouse to office, kitchens, laboratories, retail outlets.etc.

l Small turning radius make it easier to make sharp turns.

l Controllable direction handle.

l Has a dual pump for easier lifting.

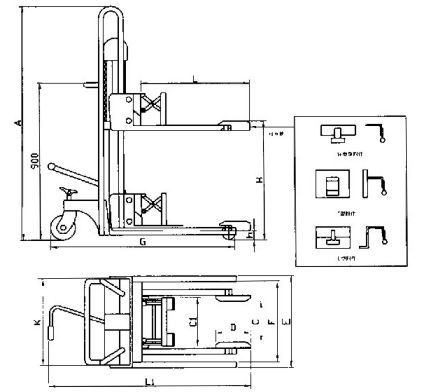

Model		TFL150-SL	TFL150-SM	TFL150-LL	TFL150-LM	TFL150-TL	TFL150-TM
Capacity	kg	150	150	150	150	150	150
Lifting Height	mm	850	1200	787	1137	870	1220
Min. Height	mm	70	70	70	70	90	90
L	mm	500	500	650	650	510	510
C	mm	202	402	254	454	240	440
D	mm	280	280	570	570	200	200
E	mm	450	600	450	600	450	600
F	mm	358	508	358	508	358	508
G	mm	953	953	1045	1045	953	953
K	mm	536	536	536	536	536	536
A	mm	1134	1484	1134	1484	1134	1484
Net Weight	kg	51	56	50	55	50	55
