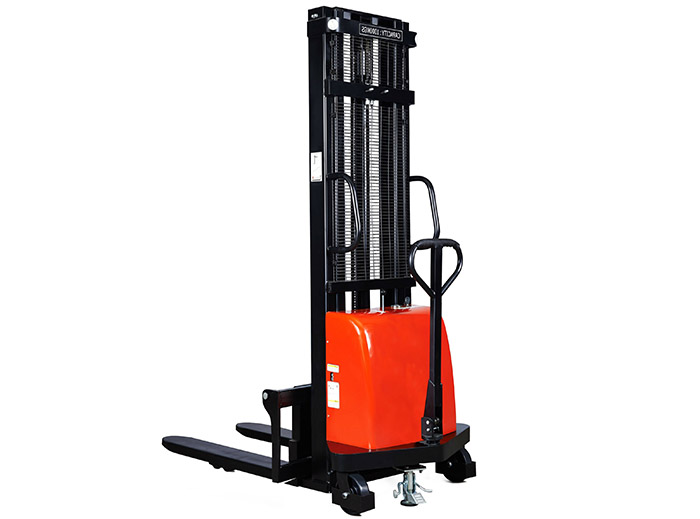

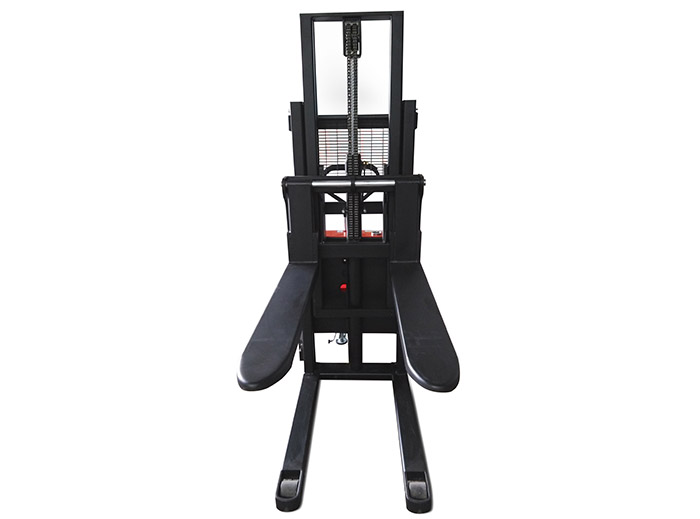

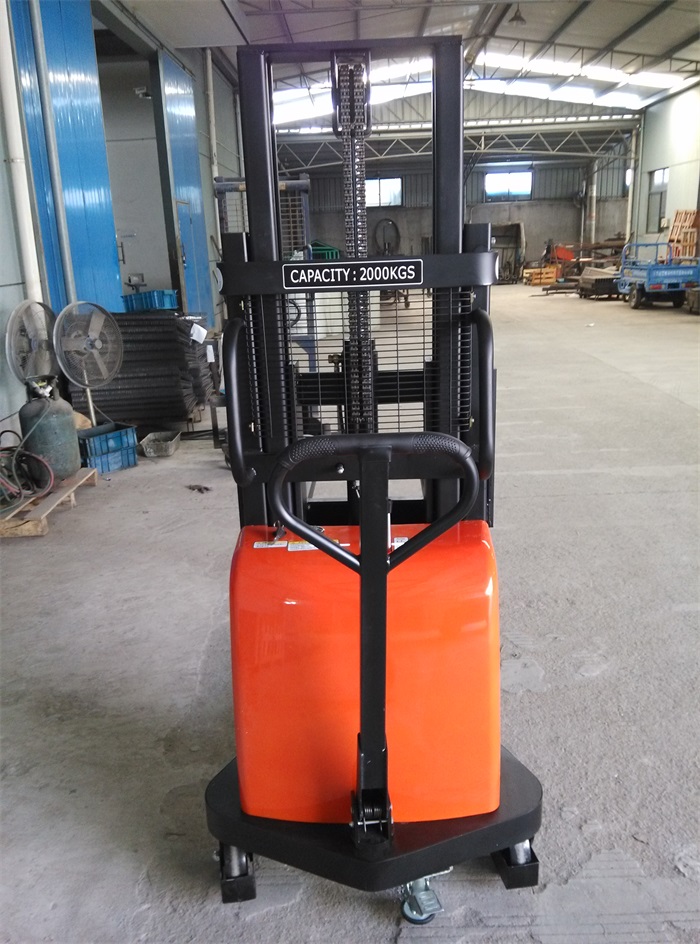

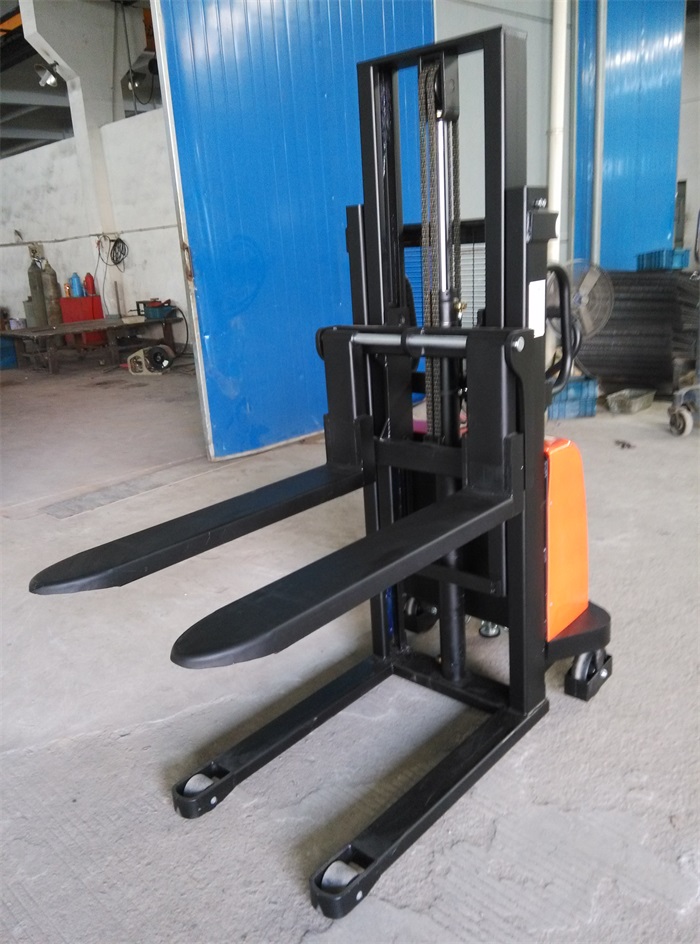

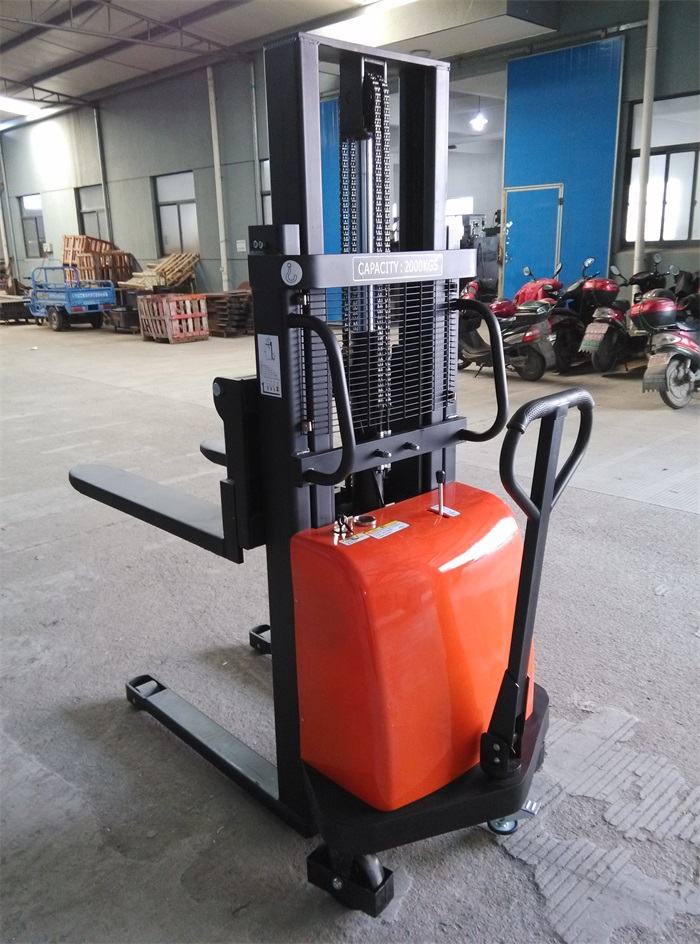

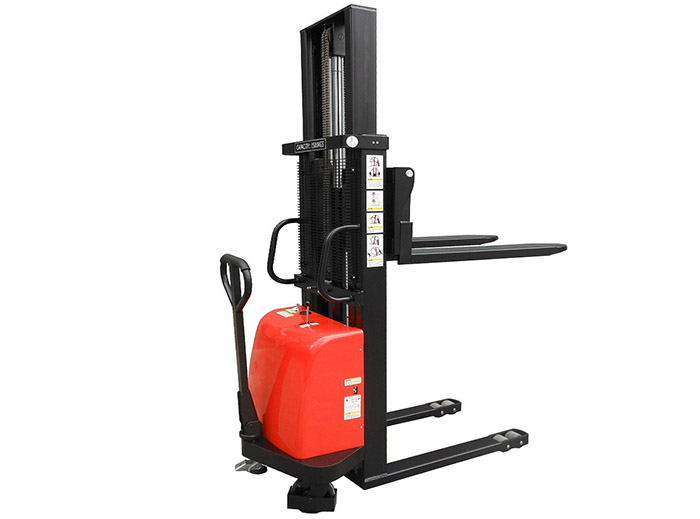

Name:DYC  Semi-Electric Stacker
Model:DYC
Product Introduction:Semi-electric stackers take the hard part out of working with stacker trucks, with a fully electric lift the only non-electric function is movement done by manual push/pull. Ideal for more frequent operations where manual lifting can become strenuous and contribute towards repetitive strain injury, the semi-electric stacker takes most of the strains away.

Features:

1. It is mainly used for short distance transportation of pallets and goods on shelves in warehouses and freight yards.

2. Strong I-type high strength imported door frame material;

3. The main functional units are all imported components.

4. Highly stable and easy to operate;

5. Low noise, no pollution, low failure rate;

6. Walking control, international classic style;

7. The height can be increased under appropriate conditions.

Model No.

DYC10

DYC15

DYC20

Rated Capacity

Q(Kg)

1000

1500

2000

Load Center

C(mm)

400

400

400

Lifting Height

H(mm)

1600/2000/2500/3000/3500

1600/2000/2500/3000/3500

1600/2000/2500

Min. Fork Height

H3(mm)

85

85

85

Fork Length

L(mm)

1000

1000

1000

Fork Width (Adjustable)

E(mm)

320-685

320-685

320-685

Turngin Radius

Wa(mm)

1335

1335

1335

Max. Mast Height with Mast Extended

H2(mm)

2165/2532/3032/3532/4032

2165/2532/3032/3532/4032

2165/2532/3032

Closed Height with Mast Lowered

H1(mm)

2165/1565/1815/2065/2315

2165/1565/1815/2065/2315

2165/1565/1815

Overall Width

B(mm)

800/900

800/900

800/900

Overall Length

A(mm)

1685

1685

1685

Clearance

H4(mm)

30

30

30

Lifting Speed (unladen/laden)

mm/s

230/130

230/130

230/130

Lowering Speed (unladen/laden)

mm/s

400*500

400*500

400*500

Lifting Motor

v/kw

12/1.6

12/1.6

12/1.6

Battery

v/ah

12V/120AH

12V/120AH

12V/120AH

Charger

v/a

12V/18A

12V/18A

12V/18A

Net Weight

kg

460

460

480
