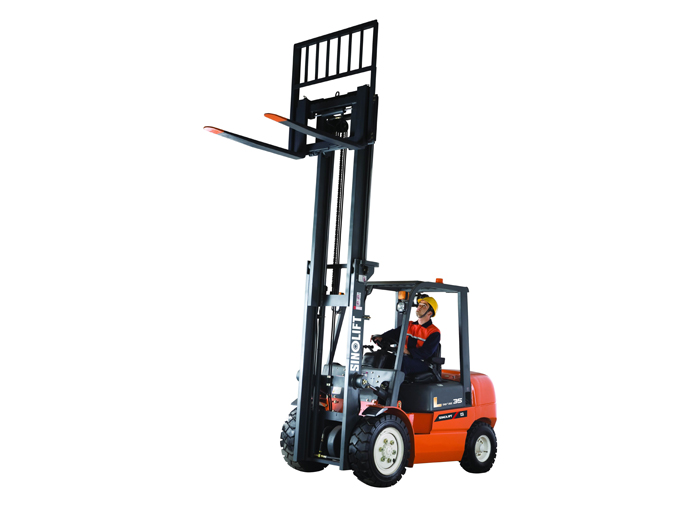

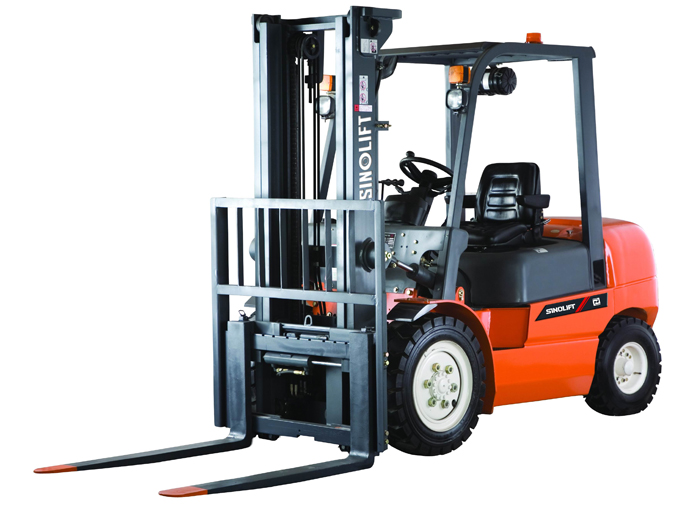

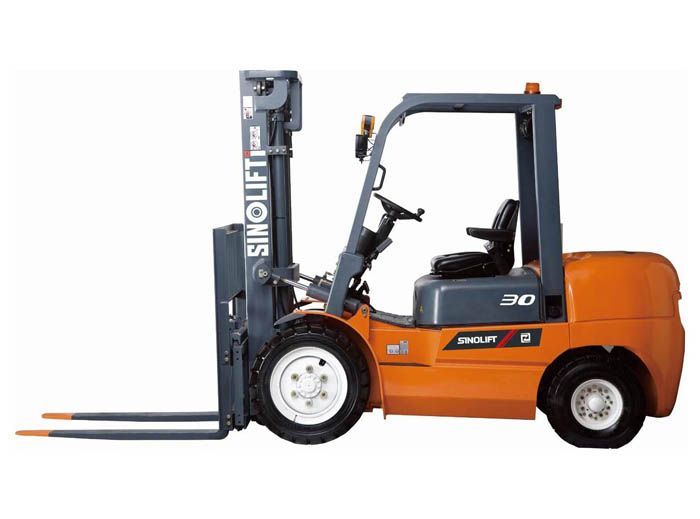

Name:L Series 2-3.5T Diesel Forklift (CPCD20-35)
Model:CPCD20-35
Product Introduction:The machine body is designed with big arc streamline and fitted with open anti-slippage pedal.high position air suction inlet is fitted behind the top protection frame above the column to ensure the engine absorbs clean air and prolong the service life.


2—3.5T Internal Combustion (Diesel) Balance Weight Forklift

The machine body is designed with big arc streamline and fitted with open anti-slippage pedal. High position air suction inlet is fitted behind the top protection frame above the column to ensure the engine absorbs clean air and prolong the service life. The engine hood has functions of sound absorption and heat isolation.

Rear in-built dual lifting cylinder is used, wide visual view, safety operation and high efficiency.

A hydraulic converter produced by introduction of Japanese technology, high efficiency, no oil leakage, reliable work, compact structure of hydraulic transmission, shift gear valve, micromotion valve, characterized by smooth starting, stepless speed adjustment, micromotion and acceleration performance.

Full hydraulic steering gear, transverse cylinder, steering axle integrated into one body, flexible steering, compact structure and convenient repair.

Adjustable driver’s seat, reducing operation fatigue to a maximum extent. Tilt lifting steering wheel and new type multifunctional panel fully represents harmony between the machine and human.

Imported sealing parts are used in the cylinder, cone sealing used in fittings, good sealing performance, long service life; multiple reversing valve with automatic tilt locking device, advanced structure to meet safety requirement.

Big power and free-maintaining battery with American technology, small volume, good performance, long storage period; general contactor arranged in the electric circuit, prolong life of the key switch, completely removing self-discharge.

Beautiful appearance, quick and smooth lifting, high productivity, it is an ideal loading and unloading machine for stations, ports, docks, warehouse, warehouse, airports and factories which need low noise and small smoke.

SHAPE \* MERGEFORMAT

Wide, comfortable, safe
•Wide operation environment with people oriented seat, reducing operator's fatigue.
•Adjustable steering wheel and new type multifunctional instrument.
•Posted double lifting cylinder brings wide front vision and high working efficiency.
Nice
•Streamlined body design, brings nice appearance; antiskid sides pedal, brings convenient operation.
Smart
•Horizontal swing cylinder and swing axle with shock absorber brings a compact and smart structure.
Convenient
•Front and back open engine cover, brings a cool and quiet engine; main parts are all in a maintainable place, brings an easy maintained forklift.
Clean
•The dual air filter is optional according to the requirement of customer.
•Air vent is in the top of machine, ensuring clean air supply and long using life of machine.



Generals Manufacturer SINOLIFT L Series 2.0T-3.5T Diesel Forklift Specifications
Model CPC(D)20-X2 CPC(D)25-X2 CPC(D)30-X2 CPC(D)35-X2
CPC(D)20-W1 CPC(D)25-W1 CPC(D)30-X3 CPC(D)35-X3
CPC(D)20-W3 CPC(D)25-W3 CPC(D)30-X4 CPC(D)35-X4


CPC(D)30-Y2 CPC(D)35-Y2

CPC(D)30-W2 CPC(D)35-W2
Power type Diesel Diesel Diesel Diesel
Rated capacity kg 2000 2500 3000 3500
Load center mm 500 500 500 500
Dimensions Lift height mm 3000 3000 3000 3000
Free lift height                                                            E mm 140 140 145 145
Fork size                                                            N×U×L mm 1070*120*40 1070*100*45 1070*125*45 1070*130*45
Mast tilt angle  α / β deg 6/12 6/12 6/12 6/12
Front overhang                                                       A2 mm 482 482 501 501
Overall dimensions Length to face of fork           A1 mm 2510 2580 2720 2720
Overall width   B1 mm 1150 1150 1225 1225
Mast lowered height   H1 mm 1995 1995 2070 2070
Mast extended height   H3 mm 4037 4037 4272 4272
Overhead guard height   H2 mm 2060 2060 2090 2090
Turning radius  R mm 2170 2240 2460 2460
Min. right angle aisle width  X mm 1920 2010 2110 2190
Performance Travel speed (no load / full load) Hydraulic km/h 17/19 17/19 17/19 17/19
Mechanical Shift  I 8.5/9 8.5/9 8.8/9 8.8/9
Shift  II 18.5/19 18.5/19 18.5/20 18.5/20
Lift speed (full load) mm/sec 450 450 400 360
Max. gradeability % 20 20 18 15
Self weight kg 3550 3880 4380 4750
Wheel & Tires Tires Front 7.00-12-12PR 7.00-12-12PR 28*9-15-14PR 28*9-15-14PR
Rear 6.00-9-10PR 6.00-9-10PR 6.50-10-10PR 6.50-10-10PR
Tread Front  B2 mm 970 970 1000 1000
Rear   B3 mm 970 970 970 970
Wheelbase  A3 MM 1600 1600 1700 1700
Ground clearance (full load / no load) Mast  M mm 85/105 85/105 110/135 110/135
Frame  F 100/105 100/105 130/135 130/135
Drive units Engine Options Engine Code Name X2 X3 X4 W1 W2 W3 Y3
Model XINCHAI 490BPG XINCHAI 495BPG XINCHAI 498BPG ISUZU C240PKJ ISUZU 4JG2 ISUZU HJ493 Yanmar 4TNE98
Rated output kw/rpm 37/2650 42/2650 45/2500 34.5/2500 44.9/2450 39/2500 44.3/2300
Rated torque N.m/rpm 148/1900 174/1800-2000 191/1600 139/1800 186.3/1600-1800 165/1800 206/1700
No.of cylinder 4 4 4 4 4 4 4
Bore × stroke mm 90*100 95*105 98*105 86*102 95.4*107 92*93 98x110
Displacement L 2.54 2.98 3.168 2.369 3.059 2.771
