Home >> Products >> ES10-10ES Single mast E Stacker

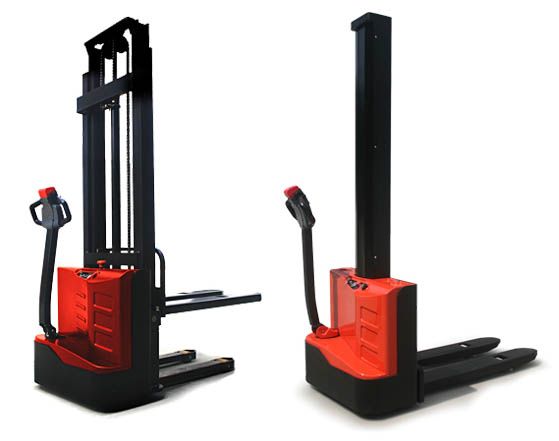

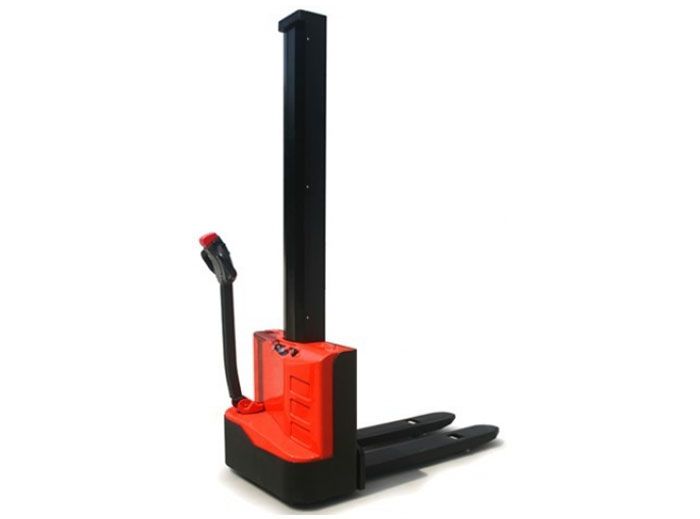

Name：ES10-10ES Single mast E Stacker
Model：ES10-10ES
Product Introduction：ES10-10ES Single mast E Stacker

● Designed for easy lifting and transferring job
● Extraordinary reliability for minimized maintenance and downtime
● Battery level indicator
● Progressive speed AC control system
● Horn and electrical brake
● Emergency stop and belly button

Model		ES10-10ES
Load capacity	Q (kg)	1000
Service weight (Incl. battery)	kg	550	580
Lift height	h₃ (mm)	1600	2000
Fork height, lowered	h₁₃ (mm)	85
Overall length	l₁ (mm)	1580
Overall width	b₁/ b₂ (mm)	800
Outside fork width, minimum/ maximum	b₅ (mm)	570
Aisle width, 1000×1200 pallet crossways	Ast (mm)	2100
Aisle width, 800×1200 pallet lengthways	Ast (mm)	2030
Outer turning radius	Wa (mm)	1326
Travel speed, laden/ unladen	km/ h	4.2/5
Lifting speed, laden/ unladen	m/ s	0.10/ 0.14
Battery voltage/ rated capacity (5h)	V/ Ah	2x12/70
