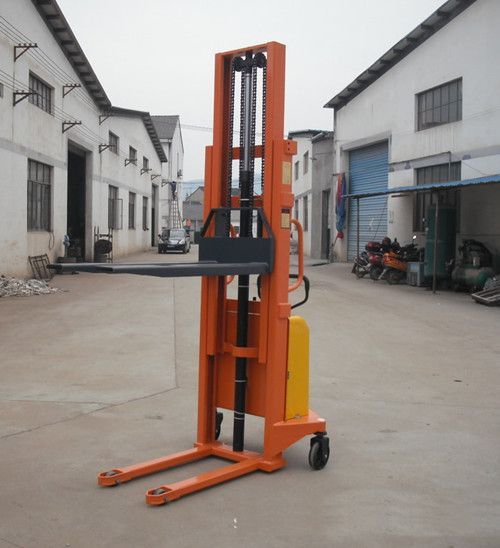

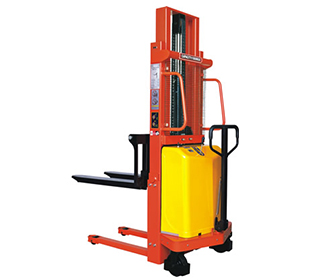

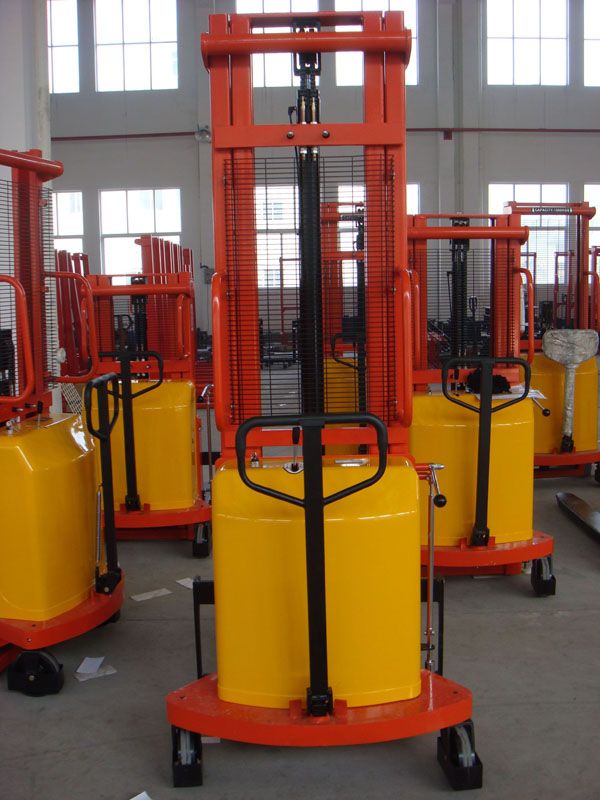

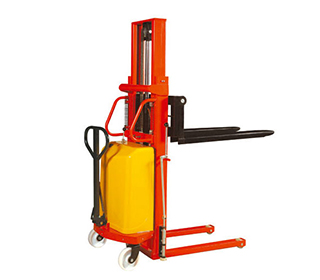

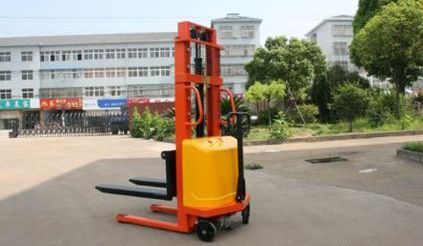

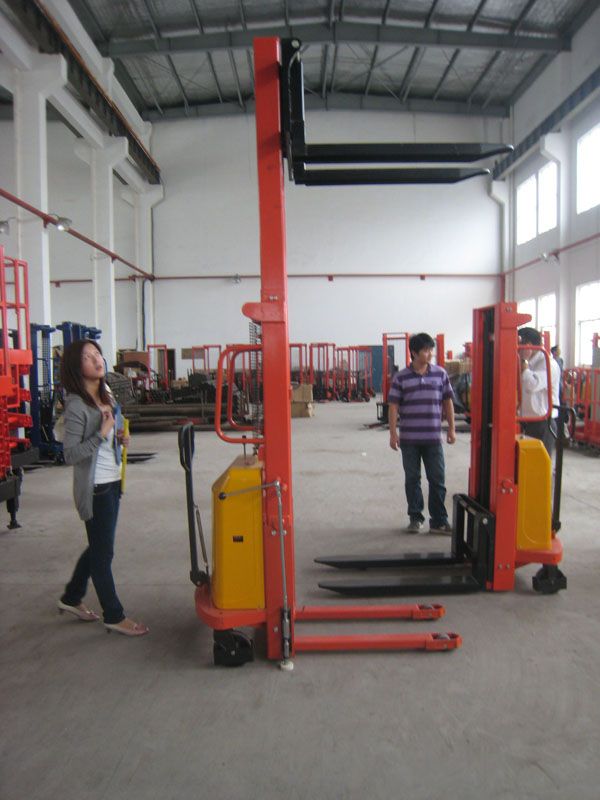

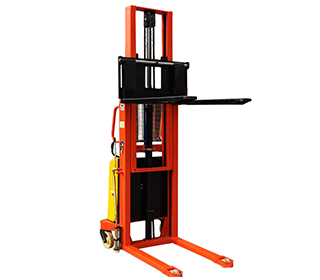

Name:CTD Duplex Mast Semi-Electric Stacker
Model:CTD
Product Introduction:Ideal for loading and unloading trucks, positioning dies, or feeding material to presses, equipped with safety screen and floor lock.

Features:

1. Adopt the steel plate cargo fork with integral stamping forming, beautiful and durable.

2. The "C" steel gate frame manufactured by the special rolling process is firm and safe.

3. The oil cylinder adopts high precision abrasion-resistant honing pipe, imported sealing parts, one-body valve core, which is convenient for dismounting and maintenance.

4. The integrated hydraulic power unit has more stable and reliable performance.

5. Throughout the vehicle body is fully automatic spray plastic technology, beautiful and generous, never fading.

6. The high-quality liquid crystal screen displays battery power and reminds operators to charge in time to extend the battery life.

Model CTD1000-16 CTD1500-16 CTD2000-16
Rated Capacity(Q) Kg 1000 1500 2000
Mast Single Mast
Lifting Height(H) Mm 1600 1600 1600
Fork Length(L) Mm 1000 1000 1000
Fork Width(E) Mm 300~680 300~680 300~680
Load Center(C) Mm 400 400 400
Minimum Turning Radius(R) Mm 1350 1350 1350
Lifting Motor V/Kw 12/1.5-1.6 12/1.5-1.6 12/1.5-1.6
Battery V/Kh 12/120 12/120 12/120
Charger V/Kh 12/15 12/15 12/15
Overall Length(A) Mm 1670 1670 1670
Overall Width(B) Mm 865 865 865
Overall Height(H1) Mm 2060 2060 2060
Net Weight Kg 340 362 388
