Home >> Products >> NPL series Low Profile Hand Pallet Truck

Name：NPL series Low Profile Hand Pallet Truck
Model：NPL
Product Introduction：One of best sellings in the world. 1. A built in overload valve and totally sealed hydraulic pump. 2. Japanese seal kit offers long span life of pump for 3 years warranty. 3. Heavy duty and reinforced forks for greatest strength and durability.

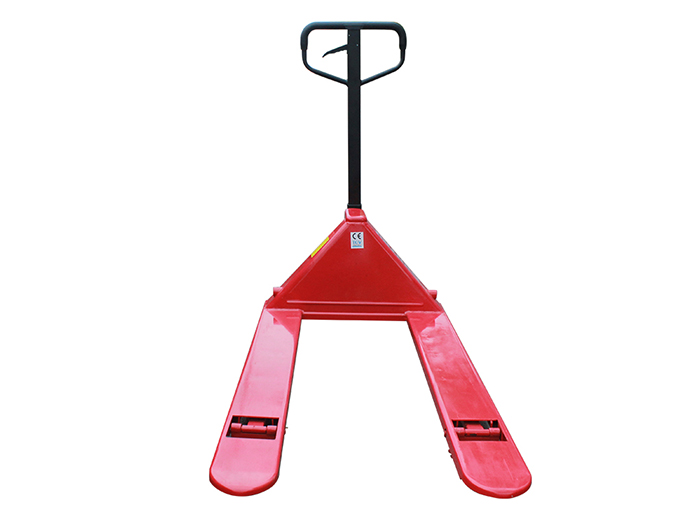

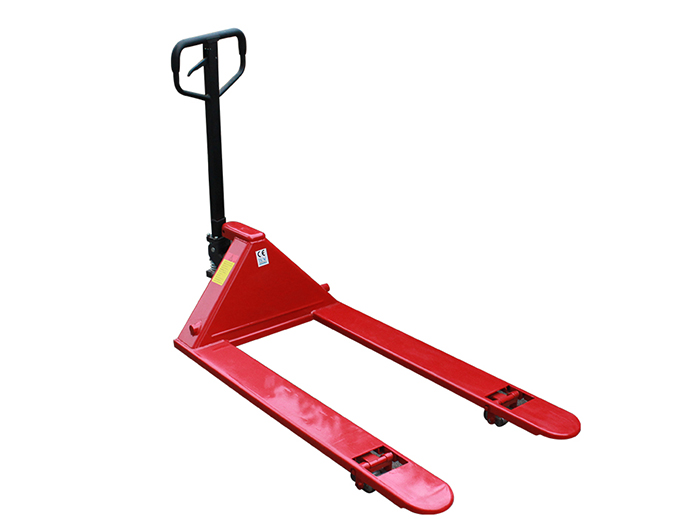

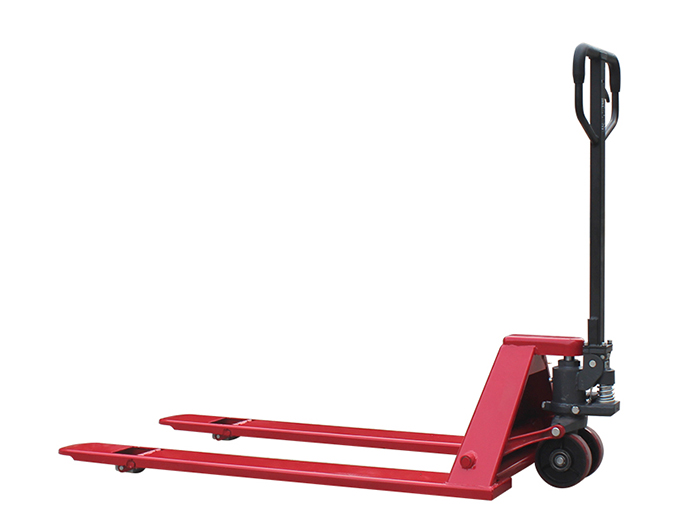

NPL low-profile hand pallet truck

One of best sellings in the world.

1. A built in overload valve and totally sealed hydraulic pump.

2. Japanese seal kit offers long span life of pump for 3 years warranty.

3. Heavy duty and reinforced forks for greatest strength and durability.

4. Entry rollers prevent physical exertion of the operator and protect load rollers and pallet.

5. Maintenance free oil bushings at key points offer you less operating force and longer span life of pallet truck.

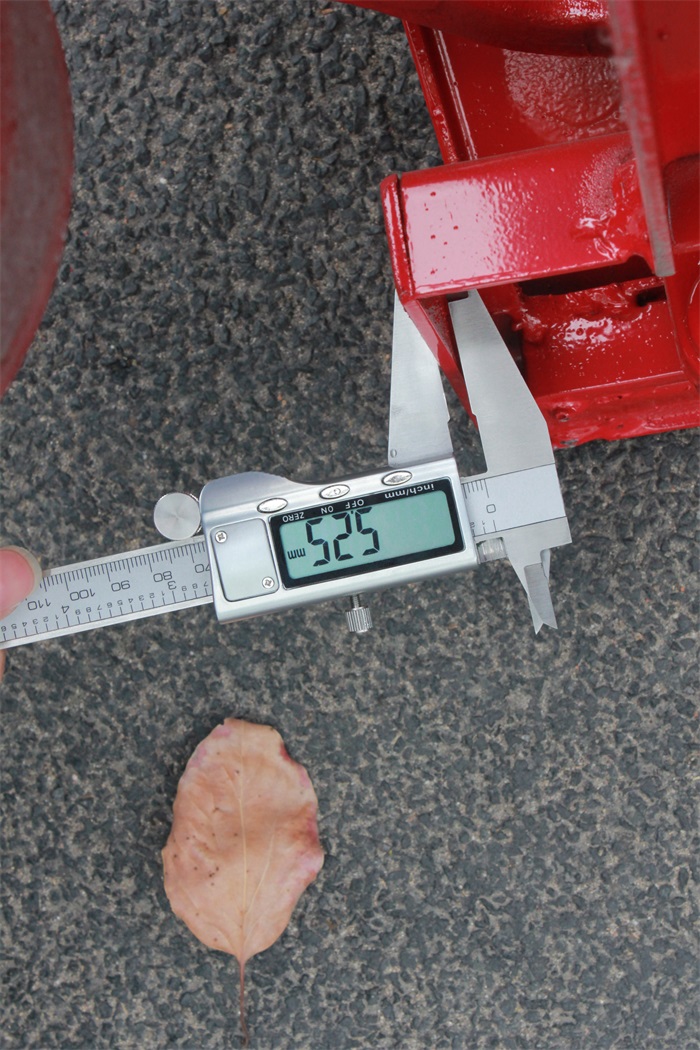

6. With 65mm special lowered height this type of pallet truck was originally designed to handle tin plate packs. Now in great demand for container stuffed load handling.

7. Diverse fork sizes on request such as 820, 990, 1080, 1160, 1230, 820, 990, 1080, 1150, 1230mm lengths and 520, 685mm fork widths.

8. Maximum load capacity up to 2500kg

Model	Capacity	Forkwidth	Forklength	Min. Height	Max. Height	Steer wheel	Load Wheel	Weight
Model	(kg)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(kg)
NPL15-58	1500	520	820	65	165	Ø180*62	Ø65*100 (single)	66
NPL15-59		520	990					70
NPL15-510		520	1080					71
NPL15-511		520	1160					73
NPL15-712		685	1230					79
NPL25-58	2500	520	820	65 (75)	165(185)	Ø180*62	Ø65*100 (single)	67
NPL25-59		520	990					71
NPL25-510		520	1080					72
NPL25-511		520	1150					73
NPL25-712		685	1230					80
