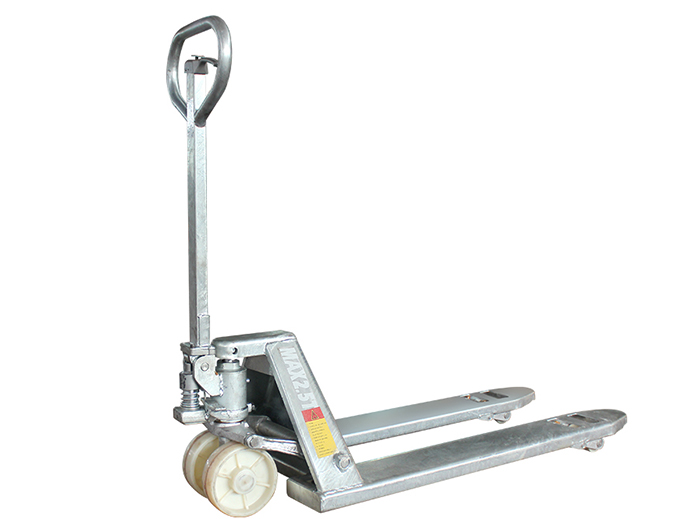

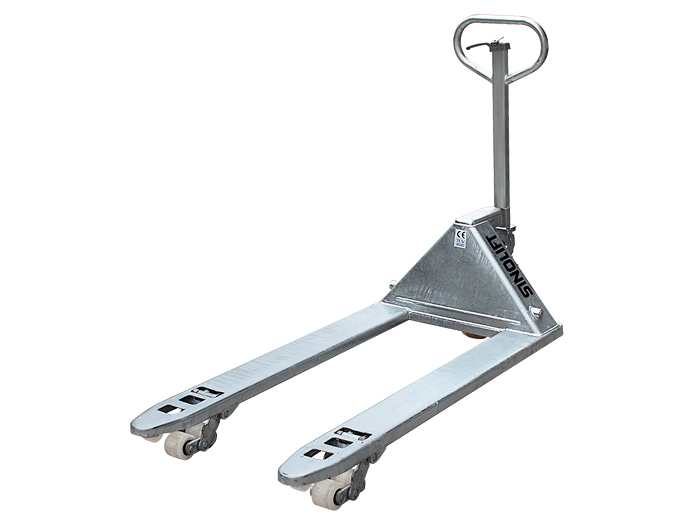

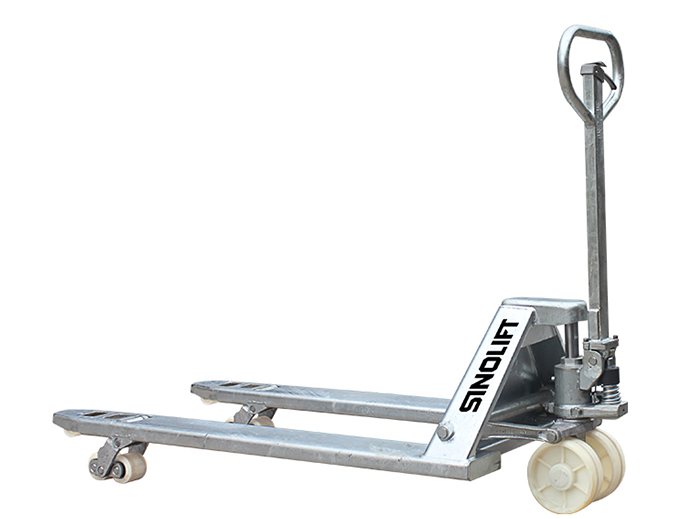

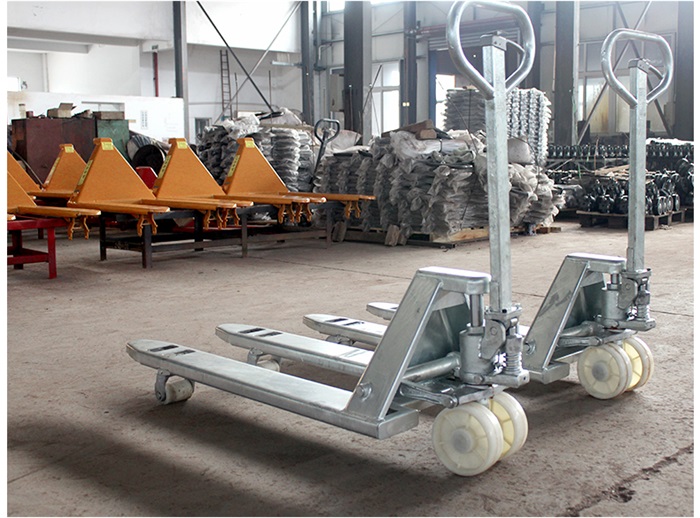

Name:NPG series Galanized Hand Pallet Truck
Model:NPG
Product Introduction:SINOLIFT NPG hand pallet trucks are also available in stainless steel or with a galvanized finish, to protect them from rusting in corrosive environments like cold storage and food manufacturing facilities. Its hygienic quality makes them also particularly suitable for applications in the pharmaceutical industry and clean rooms.

Galvanized, Zinc and Chrome Plated
Designed for corrosive or wet environments these full featured pallet trucks were designed for chemical, pharmaceutical and wash down.

Stainless Steel and Stainless Steel Frame & Forks
Ideal for sanitary, pharmaceutical, medical, food and wet environments.  Choose either 304 stainless steel pallet truck for long life in even the most harsh environments.

These pallet trucks are available made with different types of finishes,  For American markets, standard specifications is all with a 5,500 pound capacity and a service range of 2 7/8" to 7 3/4".  Forks are 27" wide x 48" long.

Model

NPG20

NPG25

Capacity Q

kg

2000

2000

Min. fork height h

mm

85

75

Max. fork height h1

mm

200

190

Steering wheel

mm

Φ200x50

Φ180x50

Load roller Single

mm

Φ82x93

Φ74x93

Load roller Tandem

mm

Φ82x70

Φ74x70

Size of fork

mm

160x60

Width overall forks B

mm

520/540/685

Fork length I

mm

1100/1150/1220
