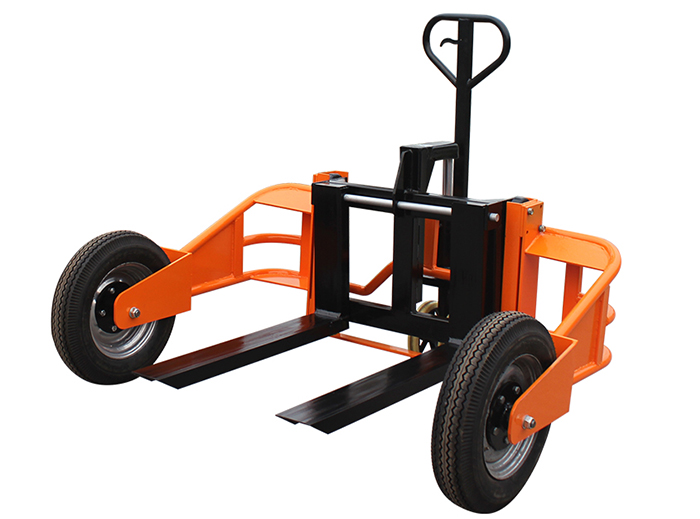

Name:RP1000A RP1250A Rough Terrain Pallet Truck
Model:RP1000A RP1250A
Product Introduction:The Rough Terrain Pallet Truck operates like a standard pallet truck, but features large wheels to allow for easy movement on gravel, dirt and other rugged surfaces, indoors or outside. The perfect choice for moving evenly distributed loads at construction sites, nurseries, gravel pits and more.

Rough Terrain Trucks  RPA series

▲ Great equipmet to move heavy loads up till 1250kg.
▲ Ergonomic design of the frame to reduce the operation effort.
▲ Meanwhile the truck is robust enough for the purpose to work outside such as builders yard, garden centers where there's only an occasional need for moving pallets by forklifts or where no ordinary forklift or even pallet truck can go.The fork is adjustable for special dimension pallet.

Model

RP1000A

RP1250A

Rated Capacity

(kg)

1000

1250

Max.Fork Height

h1 (mm)

240

240

Min.Fork Height

h (mm)

70

70

Fork Length

l (mm)

800 (860)

800 (860)

Load Center

C (mm)

400 (430)

400 (430)

Adjustable Fork Width

(mm)

216-680

256-680

Individual Fork Width

b (mm)

100

120

Distance inside the  Front Wheel

B1(mm)

1230

1230

Axle Distance between front Wheel and rear steering wheel

Y (mm)

973

973

front Load Wheel (Dia.×Wid)

(mm)

Ø568X145

Ø568X145

Rear Steering Wheel (Dia.×Wid)

(mm)

Ø250

Ø250

Turn Radius

Wa (mm)

1500

1500

Overall Size (L×W×H)

(mm)

1406X1670X1280

1406X1670X1280

Net Weight

(kg)

210

238
