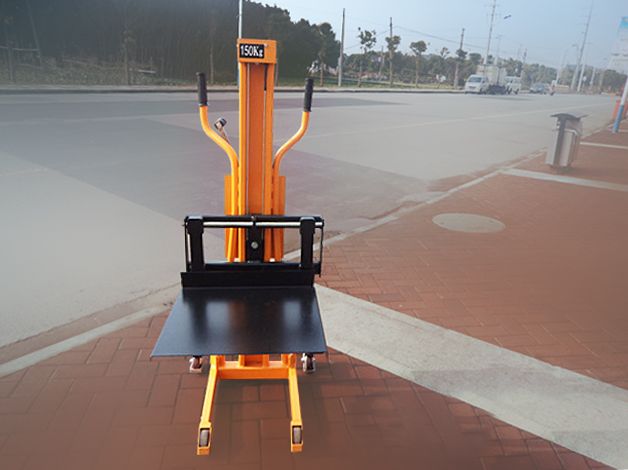

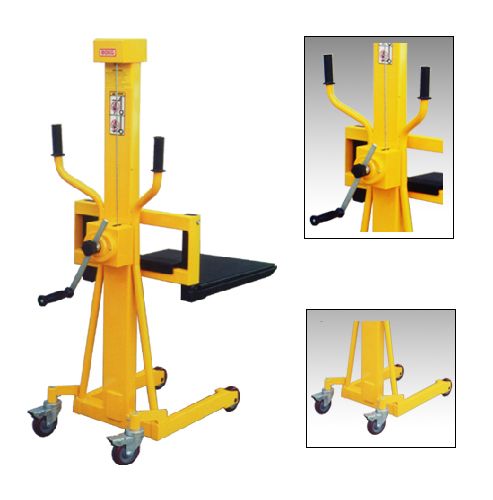

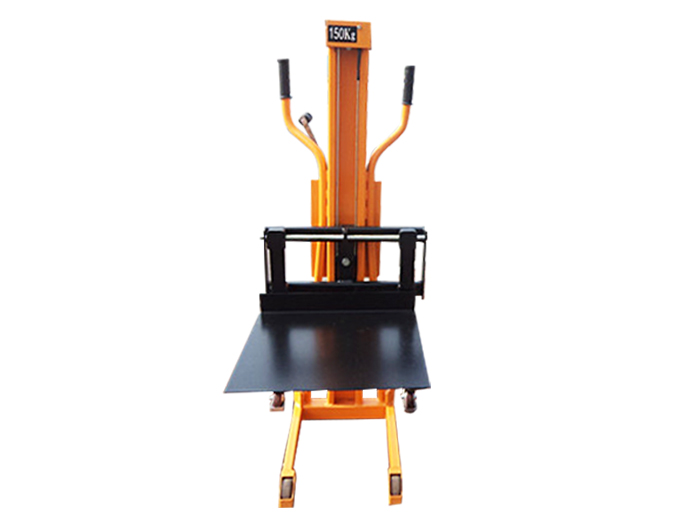

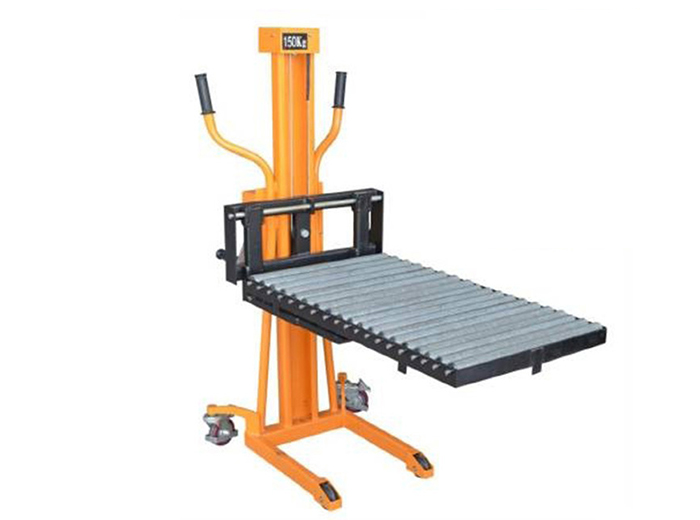

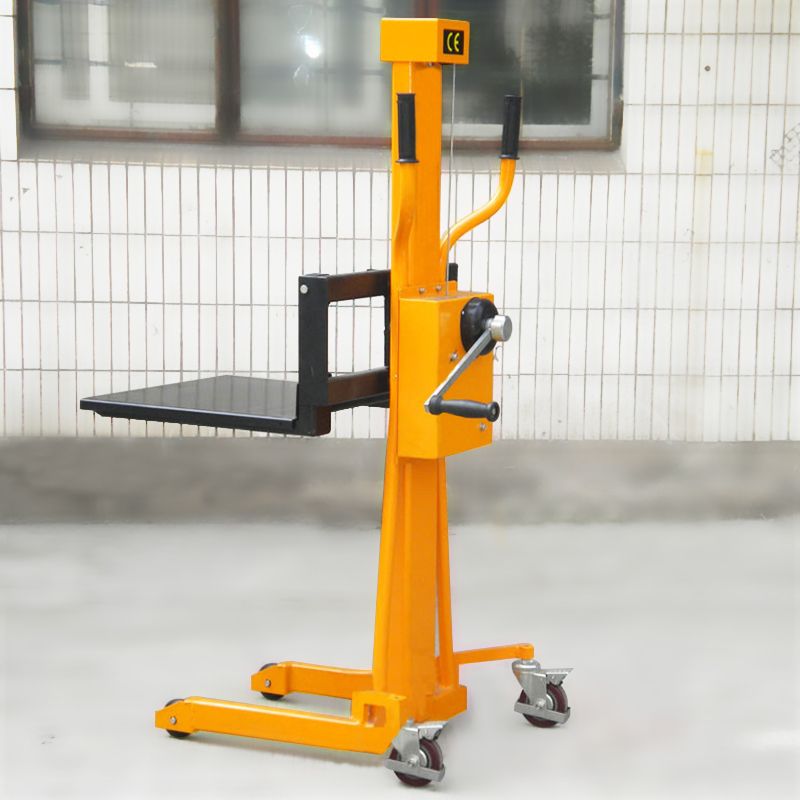

Name:mini manual stacker
Model:LS80 LS150
Product Introduction:Robust, lightweight, steel construction. Maneuverable, extremely easy to use. Cable winch lifting system with full cable housing. Adjustable fork from 132mm to 520mm. Platform is a standard accessory.

Robust, lightweight, steel construction.
Easy to maneuver with its two rigid wheels and two locking swivel wheels. extremely easy to use.

Cable winch lifting system with full cable housing.

Removable platform for increased versatility, and it is also a standard accessory

Handle length on the hand crank may be adjusted to increase or decrease lifting/lowering speeds

Model LS80 LS150
Capacity (kg) 80 150
Load Centre (mm) 250 250
Lifting Height (mm) 1100 1100
Straddle Leg Height (mm) 85 85
Min. Fork Height (mm) 70 70
Fork Length (mm) 500 500
Individual Fork Width (mm) 50 50
Platform Size (mm) 500x530x90 500x530x90
Over Adjustable Fork Width (mm) 132-520 132-520
Effort Force with Load (N) 82 106
Load Wheel (mm) Ø100x30
Steering Wheel (mm) Ø100x30
Overall Dimensions (mm) 865x550x1470 830x580x1475
Net Weight (kg) 52 62
