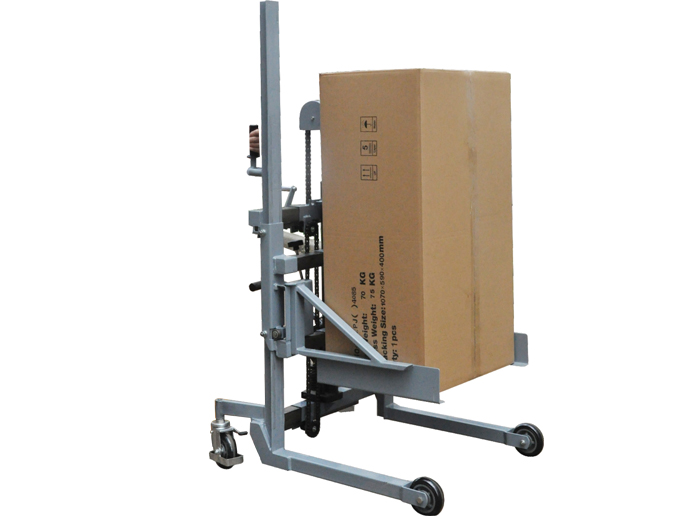

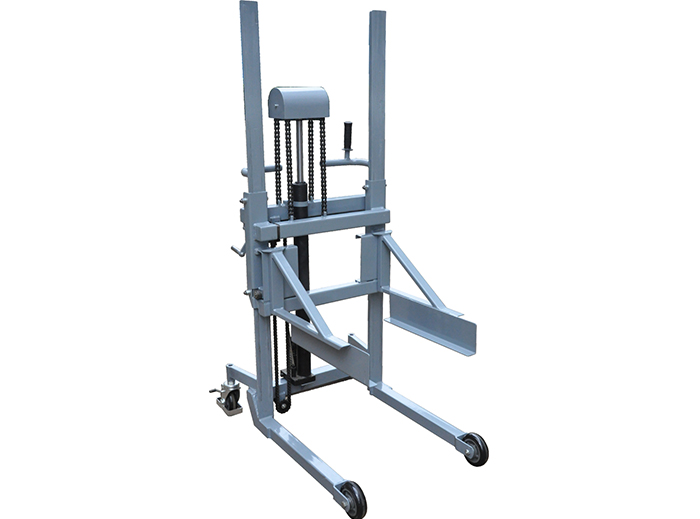

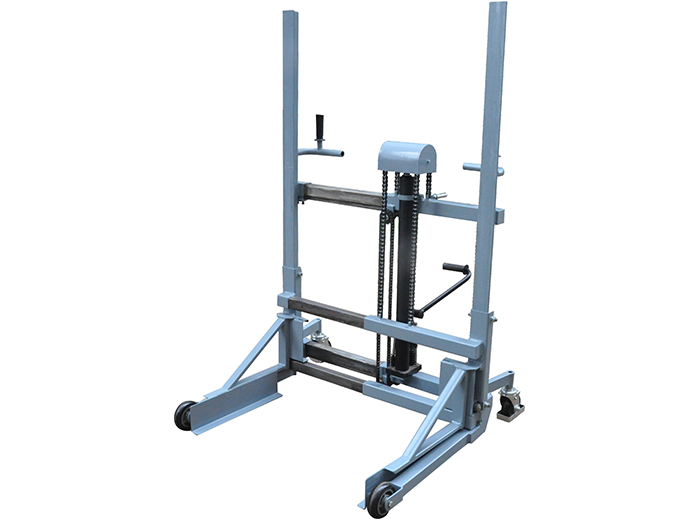

Name：SC Work Postioner
Model：SC300 Work Postioner
Product Introduction：1.Special design of sideway movement,especially for the movement and lifting of box class 2.Flexible structure,forks and legs can be retractable and suitable for differert sizes of boxes 3.Various mechanism combination,retractable sideway movement,self-locking can be safe and reliable with easy and convenient operation 4.Various non-standard design can meet differnt station requirements

1.Special design of sideway movement,especially for the movement and lifting of box class
2.Flexible structure,forks and legs can be retractable and suitable for differert sizes of boxes
3.Various mechanism combination,retractable sideway movement,self-locking can be safe and reliable with easy and convenient operation
4.Various non-standard design can meet differnt station requirements

Model		SC300
Max.Capacity	kg	300
Removable Width of Forks	mm	400-900
Min.Fork Height	mm	Landing
Max.Fork Height	mm	1000
Removable Width of Retractable Legs	mm	500
Wheel Size	mm	φ125/φ125
Overall Size	mm	9355801675
Net Weight	kg	88
