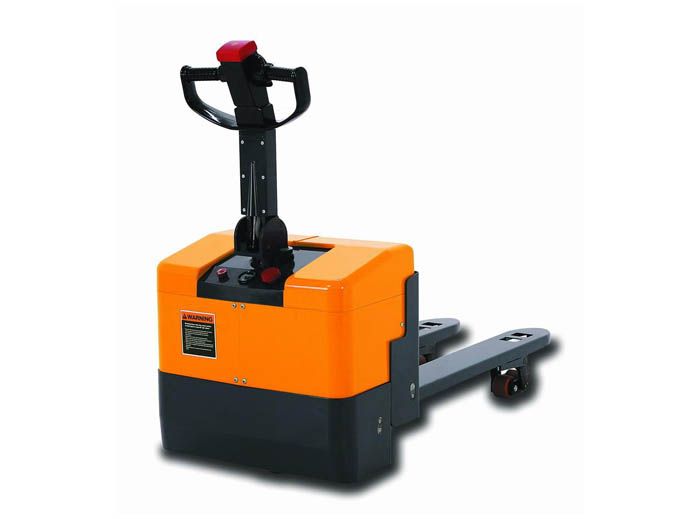

SWP13 SWP15 Power Pallet Truck

SINOLIFT MATERIAL HANDLING EQUIPMENT CORP.

Add：No. 2471-2477 Dachuan Road, Nanhui Industry park, Pudong new District, Shanghai, P.R.China 201314.

Tel：021-68014500 58003681

Fax：021-68014262

Email：sales@sinolift.com

Website：www.sinolift.com

Contact Person：Mr. David deng

Mobile：0086-13817572420

Skype：sinolift

Name：SWP13 SWP15 Power Pallet Truck
Model：SWP13 SWP15
Product Introduction：SWP13 SWP15 Power Pallet Truck

Characteristic	Model	unit	SWP13-AC-EPS	SWP15-AC-EPS
	Rated capacity	Q (kg)	1300	1500
	Power type		Electric
	Type of operation		Pedestrian
	Load center distance	c(mm)	600
	Wheelbase	y(mm)	1222/1272
Wheel	Tire type		PU
	Wheels, number (Driving wheel/Balance wheel/Loading wheel)		1D+2B+4L
Dimensions	Overall height(with handle)	h14 (mm)	1250
	Overall length	l1 (mm)	1670/1720
	Overall width	b1 (mm)	724
	Max lifting travel	h3(mm)	110
	Min fork ground clearance	h13 (mm)	85
	Fork thickness	s(mm)	44
	Fork width	e(mm)	160
	Fork length	L(mm)	1150/1200
	Standard fork ouside width	b5 (mm)	540/685
	Min turning radius(pedal folding/unfolding)	Wa(mm)	1285/1335
	Min Working aisle width pallet lengthwise(800*1200)	Ast (mm)	2055
	Min Working aisle width pallet lengthwise(1000*1200)	Ast (mm)	2145
Performance	Travel speed，laden/unladen	km/h	3.0/3.5
	Lift speed，laden/unladen	mm/s	50/60
	Lowering speed，laden/unladen	mm/s	50/40
	Gradeability，laden/unladen	%	5/7
	Brake		electromagnetic/regenerative braking
Motor	Drive motor	KW	DC0.6
	Lifting motor	KW	DC0.8
	Battery voltage/capacity	V/ Ah	24/70
Weight	Battery weight	kg	48
	N.W（including battery）	kg	284
