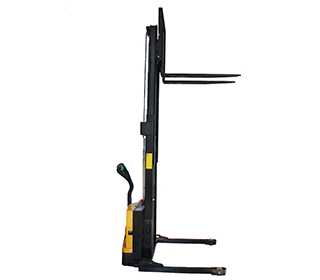

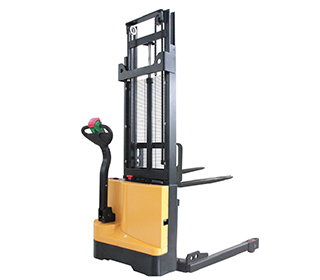

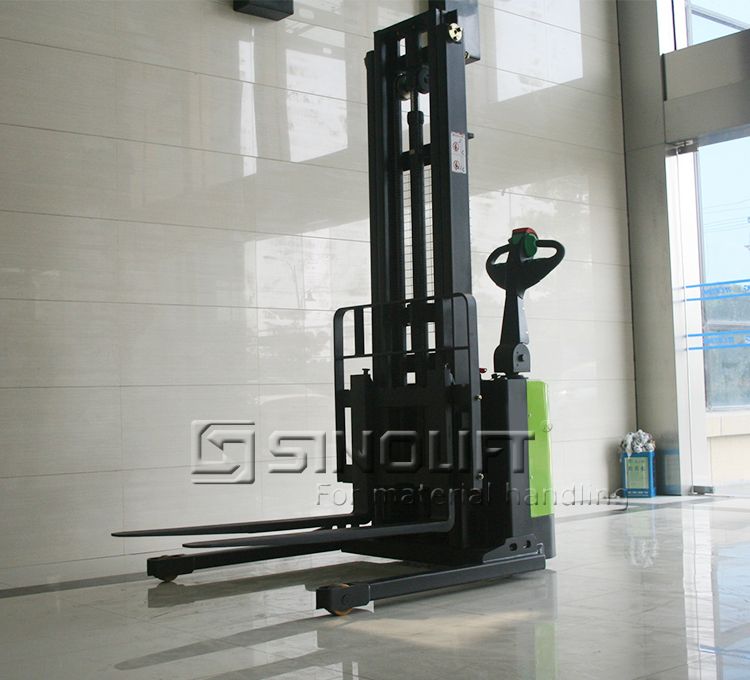

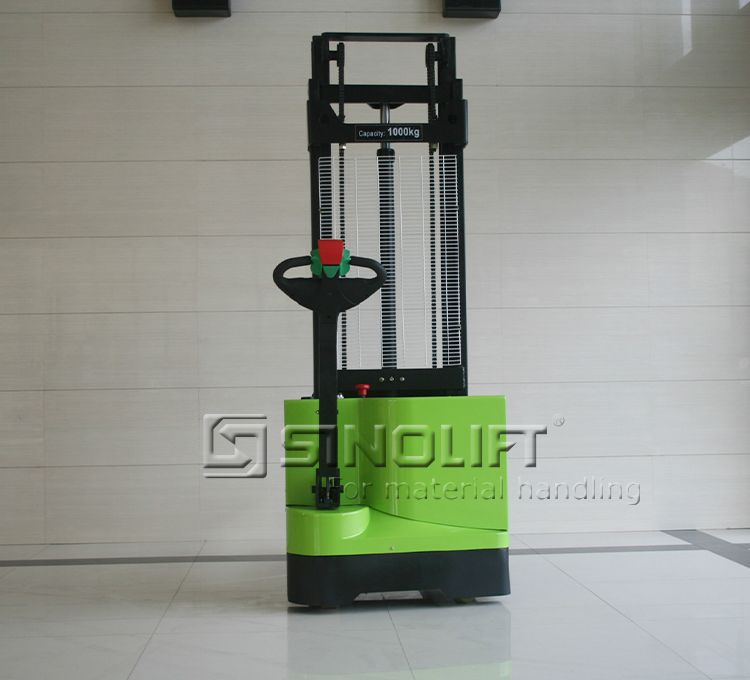

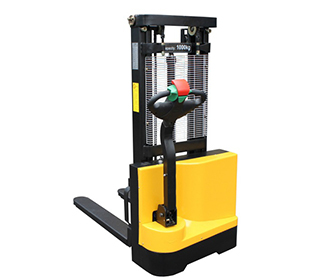

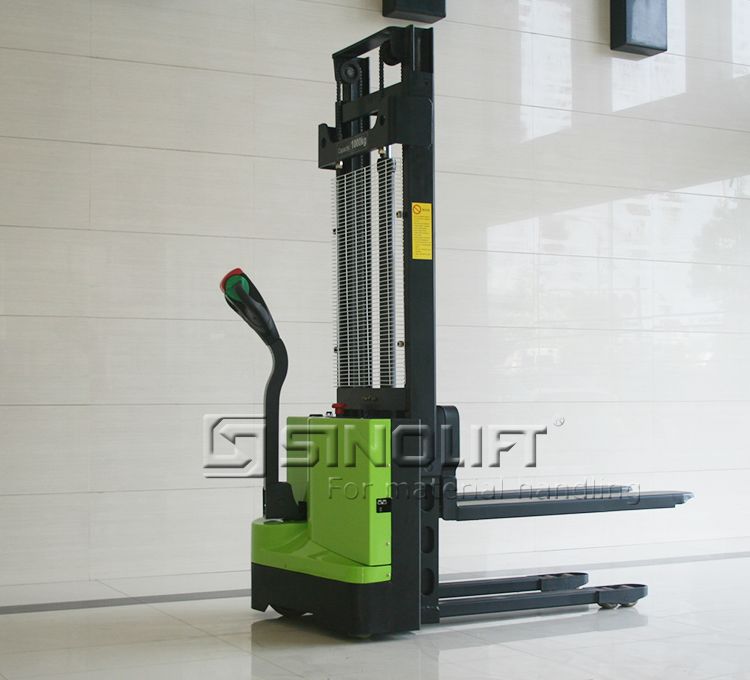

Name:WS Double Door Pillar Pallet Stacker
Model:WS
Product Introduction:1. compact structure,good looking,nimble 2. side place motor,wide vision for operator 3. the handle turns +/-90 degree,the stacker can take a turn at the original place

Features:

1.Price is so low that procurement cost is greatly reduced.

2.Labor-saving: less labor required because of high transportation efficiency.

3.Operation simplified:less effort and high returns can be achieved by our products.

4.Mounted Forklift profile steel mast,different with Manual&Semi WS10S series mast are much stronger and straight when full loading.

5.Liftstar special design supporting leg ensure leg Non-deformation for years operation.

6.Driving controller:Curtis 1212 controller and can be regulated by Curtis Hand set easily.

7.Longer handle design:Very light and easy turning design which is very comfortable.

8.Low profile mast design:Lower height of mast is less than 2000mm/78inch suitable for most of doors.

Model WS10S-16/20/25/30/33 WS10SS-16/20/25/30/33
Vechile Fork over stacker Straddle leg stacker
Capacity kg 1000 1000
Load center mm 600 600
Lifting height mm 1600/2000/2500/3000/3300 1600/2000/2500/3000/3300
Fork length mm 1150 1070
Fork width mm 160 100
Out width of th fork mm 560 Adjustable Max.787mm
Travel speed km/h 2.5laden/3unladen 2.5laden/3unladen
Lift speed m/s 0.07m/s(laden/unladen) 0.07m/s(laden/unladen)
Battery V/Ah (12V/80Ah)*2 (12V/80Ah)*2
