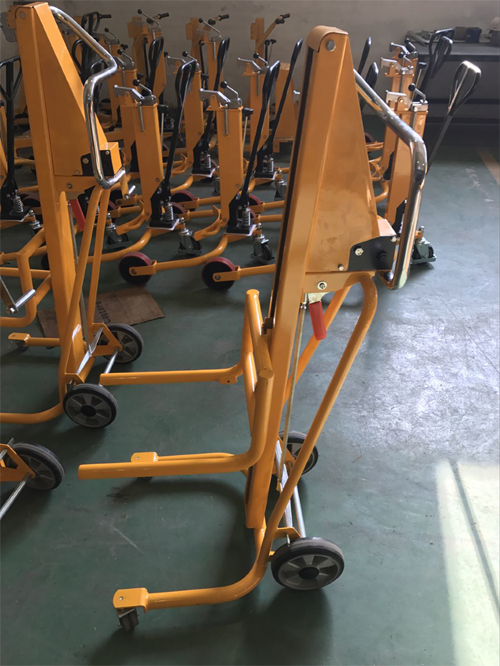

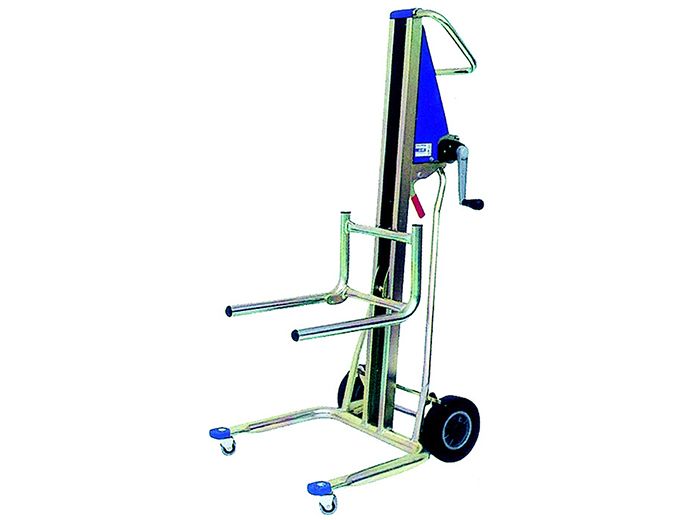

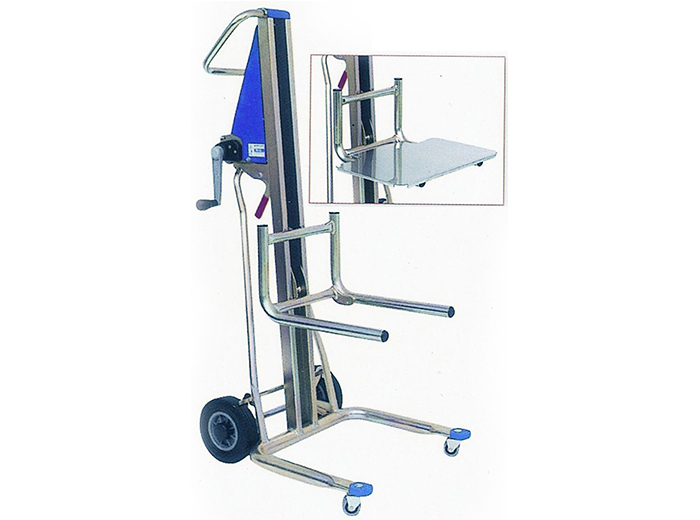

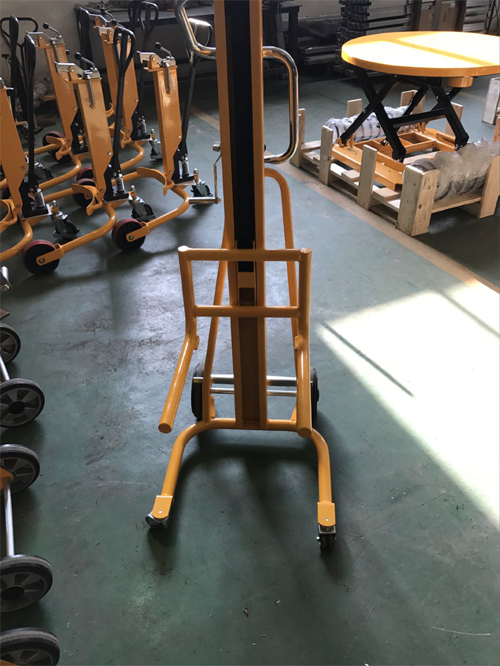

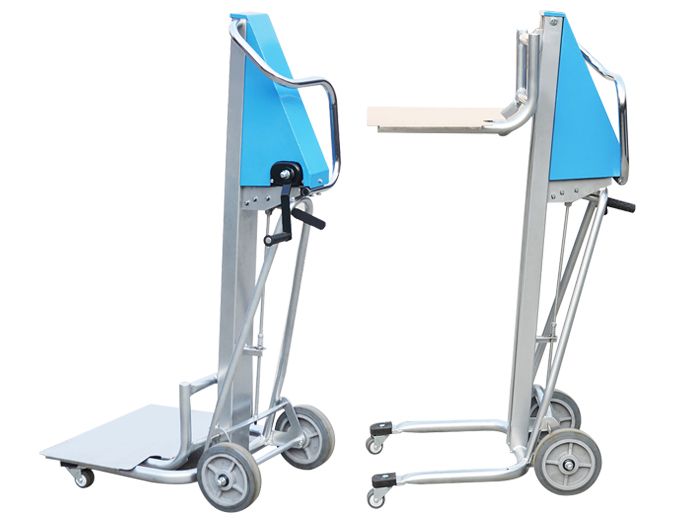

Name:Minini winch stacker
Model:PM120A
Product Introduction:Lightweight design, very easy to operate by hand winch. Suitable for super market, office, warehouse, narrow area, etc Adjustable fork, Platform is option. Low-noise manual winch, excellent for onboard use.

· Lightweight design, very easy to operate by hand winch.

· Suitable for super market, office, warehouse, narrow area, etc

· Adjustable fork, Platform is option.

· Low-noise manual winch, excellent for onboard use.


Model PM120 PM120A
Capacity kg 120 120
Lifting height mm 1050 (1100) 1050 (1100)
Min.fork height mm 95 95
Fork size mm 420x50 420x50
Fork width mm adjustable 345-485mm 450
Leg inner width mm 50mm 50mm
Fork length mm 260 590
Load wheel mm Φ50 X 20 Φ50 X 20
Steering wheel mm Φ200x50 Φ200x140 (Elastic )
Net Weight kg 39 35
