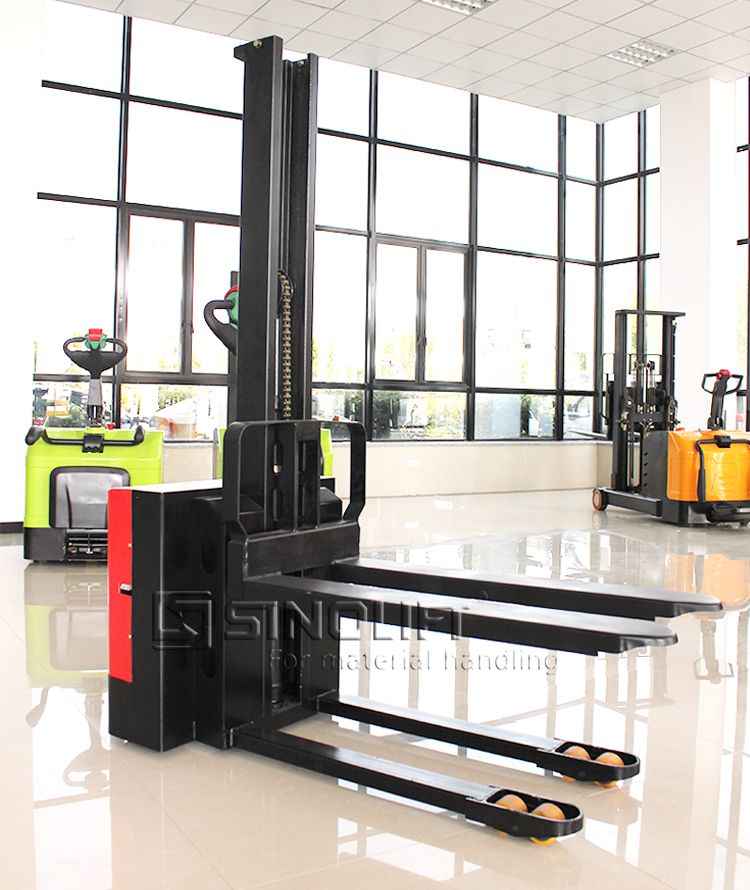

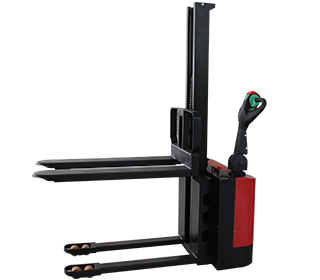

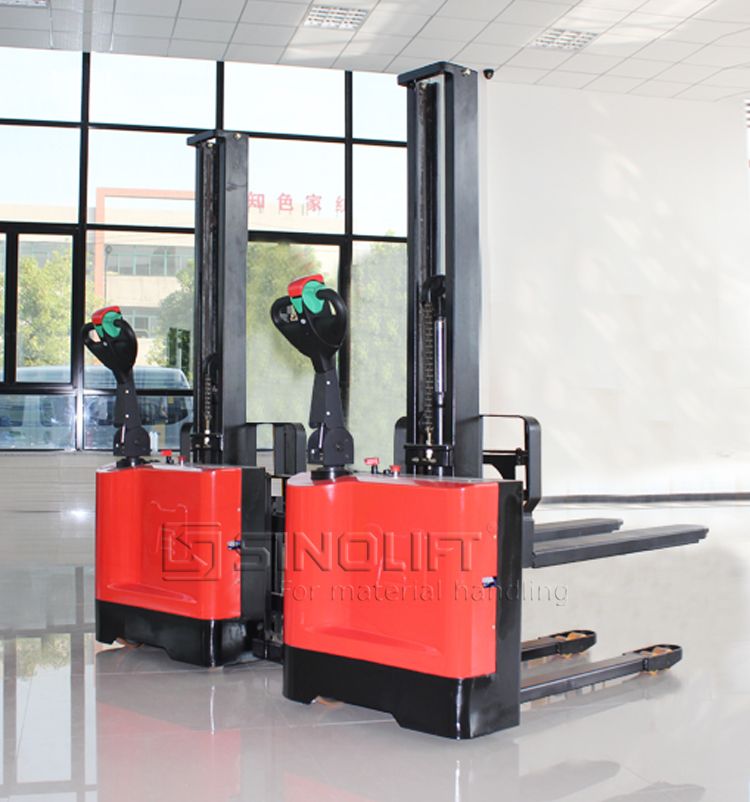

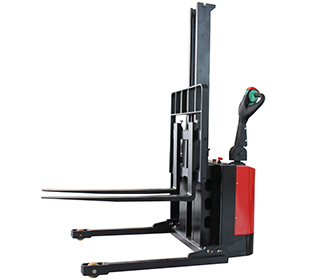

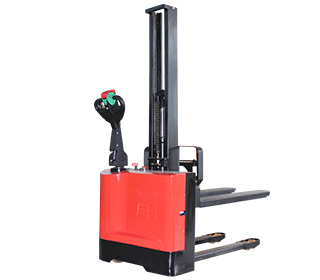

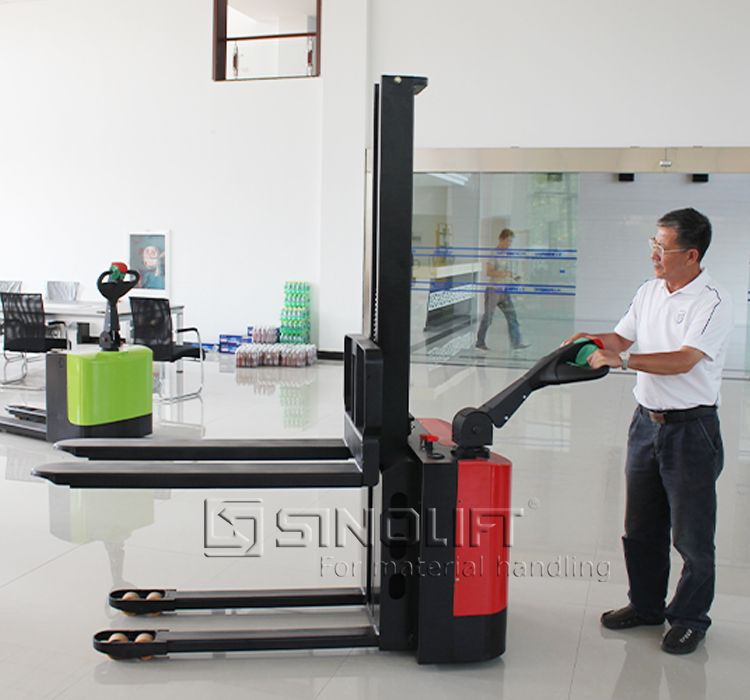

Name:WS-M Single Door Pillar Pallet Stacker
Model:WS-M
Product Introduction:Our electric reach stacker. It's widely used in warehouse, save money, friendly to the environment.

Features:

1. Easy operation in narrow job site.

2. Stacker works continuous from stock yard in factory and warehouse to loading and unloading trucks.

3. SHPC series suits transfer on upper floor which has load limiting, because It has five wheels and is designed light weight.

4. You can control drive and lift easily by centralized control hand device.

5. You can service, because both side covers can be opened.

6. SHPF series equip the fork made forging. It can handle reversible pallet.


Model WS10S-16M WS10SS-16M
Vechile Fork over stacker Straddle leg stacker
Capacity kg 1000 1000
Load center mm 600 600
Lifting height mm 1600 1600
Fork length mm 1150 1070
Fork width mm 160 100
Out width of th fork mm 560 Adjustable Max.787mm
Travel speed km/h 2.5laden/3unladen 2.5laden/3unladen
Lift speed km/h 0.07m/s(laden/unladen) 0.07m/s(laden/unladen)
Battery V/Ah 12V/80Ah*2 12V/80Ah*2
