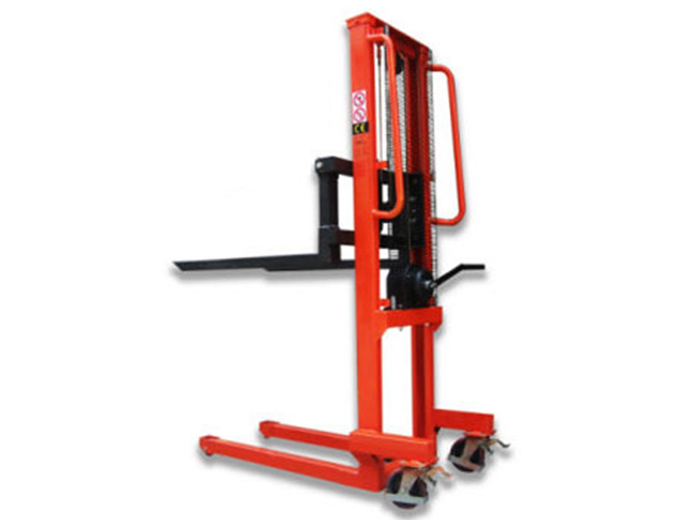

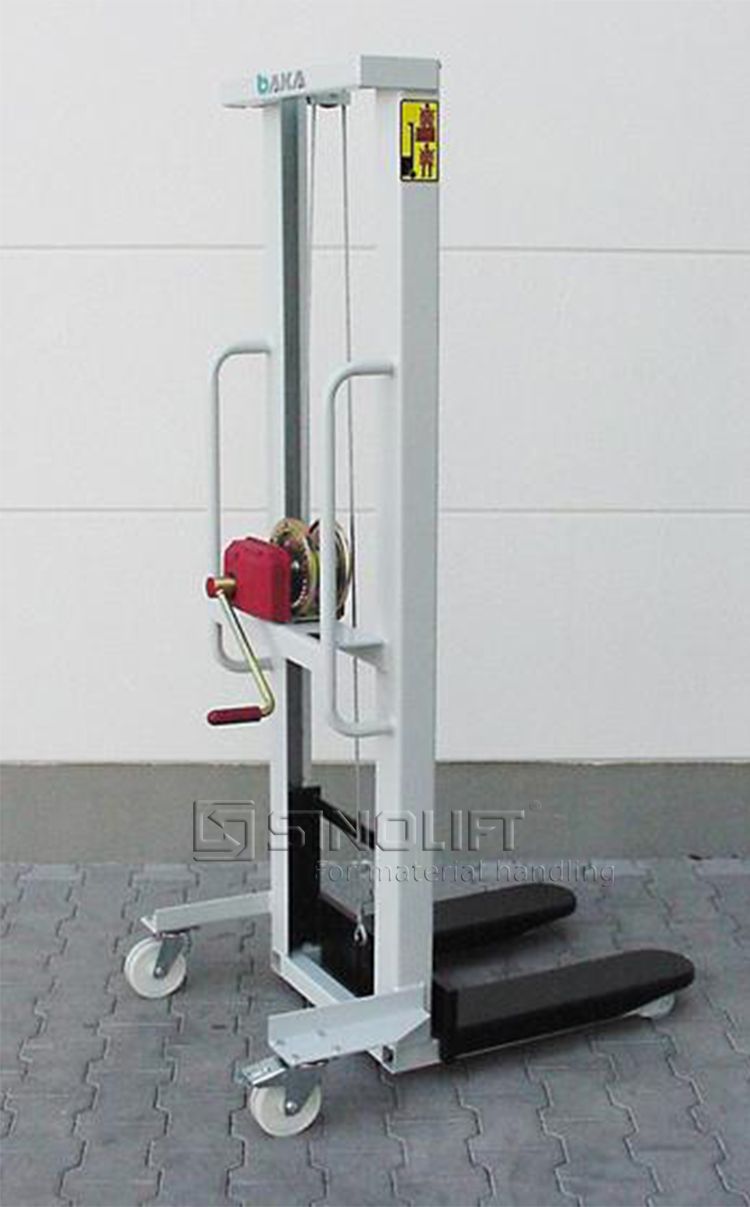

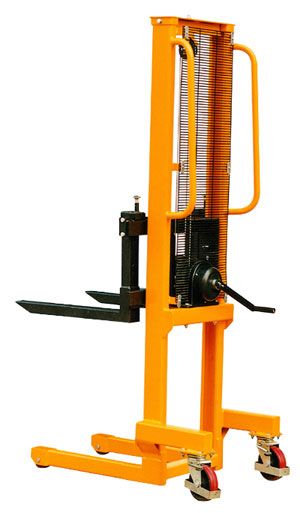

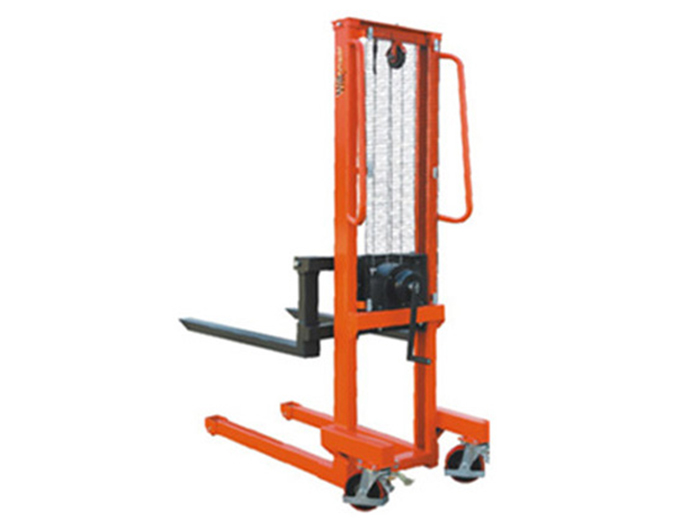

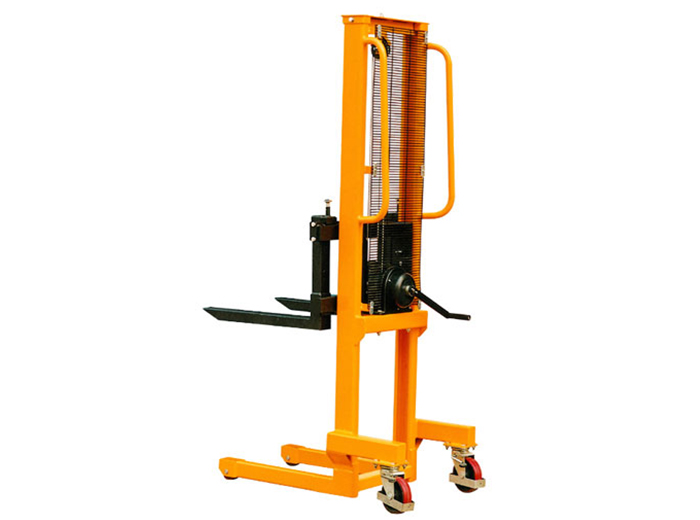

Name:LS Manual winch stacker
Model:LS250 LS500 LS1000
Product Introduction:Compact and service free design.Unique design of winch for easier and safe lifting.Heavy duty “C” section mast.Adjustable fork width from 160mm to 690mm (LS250, LS500).Two parking brakes on steering wheels.Conforms to EN1757-1:2001

Compact and service free design.

Unique design of winch for easier and safe lifting.

Heavy duty “C” section mast.

Adjustable fork width from 160mm to 690mm (LS250, LS500).

Two parking brakes on steering wheels.

Conforms to EN1757-1:2001

Model LS250 LS500 LS1000
Capacity kg 250 500 1000
Load Centre mm 400 500 575
Max.Fork Height mm 1560 1560 1500
Lowered Fork Height mm 90 90 88
Fork Adjustable Width mm 150-690 160-690 540 Fixed
Fork Width mm 60 70 160
Fork Length mm 800 1000 1150
Effort Force to Rated Load N 100 120 100
Lifting Height per Stroke mm 40 22 9.5
Ground Clearance mm 18 18 24
Min.Turning Radius (outside) mm 1075 1075 1250
Front Load Roller mm Ø80x47 Ø80x47 Ø80x94
Steering Wheel mm Ø150x40 Ø150x40 Ø150x50
Overall Size (LxWxH) mm 1325x725x2030 1325x725x2030 1600x725x1930
Net Weight kg 140 146 182
