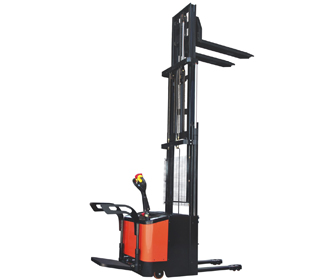

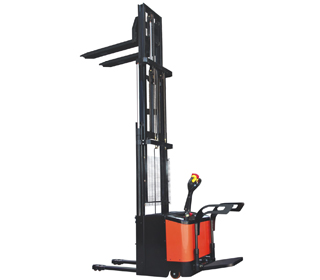

Name:FSEM Full Electric Pallet Stacker (triple mast)
Model:FSEM
Product Introduction:The maximum lift of the three door frames is 5 meters. The rated load is 1.5 tons. The lifting height is 3.5m, 4 m, 4.5m and 5m.The whole vehicle is equipped with 3 hydraulic oil cylinders, fully free to lift the cargo fork of the door frame, with stable structural performance, which is a good choice for the cost performance of storage stacking forklift.

Features:

1. Stand-on stacker is the ideal all round truck for loading and unloading from ground level, internal transfer, stacking and order picking combined with stacking.

2. These compact pedestrian stackers are highly versatile, providing low cost solutions for medium height stacking applications, short, medium and long distance travel, unloading and occasional order picking.

3. With the fastest travel, lift and lowering speed, excellent stability and highly compact, UMHT stand-on stackers are extremely space efficient and able to work in very small stacking aisles as the operator is housed within the truck. They also provide the operator with better performance and a safer working environment.

4. More powerful: Large battery capacity enables these powerful vehicles to work easily through a shift, with ergonomically designed controls for maximum operator comfort and specially shaped narrow forks for precise and rapid pallet entry.

5. More safety: Robust construction includes metal sides to help absorb knocks, while a modular format enables components to be shared across the range for economy and rapid availability. The five wheel design of the TL/FL makes for excellent stability and high residual capacities. Intelligent electronics add to truck control and diagnostics, while the low chassis allows the operator the best view of the forks at all times

Model Number FSEM15-45
Rated Capacity (Q) kg 1500
Load Center (C) mm 600
Max.Fork Height (H3) mm 5000
Max.Machine Height (H4) mm 5560
Handle Height (H2) mm 1450~1460
Fork Size (1×n) mm 1150×180
Fork Width (E) mm 680
Min.Turning Radius (Wa) mm 1900
Wheel Base (Y) mm 1500
Front-Wheel Distance (X) mm 370
Max.Speed Without Load km/h 4.5~6
Max.Speed With Load km/h 4~5
Max.Climbing Capacity % 8~10
Driving Motor v/kw 24/1.5
Lifting Motor v/kw 24/2~3
Anerold battery v/Ah 12×2/240
Charger V/A 24/20-30
Overall Length mm 2200
Overall Width mm 890
Overall Height mm 2250
Overall Net Weight kg 1400
