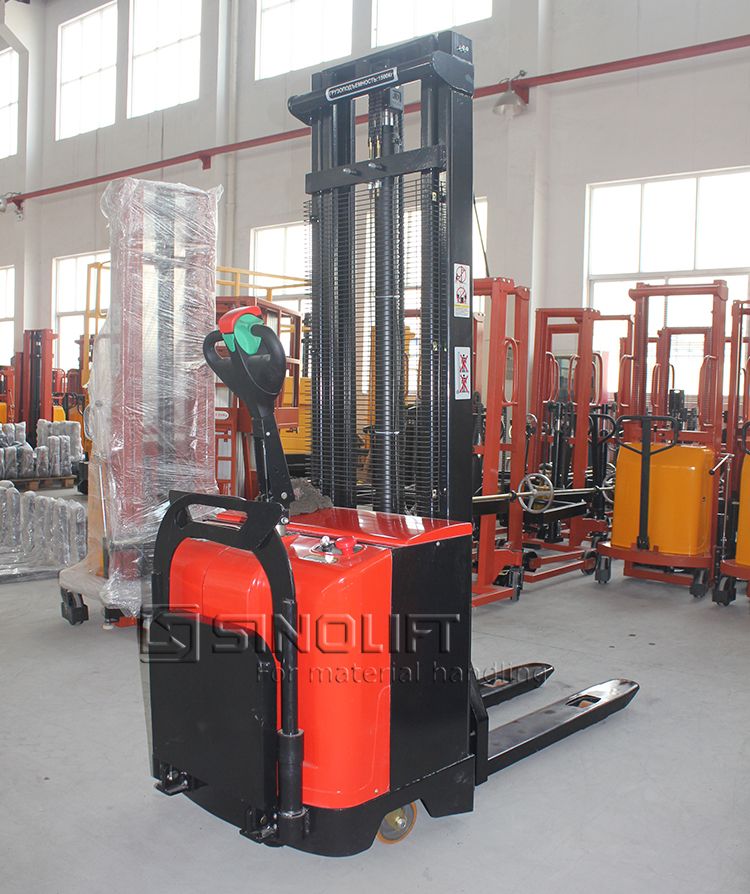

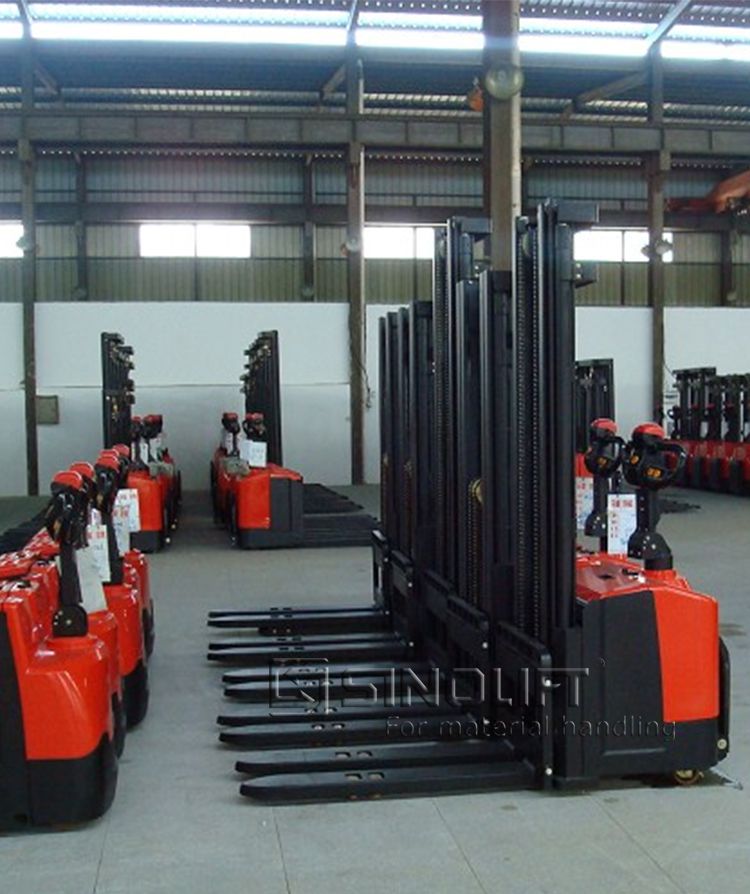

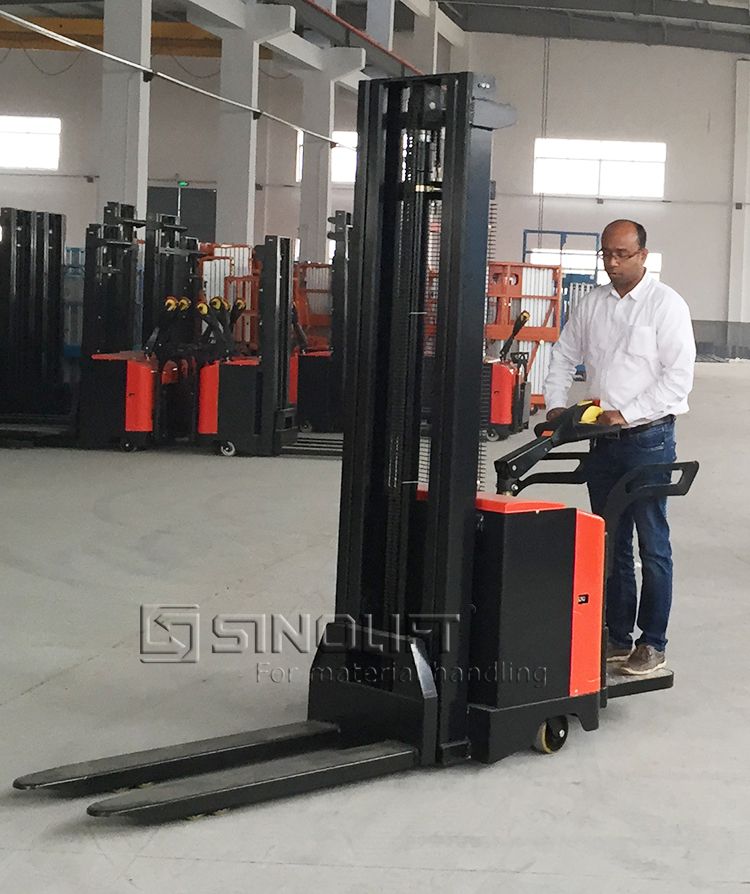

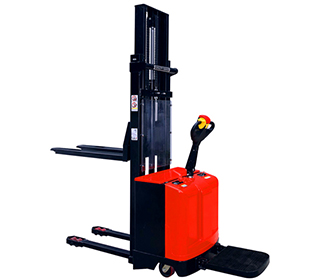

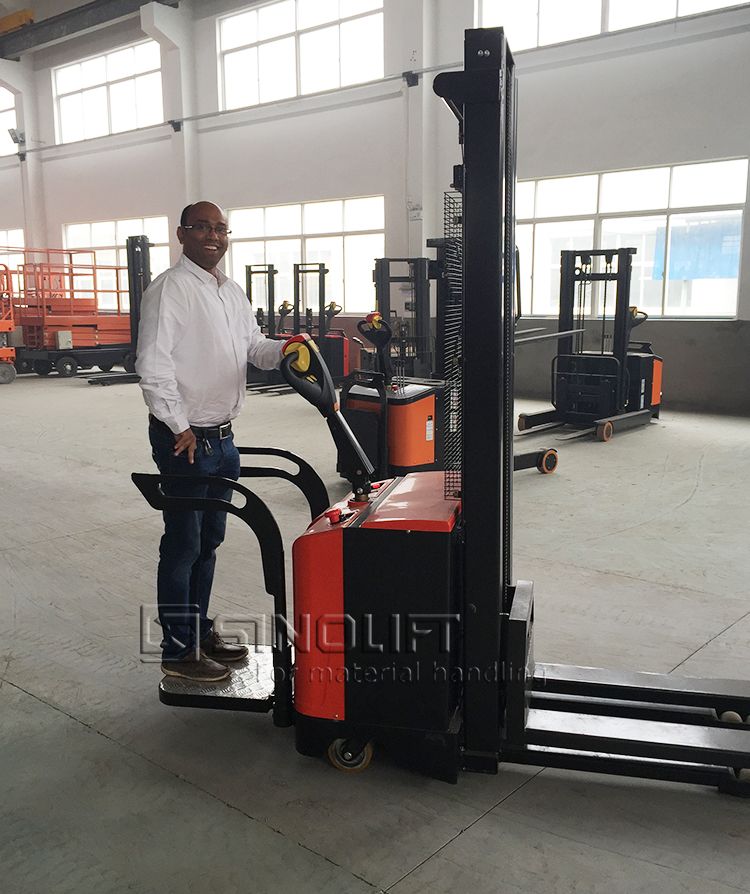

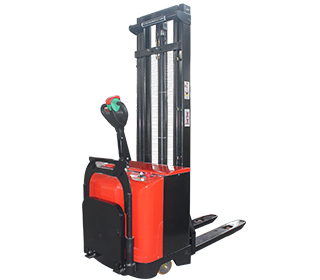

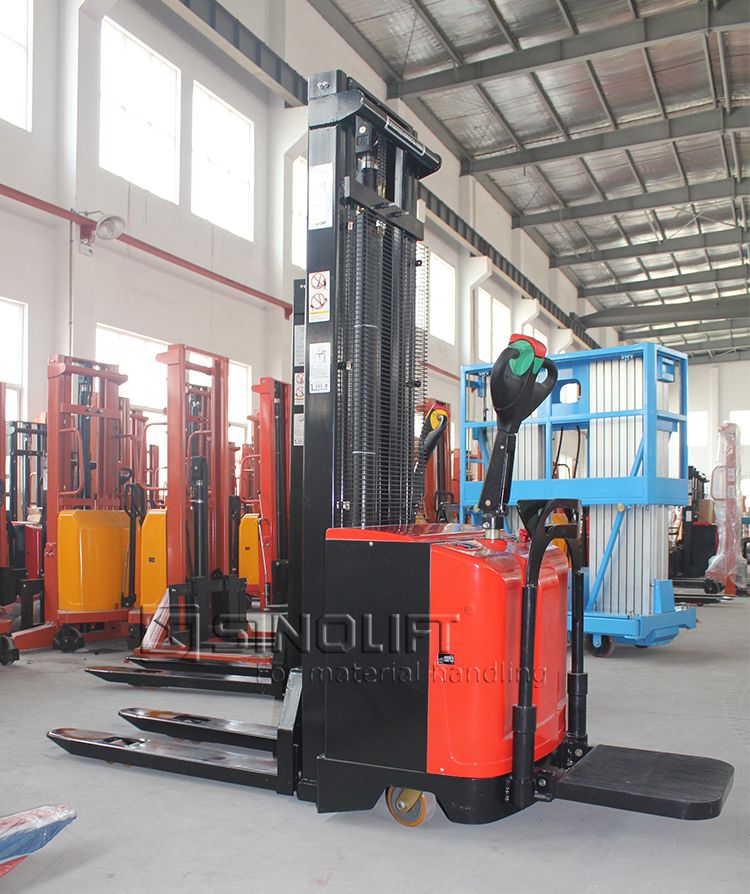

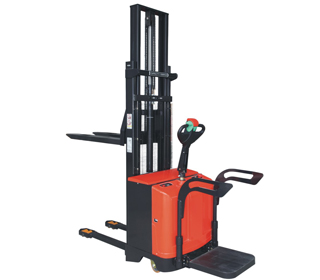

Name:FSEM Full Electric Pallet Stacker (double mast)
Model:FSEM
Product Introduction:Electric walking, electric lifting Suitable for storage, storage and storage of pallets on shelves and short distance movement Import electrical control and hydraulic units Strong structure, good stability, safe and portable control Low noise, no pollution, low failure rate, easy maintenance

Features:

1. Stand-on stacker is the ideal all round truck for loading and unloading from ground level, internal transfer, stacking and order picking combined with stacking.

2. These compact pedestrian stackers are highly versatile, providing low cost solutions for medium height stacking applications, short, medium and long distance travel, unloading and occasional order picking.

3. With the fastest travel, lift and lowering speed, excellent stability and highly compact, UMHT stand-on stackers are extremely space efficient and able to work in very small stacking aisles as the operator is housed within the truck. They also provide the operator with better performance and a safer working environment.

4. More powerful: Large battery capacity enables these powerful vehicles to work easily through a shift, with ergonomically designed controls for maximum operator comfort and specially shaped narrow forks for precise and rapid pallet entry.

5. More safety: Robust construction includes metal sides to help absorb knocks, while a modular format enables components to be shared across the range for economy and rapid availability. The five wheel design of the TL/FL makes for excellent stability and high residual capacities. Intelligent electronics add to truck control and diagnostics, while the low chassis allows the operator the best view of the forks at all times

Model Number FSEM10-20 FSEM10-25 FSEM10-30 FSEM10-35 FSEM15-20 FSEM15-25 FSEM15-30 FSEM15-35 FSEM20-20
Rated Capacity Q kg 1000 1500 2000
Load Center (C) mm 400
Max.Fork Height (H3) mm 2000 2500 3000 3500 2000 2500 3000 3500 4000
Max.Machine Height (H4) mm 2560 3060 3560 4060 2560 3060 3560 4060 2560
Handle Height (H2) mm 1450~1460
Fork Size (1×n) mm 1150×160
Fork Width (E) mm 570
Min.Turning Radius (Wa) mm 1620
Wheel Base (Y) mm 1340
Front-Wheel Distance (X) mm 339
Max.Speed Without Load km/h 4.5~6
Max.Speed With Load km/h 4~5
Max.Climbing Capacity % 8~10
Driving Motor v/kw 24/1.2
Lifting Motor v/kw 24/2~3
Anerold battery v/Ah 12×2/210
Charger V/A 24/20-30
Overall Length mm 2000
Overall Width mm 860
Overall Height mm 1580 1830 2080 2330 1580 1830 2080 2330 1580
Overall Net Weight kg 650 665 680 695 680 695 710 725 690
