Home >> Products >> NP25 Hand Pallet Truck

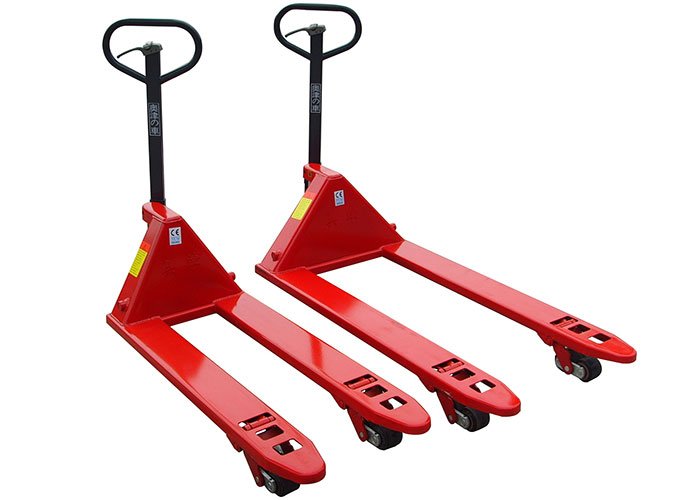

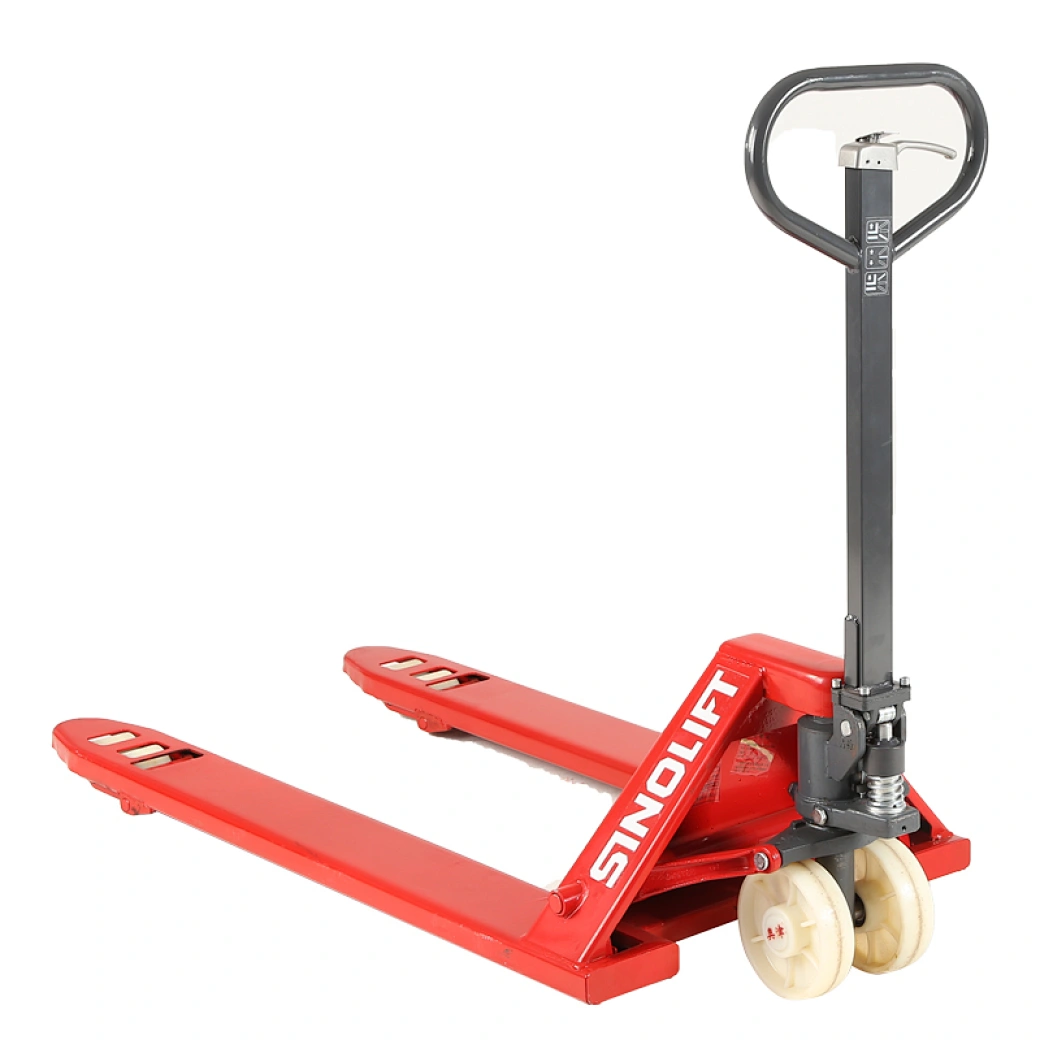

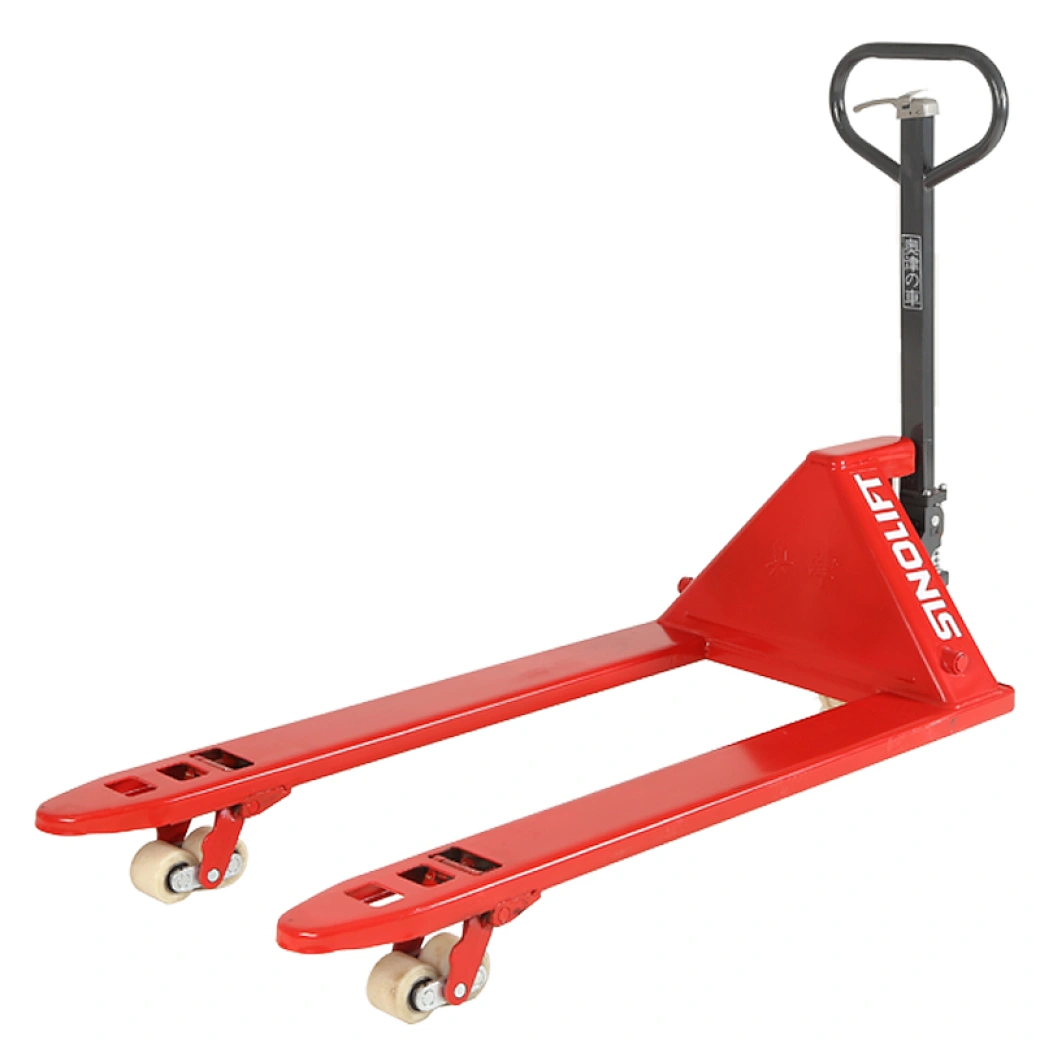

Name：NP25 Hand Pallet Truck
Model：NP25
Product Introduction：NP25 Hand Pallet Truck

Characteristic:
• Simple and Easy Operation
Lifting movement via collapsible foot pedal
Sensitive lowering through sinking valve
Hand push drive
Overload protection via pressure valve
• Safe Operation and secure Working Conditions
Stable chassis with 2 frame rollers and 2 steering rollers.
• Long Service Lift.
Robust construction.
Hard chromium plated frame.
Hardened chromium plated ram.
• Effortless Movement.
Ball bearing rollers.
Polyurethane rollers.

SPECIFICATIONS:
1) Rated capacity (kg): 1500, 2000, 2500, 3000,5000
2) Lifting height (mm): 80-200mm, 65-165mm, 73-175mm, 75-185mm
3) Option: Variety size of Polyurethane, Nylon and Rubber wheel, Single or Tandem wheel
4) Stainless steel or Galvanized type.

Model	Capacity	Fork Width	Fork Length	Min. Height	Max. Height	Steer wheel	Load Wheel	Weight
	kg/lbs	mm/inch	mm/inch	mm/inch	mm/inch	(mm)	(mm)	kg/lbs
		W1	L1	H2	H1	A	B
NP15-48	1500/3300	460/18"	810/32"	80/3.15"	200/7.9"	φ180*62	φ78*100 (single)	66/145
NP15-49		460/18"	980/38.5"					70/154
NP15-58		520/20.5"	810/32"					66/145
NP15-59		520/20.5"	980/38.5"					70/154
NP15-510		520/20.5"	1070/42"					71/156
NP15-511		520/20.5"	1150/43.3"					73/160
NP15-610		600/23.5"	1070/42"					77/169
NP15-76		685/48"	650/25.6"					68/149
NP15-710		685/27"	1070/42"					76/167
NP15-712		685/27"	1220/48"					79/173
NP25-58	2500/5500	520/20.5"	810/32"	80/3.15"	200/7.9"	φ180*62	φ78100 (single) or φ7870 (tandem)	67/147
NP25-59		685/27"	980/38.5"					71/156
NP25-510		685/27"	1070/42"					72/158
NP25-511		520/20.5"	1150/43.3"					75/165
NP25-712		685/27"	1220/48"					80/176
NP30-510	3000/6600	520/20.5"	1070/42"	80/3.15"	200/7.9"	φ180*62	φ78100 (single) or φ7870 (tandem)	84/184
NP30-511		520/20.5"	1150/43.3"					90/198
NP30-712		685/27"	1220/48"					100/220
Remark
1, 2000kg/4400lbs,3500kg/7700lbs,5000kg/11000lbs capacity are also available,
2,Hand brake,food brake and parking brake is optional
3,Option: Polyurethane,Nylon or Rubber material wheels, Single load wheel or tandem load wheel;
4,Spercial size of width and length can be made according to customer's requirement.
5,All specifications and figures are subject to change withou notice for improvement.
