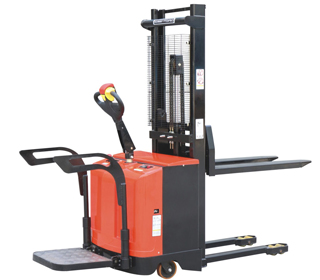

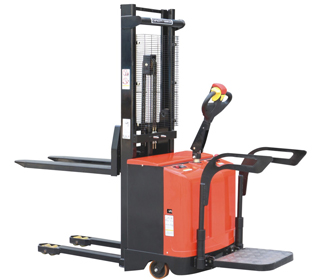

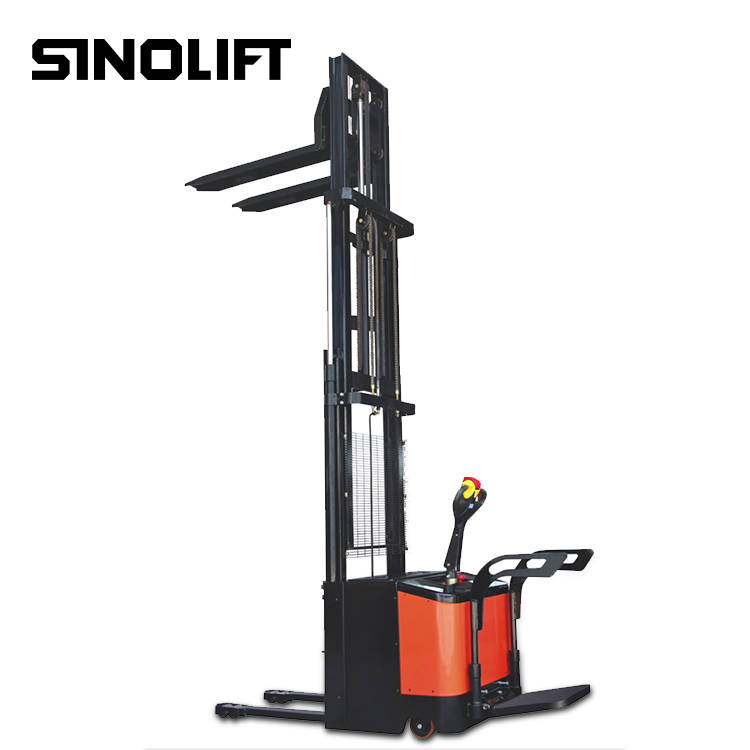

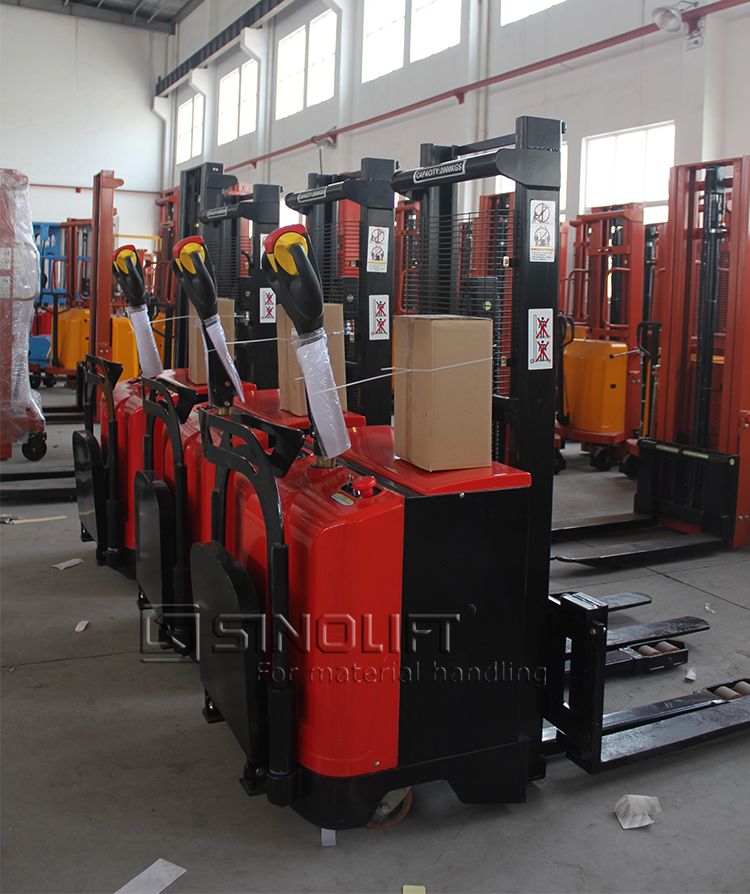

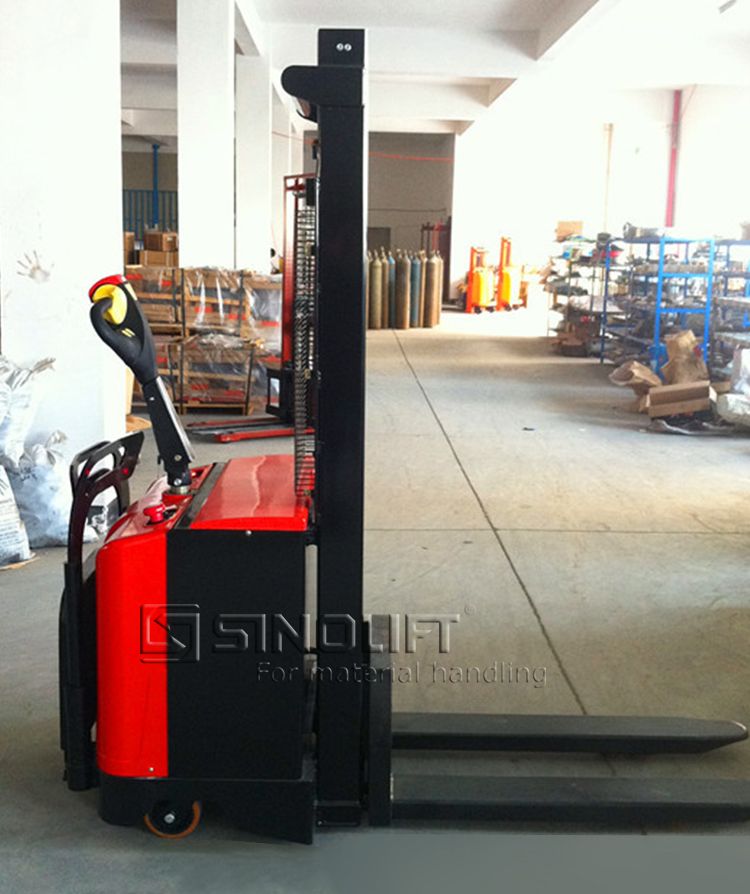

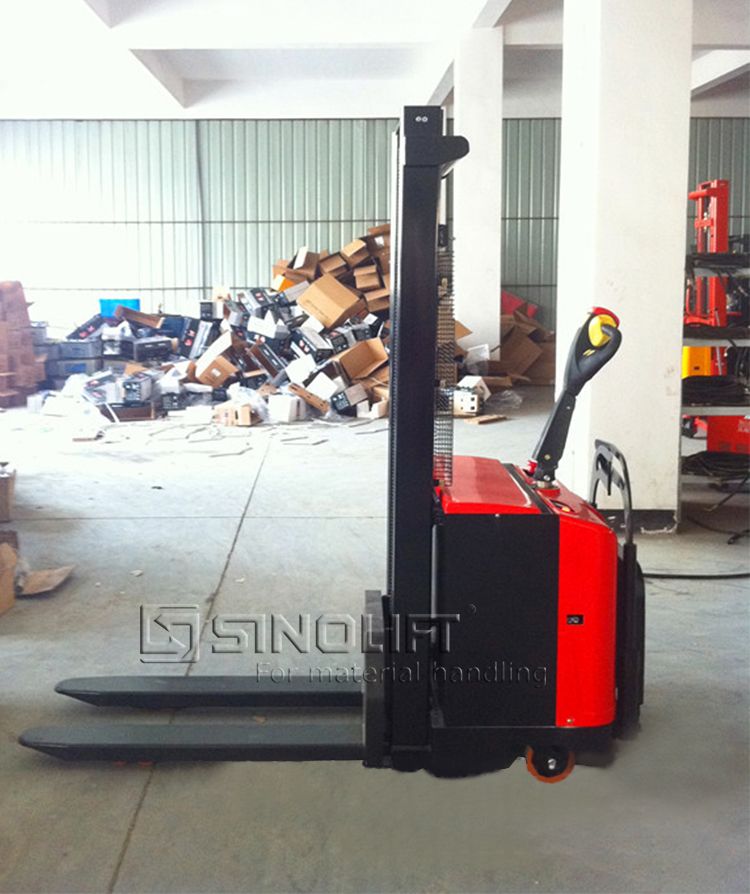

Name:FSEM Full Electric Pallet Stacker (single mast)
Model:FSEM
Product Introduction:Electric walking, electric lifting. Suitable for storage, storage and storage of pallets on shelves and short distance movement. Import electrical control and hydraulic units. Strong structure, good stability, safe and portable control. Low noise, no pollution, low failure rate, easy maintenance.

Features:

1. Stand-on stacker is the ideal all round truck for loading and unloading from ground level, internal transfer, stacking and order picking combined with stacking.

2. These compact pedestrian stackers are highly versatile, providing low cost solutions for medium height stacking applications, short, medium and long distance travel, unloading and occasional order picking.

3. With the fastest travel, lift and lowering speed, excellent stability and highly compact, UMHT stand-on stackers are extremely space efficient and able to work in very small stacking aisles as the operator is housed within the truck. They also provide the operator with better performance and a safer working environment.

4. More powerful: Large battery capacity enables these powerful vehicles to work easily through a shift, with ergonomically designed controls for maximum operator comfort and specially shaped narrow forks for precise and rapid pallet entry.

5. More safety: Robust construction includes metal sides to help absorb knocks, while a modular format enables components to be shared across the range for economy and rapid availability. The five wheel design of the TL/FL makes for excellent stability and high residual capacities. Intelligent electronics add to truck control and diagnostics, while the low chassis allows the operator the best view of the forks at all times

Model FSEM10-16 FSEM15-16 FSEM20-16
Rated Load Capacity                    Q kg 1000 1000 1000
Load Center                                    C mm 400 400 400
Max. Fork Height                            H3 mm 1600 1600 1600
Max. Machine Height                    H4 mm 2080 2080 2080
Handle Height                               H2 mm 1450-1460 1450-1460 1450-1460
Fork Size                                       l X n mm 1150x160 1150x160 1150x160
Fork Outside Width                      E mm 570/680 570/680 570/680
Min. Turning Radius                   Wa mm 1620 1620 1620
Wheel Base                                  Y mm 1340 1340 1340
Front Wheel Distance                 X mm 339 339 339
Max. Travelling Speed (Unladen) km/h 4.5-6 4.5-6 4.5-6
Max. Travelling Speed (Laden) km/h 4~5 4~5 4~5
Max. Climbing Capacity % 8~10 8~10 8~10
Driving Motor V/kw 24/1.2 24/1.2 24/1.2
Lifting Motor V/kw 2024-2-3 2024-2-3 2024-2-3
Battery V/ah 24/210 24/210 24/210
Charger V/A 24/30 24/30 24/30
Overall Length                              L mm 2000 2000 2000
Overall Width                               W mm 860 860 860
Overall Height                             H1 mm 2080 2080 2080
Service Weight kg 570 600 620
