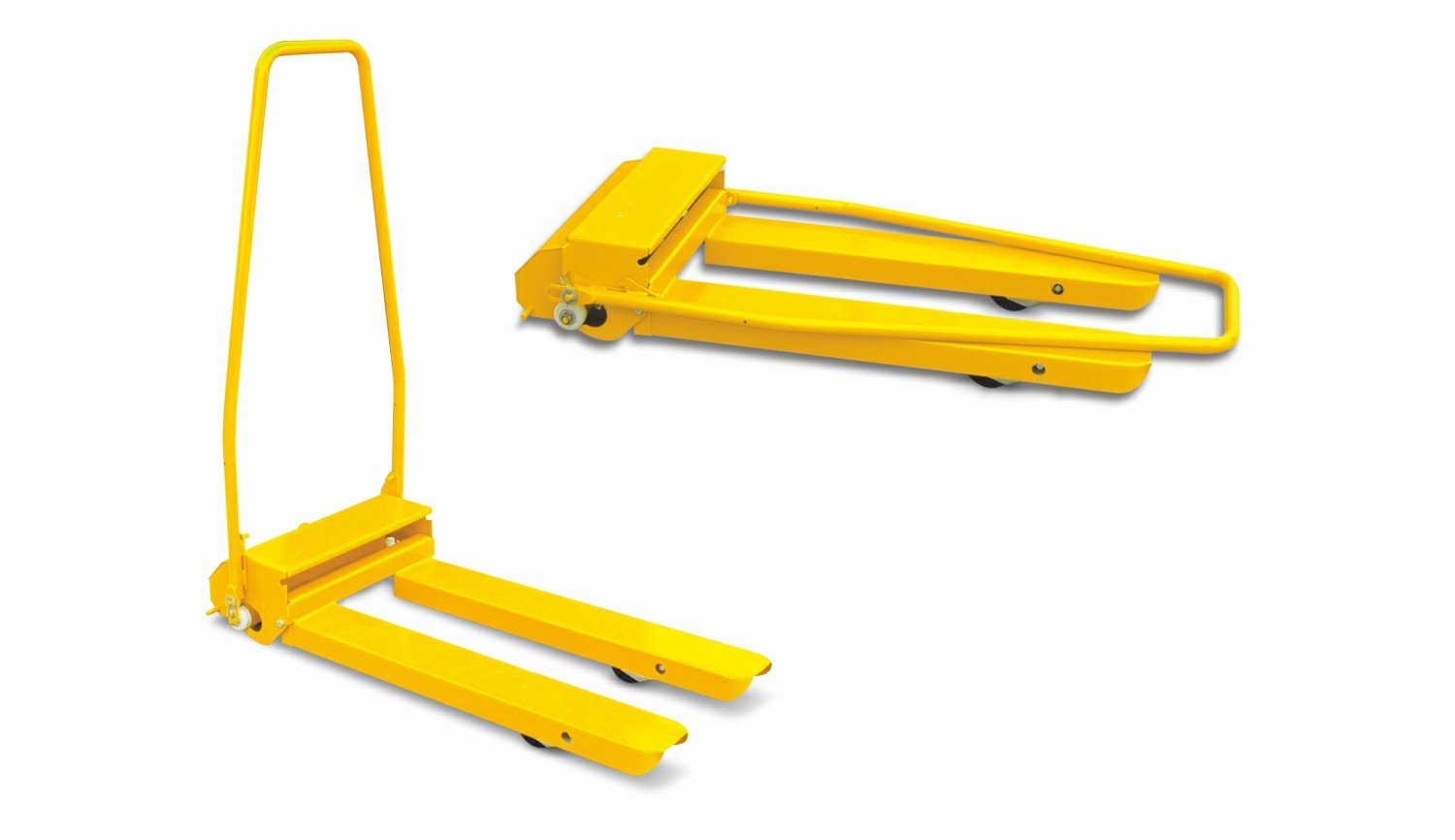

Name：MX0608 MX0610 Mechanical Pallet Truck
Model：MX0608 MX0610
Product Introduction：This mechanical mini pallet truck is designed for light use. Its compact size and low weight allow it to be easily transported as well as being very manoeuvrable thanks to its minimal turning radius. Ideal for use in the back of a vehicle.

1. To replace hydraulic pallet truck when under 300kg load.
2. Pallets are simply lifted by pulling the handle backwards (the leverage principle).
3. Saves a lot of time as no pumping is required.
4. Extremely low weight, about 25kg.
5. Thanks to the low weight, the mechanic lifter can easily be carried to other floors, put into a truck or a car.

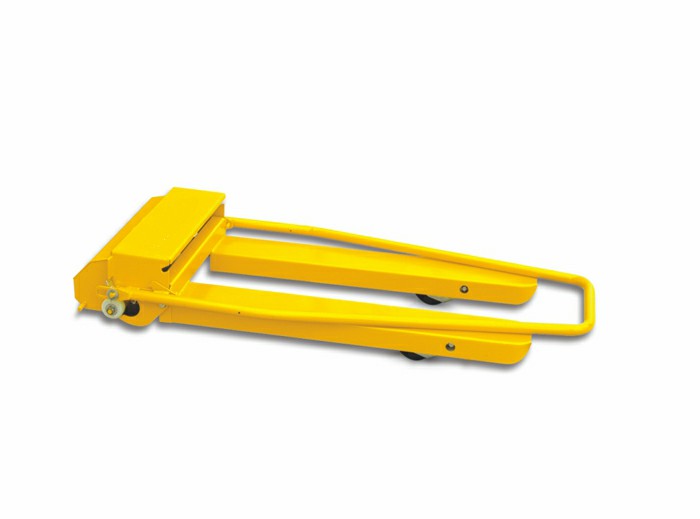

6. Foldable.when not in use, it can be hung up on a hook on the wall.
7. No hydraulic pump to repair, no oil can leak out no seals to replace.
8. Ideal for grocery stores, all kind of small stores, pharmaceutical industry, drugstores, offices, schools, hospitals etc.

Model		MX0608	MX0610
Capacity	(kg)	300	300
Lift Height	(mm)	145	145
Lowered Height	(mm)	85	85
Fork Width Outside	(mm)	420	420
Fork Length	(mm)	800	1100
Width of Single Fork	(mm)	120	120
Total Height	(mm)	200/1160	200/1160
Steer Wheel	Dia.xWid (mm)	Ø80x40	Ø80x40
Load Wheel	Dia.xWid (mm)	Ø80x40	Ø80x40
Overall Size	LxW (mm)	1030x420	1330x420
Net Weight	(kg)	25	30
