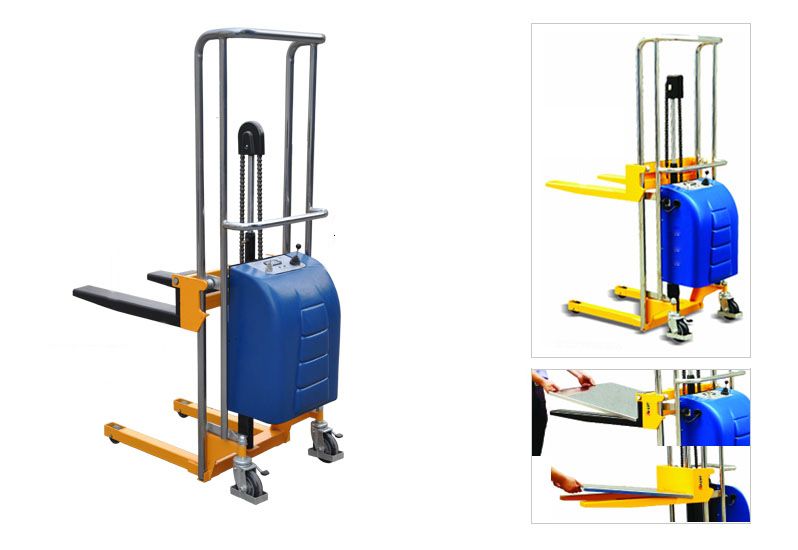

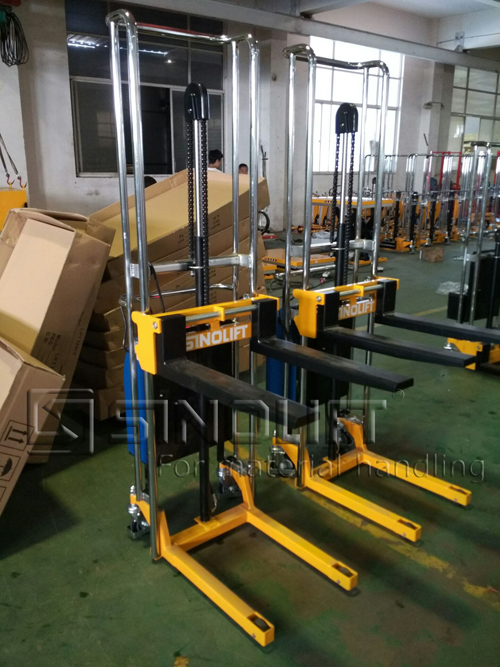

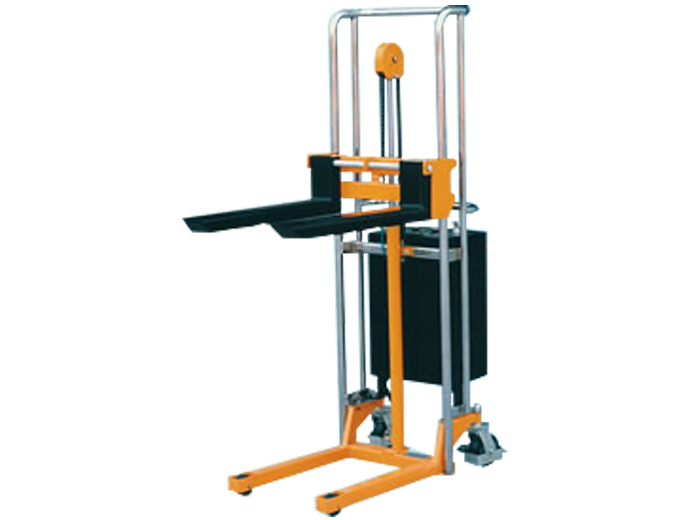

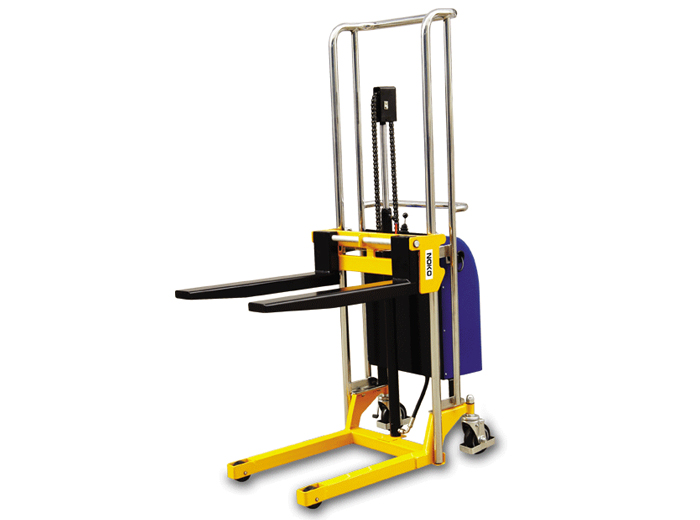

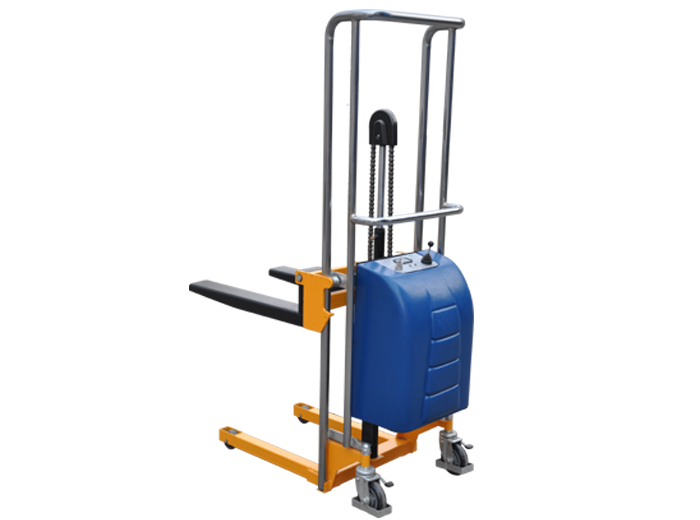

Name:EPJ Semi-electric staker with adjustable forks
Model:EPJ series
Product Introduction:Compact, lightweight and manoeuvrable Removable platform plate & forks as standard Smooth positive efficient operation Smart Chromium plated frame Powder coated steels parts Smooth running braked steering wheels CE Marked Further details on request

EPJ Semi Electric Work Positioner range has been designed, developed and built to give long service with minimum maintenance required and assist with all manner of manual handling within industry and commerce. A sound long term investment!

Ideal where frequency of lift in manual handling applications needs to be considered, EL Semi Electric MiniStacker range are easy to use and are extremely manoeuvrable thanks to their light but strong construction.

The unit is mounted on 2 swivel castors allowing the unit to turn easily in confined areas. Lift is by means of a lever acting upon an electro hydraulic power pack .A 12 volt battery and a built in charger are supplied


400 kg capacity

80 mm minimum fork height

800 watt motor

12V/80Ah battery

Compact, lightweight and manoeuvrable

Removable platform plate & forks as standard

Smooth positive efficient operation

Smart Chromium plated frame

Powder coated steels parts

Smooth running braked steering wheels

CE Marked

Further details on request


Model (Adjustable Fork) EPJ4120A EPJ4150A EPJ4180A
Capacity (kg) 400 400 200~400
Max.Fork Height (mm) 1200 1500 1800
Min.Fork Height (mm) 85 85 85
Fork Size (mm) 650x100 650x100 650x100
Adjustable Fork Width (mm) 235-500 235-500 235-500
Load Roller (mm) Ф75 Ф75 Ф75
Steering Wheel (mm) Ф125 Ф125 Ф125
Power Unit (KW) 0.8 0.8 0.8
Battery (V/Ah) 12/60 12/60 12/60
Overall Height (mm) 1410 1710 2010
Overall Width (mm) 590 590 590
Overall Length (mm) 1100 1100 1100
Net Weight (kg) 108 110 116
