Home >> Products >> CPD-SX Series Counterweight Stacker

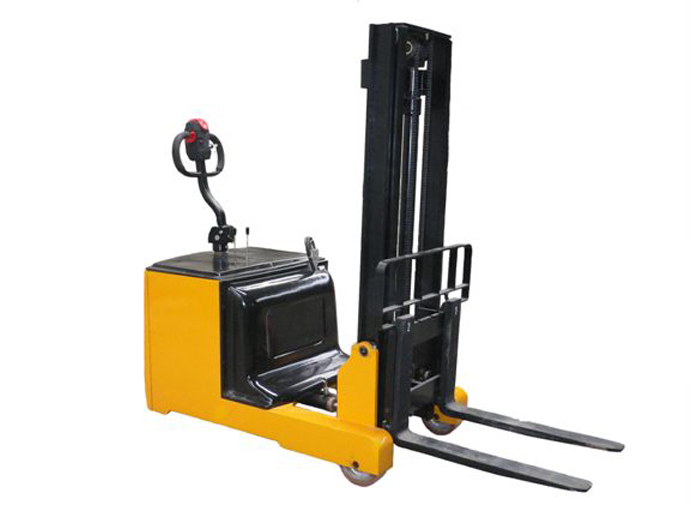

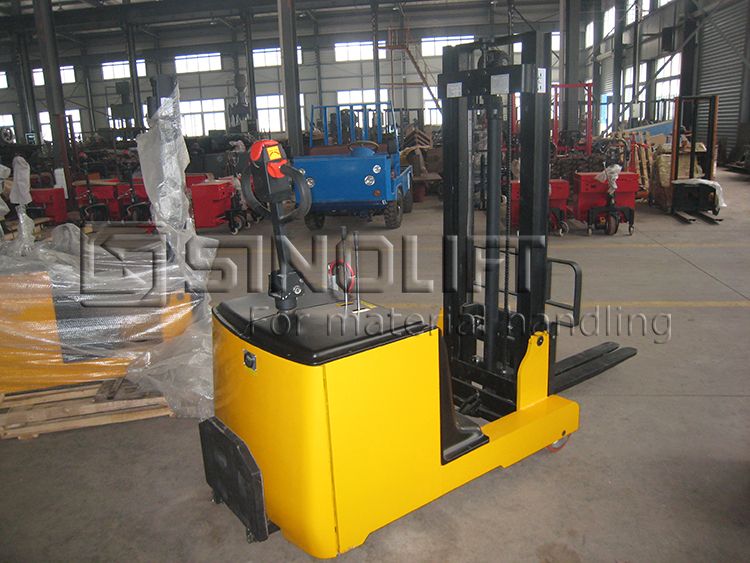

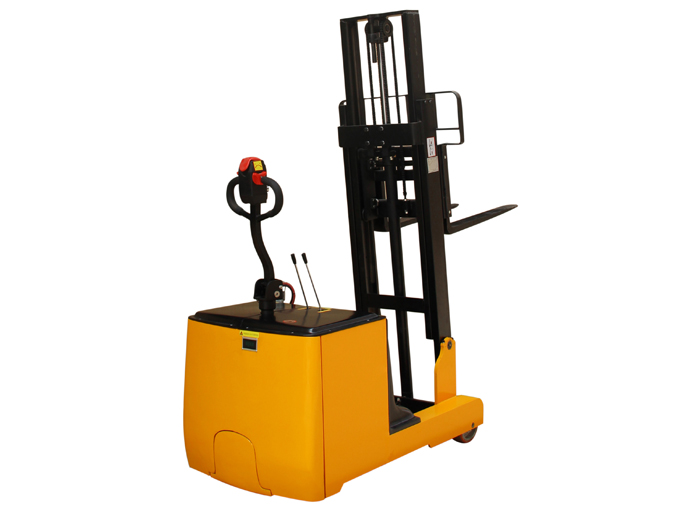

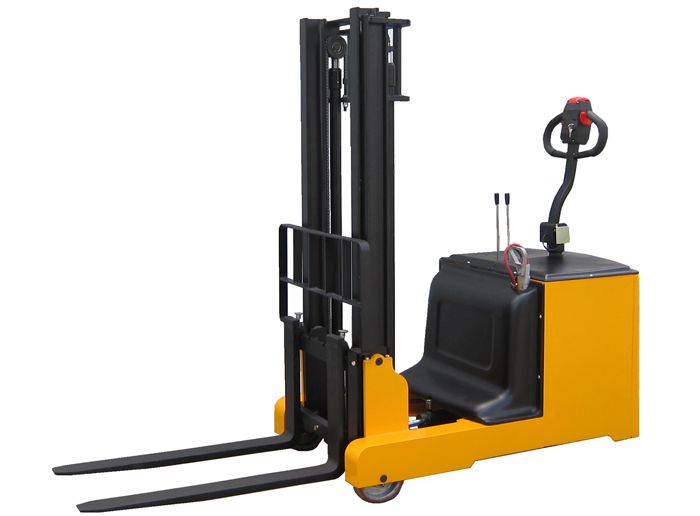

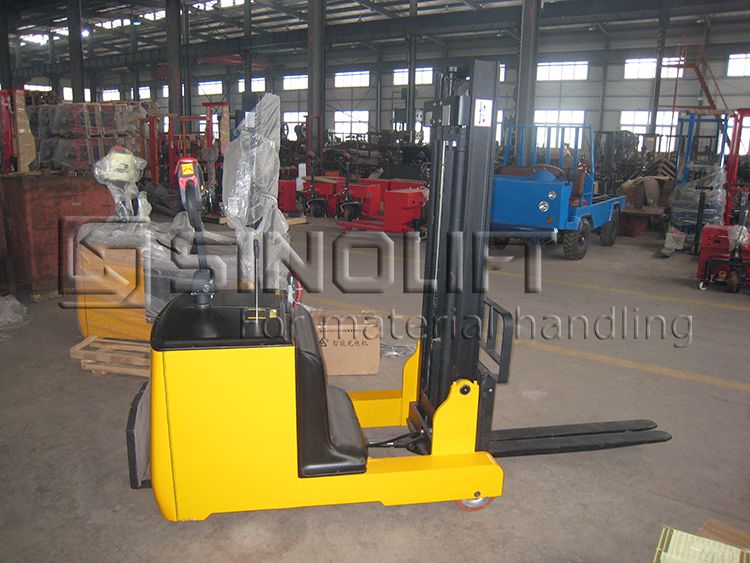

Name：CPD-SX Series Counterweight Stacker
Model：CPD-SX
Product Introduction：1.The non-straddle lift is ideal for feeding machinery or lifting to docks and mezzanines where base legs could interfere. 2.Heavy-duty mast can been adjusted to suitable degree. 3.Forged fork for easy access. 4.Powerful drive and power unit made in Europe. 5.Top quality electronic control system from Curtis. 6.Low noise, no pollution, and high reliability with free lifting function 7.Conforms to EN1757-1:2000,EN1726.

1.The non-straddle lift is ideal for feeding machinery or lifting to docks and mezzanines where base legs could interfere.
2.Heavy-duty mast can been adjusted to suitable degree.
3.Forged fork for easy access.
4.Powerful drive and power unit made in Europe.
5.Top quality electronic control system from Curtis.
6.Low noise, no pollution, and high reliability with free lifting function
7.Conforms to EN1757-1:2000,EN1726.

Item		CPD-SX
Capacity Q (Kg)		1000/2500
Max Lifting Height (mm)		2500
Free Lifting Height(mm)		168
l (mm)		800	X (mm)	928
X2 (mm)		245	Y (mm)	1010
L2 (mm)		1383	L (mm)	2183
M (mm)		570	N (mm)	100
h1 (mm)		1700	h3 (mm)	2500
h4 (mm)		2968	Wa (mm)	1324
Net Weight (Kg)		1460
Battery		240AH/24V 17.5Kg/PCS×12PCS=210Kg
Motor	Travel	1.2KW/24V
	Lift	2.2KW/24V
Front Wheel		Φ200×80mm	Driving Wheel	Φ250×80mm
