Home >> Products >> NPV50 Heavy-duty Pallet Truck

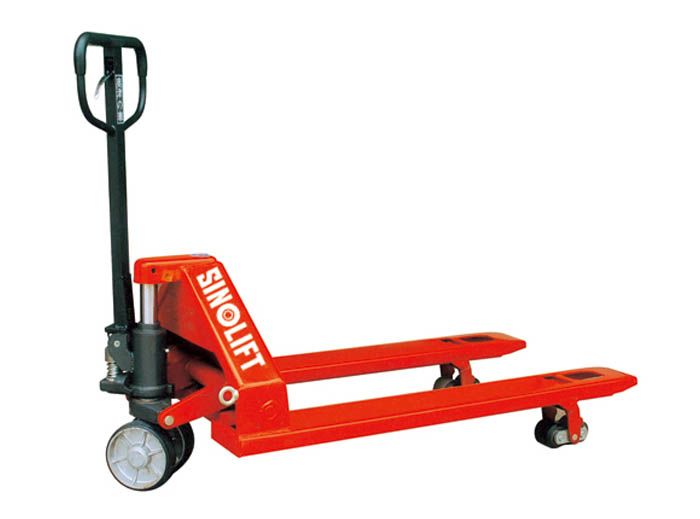

Name：NPV50 Heavy-duty Pallet Truck
Model：NPV50
Product Introduction：NPV50 Heavy-duty Pallet Truck

• Heavy duty design for moving heavy load.
• Unique hydraulic pump and large position with less effort to lift heavy load easily.
• Its independent oil storage room ensures good loqkproofness.
• 210 degree steering angle allows maximum maneuverability.
• Available Ex stock in special design.

MODEL		NPV35	NPV50
Rated Capacity (Kg)		3500	5000
Width over forks (mm) *1	W	520/550/685	520/550/685
Fork length (mm) *1	L	1070/1150/1220	1070/1150/1220
Min. Fork Height (mm)	H2	80	80
Max. Fork Height (mm)	H1	200	200
Steering Wheel (mm) *2	A	200x62	200x62
Load Wheel (mm) *3	B	78x70 (Tandem)	78x70 (Tandem)
Weight (kg)		80	83
Under Clearance (mm)		40	40
Fork width (mm)	W2	160	160
Stroke length (mm/stroke)		10	10
Overall Height (mm)		1248	1248
Steer Angle		210 deg	210 deg
Drive Unit Length (mm)		400	400
*1 W and L with over width and over length can be made according to customer's requirement.
*2 180x62 steering wheel is optional.
3 The 78100mm single load wheels are optional
