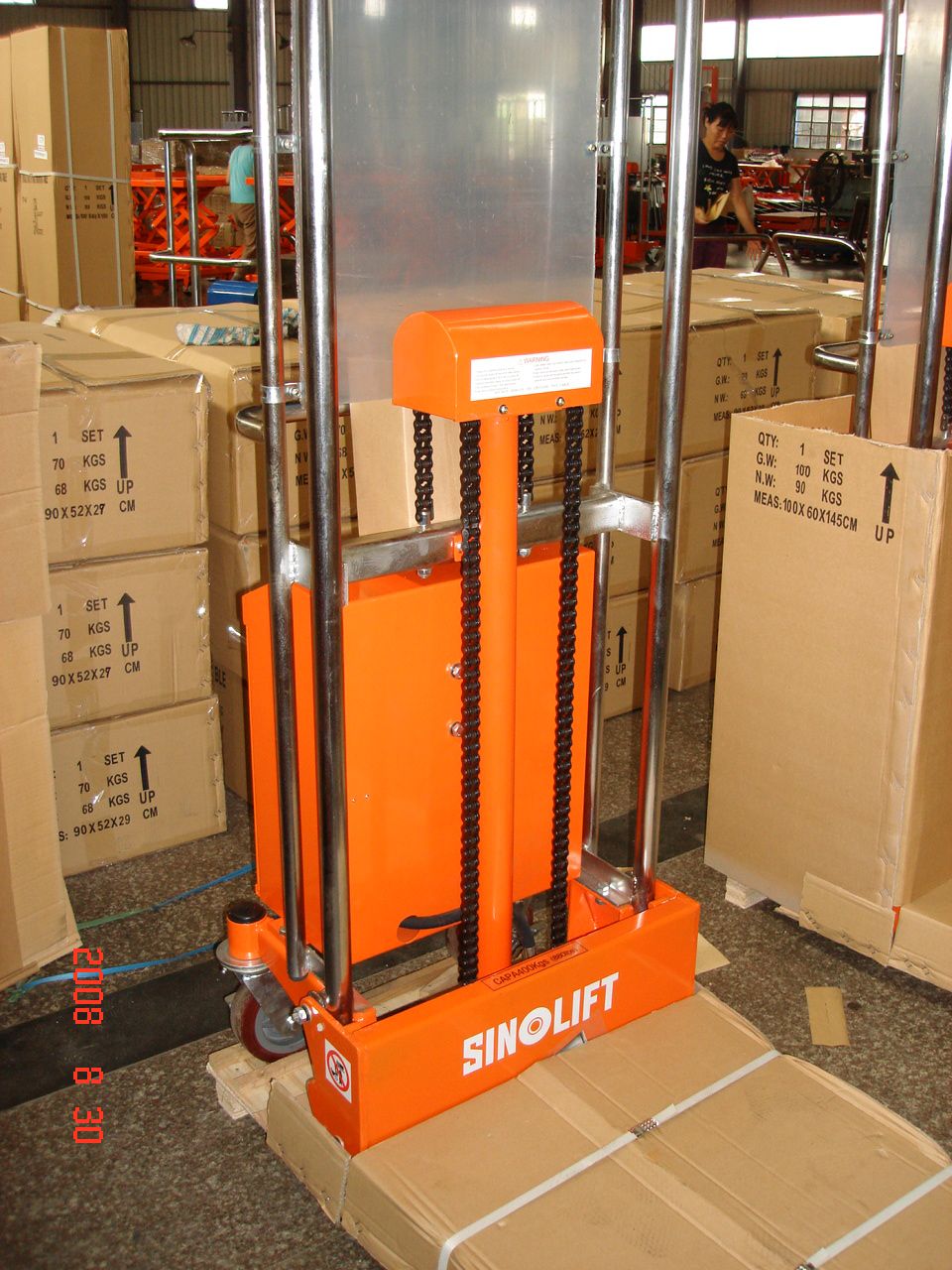

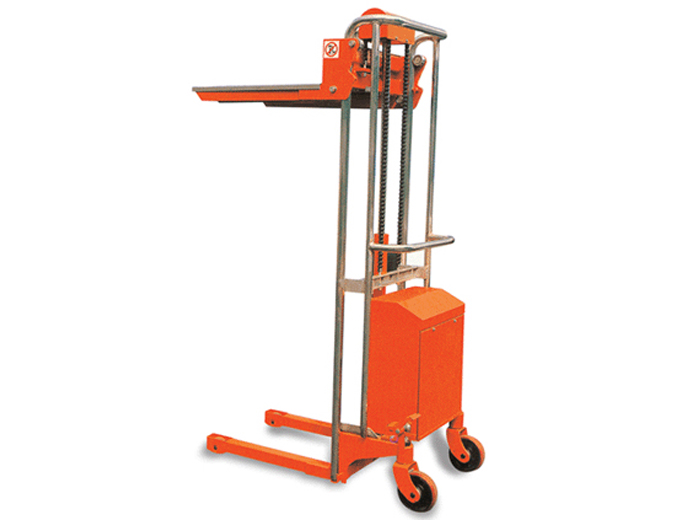

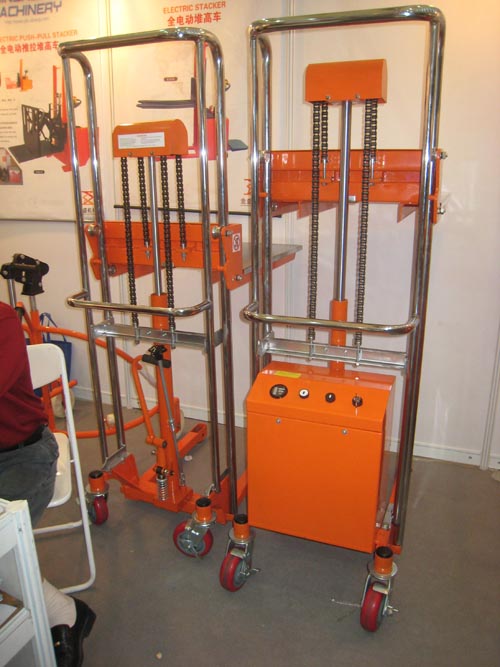

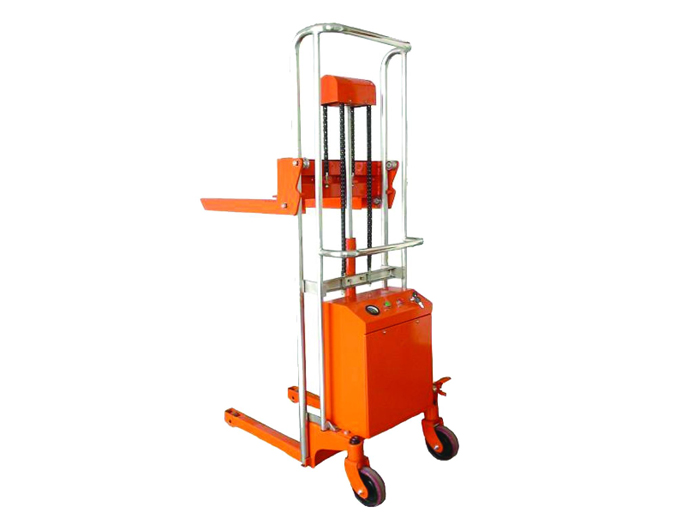

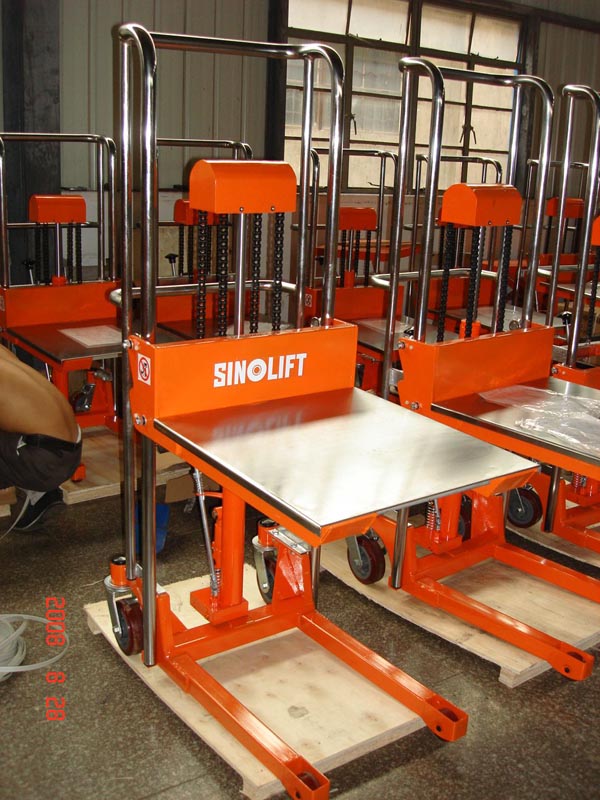

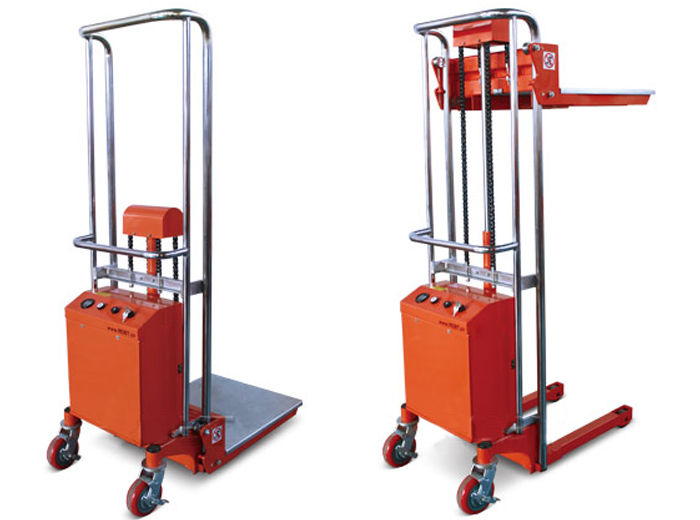

TFD light duty semi-electric stacker
Name：TFD light duty semi-electric stacker
Model：TFD series
Product Introduction：Simple and easy operation Lifting movement via collapsible foot pedal Sensitive lowering through sinking valve Hand push drive Overload protection via pressure valve
Feature
Specifications
PDF
IMAGES

Simple and easy operation

Lifting movement via collapsible foot pedal

Sensitive lowering through sinking valve

Hand push drive

Overload protection via pressure valve

Model TFD20-85 TFD20-120 TFD40-85 TFD40-120 TFD40-150
Capacity (kg) 200 200 400 400 400
Min. Fork Height (mm) 80 80 80 80 80
Max. Fork Height (mm) 850 1200 850 1200 1500
Forkv Length (mm) 600 600 650 650 650
Adjustable Fork Width (mm) 215-500 215-500 235-500 235-500 235-500
Single Fork Width (mm) 100 100 110 110 110
Dia of Front Wheel (mm) ø75
Dia of Steering Wheel (mm) ø125
Chassis Height (mm) 32.5 32.5 32.5 32.5 32.5
Power Pack Motor (KW) 0.7
Battery (V/Ah) 12/60 12/60 12/70 12/70 12/70
Overall Length (mm) 1020 1020 1100 1100 1100
Overall Width (mm) 560 560 590 590 590
Overall Height (mm) 1080 1435 1060 1410 1710
Option Platform (mm) LP10(610 x 530) LP20(660 x 580)
Net weight (kg) 90 97 105 116 122
Minimum Qty. (pcs) 2 2 2 2 2
