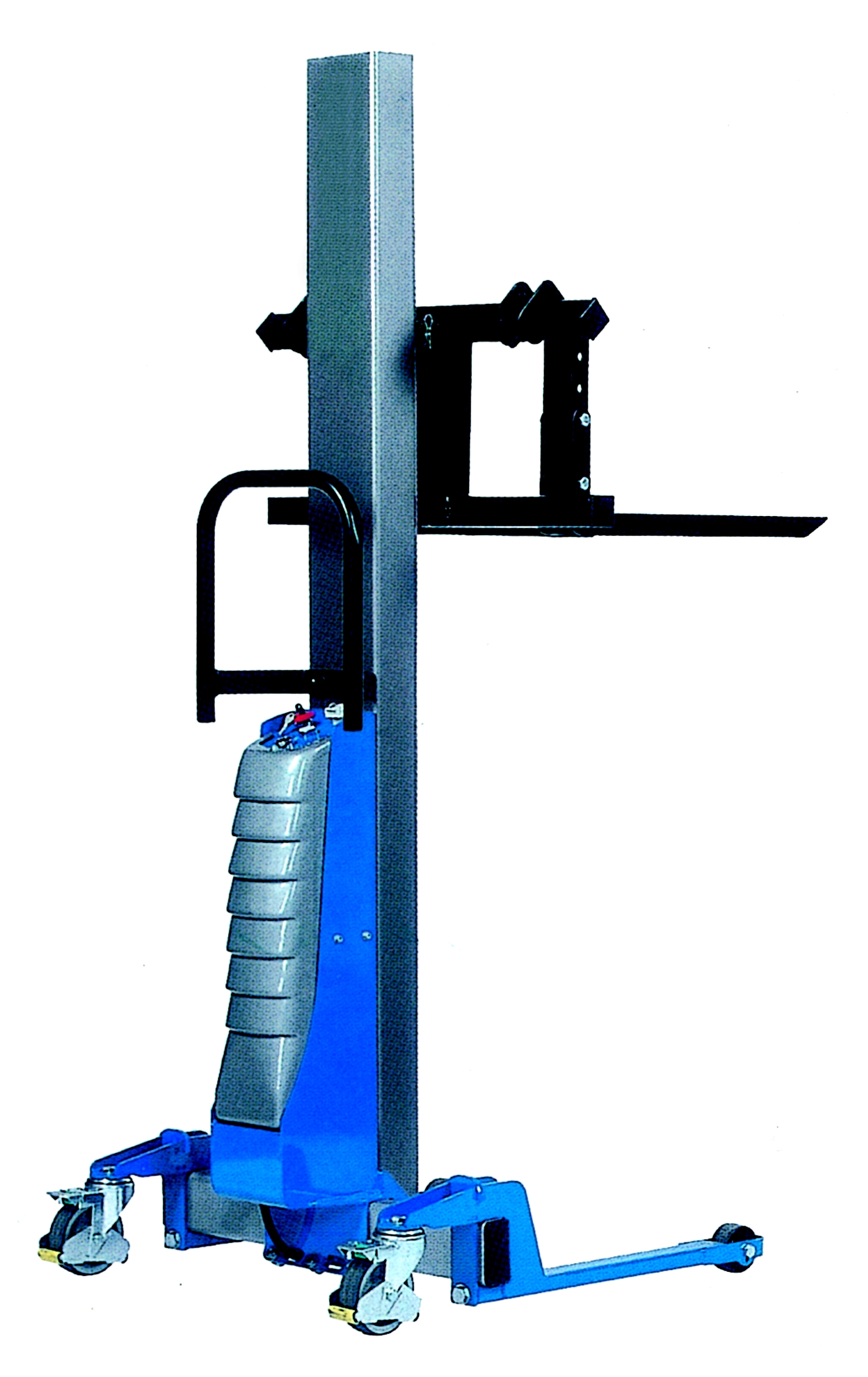

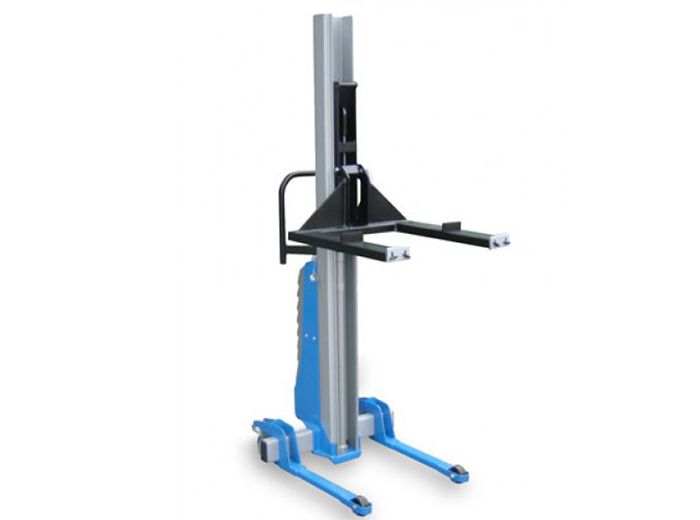

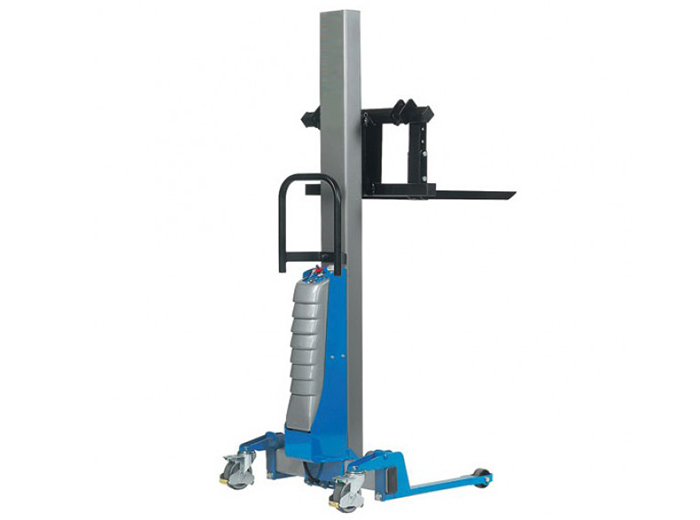

Name:EG single-mast electric mini stacker
Model:EG260 &EG260H
Product Introduction:Single mast design,wide field,delicate and easy operation High quality electric pump with strong power and high efficiency. High quality and free-maintenance battery with long-term performance. It has overload,low battery,anti-falling,multiple safty protection function. Various changing and optional accessories can be widely used which can satisfy the handling and lifting requirements of different stations and precesses.

Single mast design,wide field,delicate and easy operation
High quality electric pump with strong power and high efficiency.
High quality and free-maintenance battery with long-term performance.
It has overload,low battery,anti-falling,multiple safty protection function.
Various changing and optional accessories can be widely used which can satisfy the handling and lifting requirements of different stations and precesses.
Model EG260 EG260H
Capacity kg 260 260
Max. Platform (Fork) Height mm 1700 2000
Min. Platform (Fork) Height mm 90 90
Leg Height mm 80 80
Leg Outside Width mm 720 (500 -720) 720 (500 -720)
Platform Size mm 550x650 550x650
Fork Size  mm 600x80 600x80
Front Wheel mm Ø80 (Ø100) Ø80 (Ø100)
Rear Steering Wheel mm Ø125 Ø125
Power Pack Motor V/W 12/800 12/800
Battery V/Ah 12/45-60Ah 12/45-60Ah
Overall Height mm 1116 1116
Overall Width mm 720 720
Overall Length mm 1960 2245
Net Weight mm 128 138
