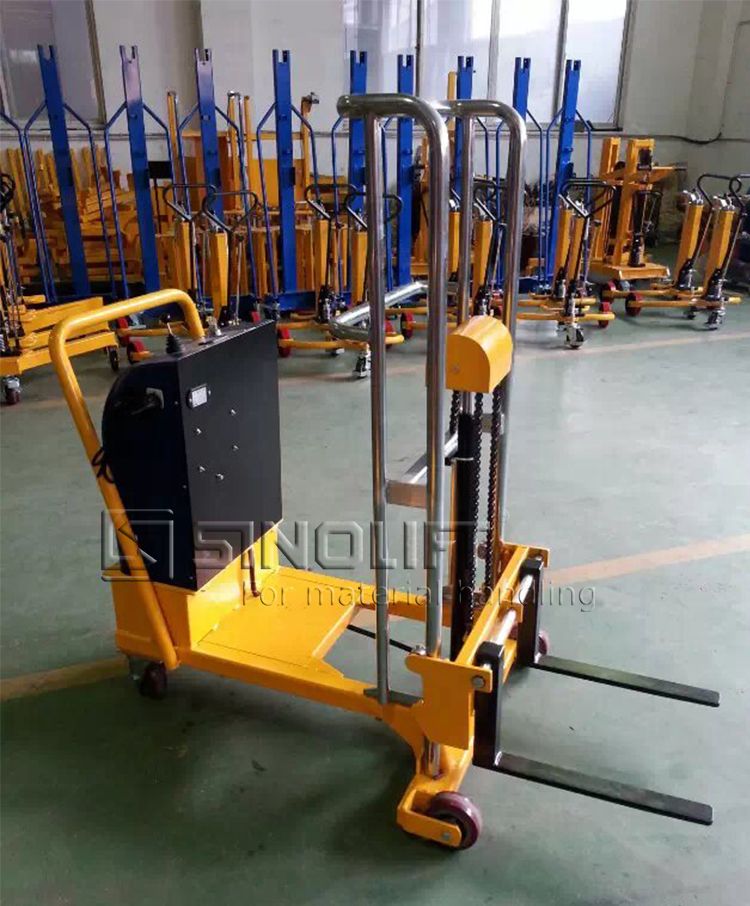

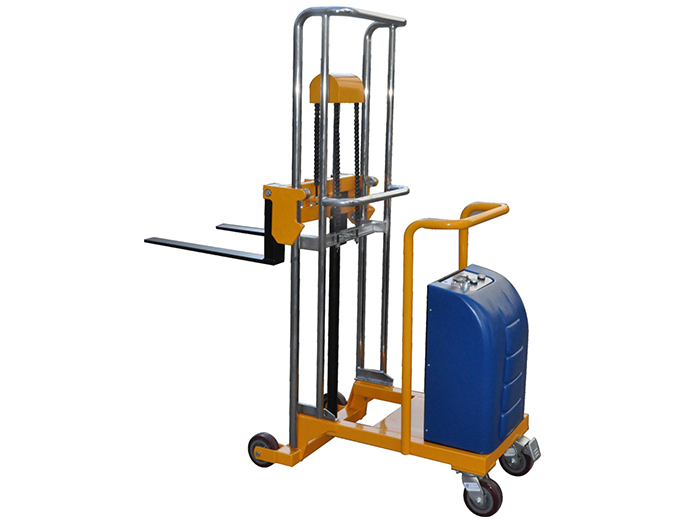

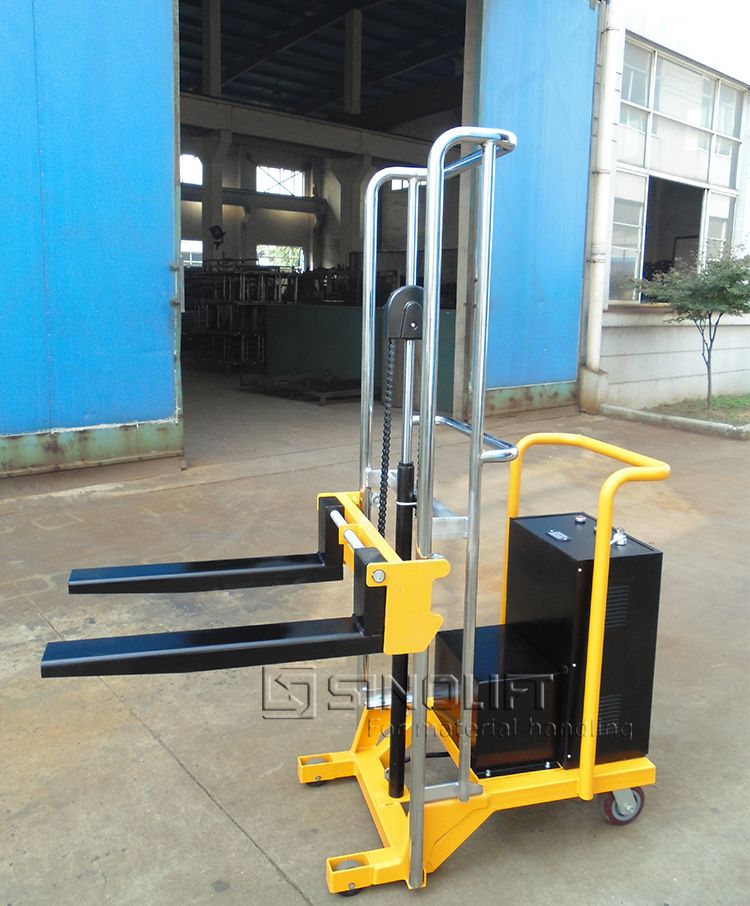

Name：EZ counter-balance electric mini stacker
Model：EZ series
Product Introduction：Easier and faster lifting operation. High quality hydraulic motor made in Italy. Maintenance-free battery and clear operating display. Built-in charge can be very convenient and safety Counter-weight structure ensure easily to enter into any load pallets. No-marking castor as standard. Conforms to EN1757:1 2001

Easier and faster lifting operation.

High quality hydraulic motor made in Italy.

Maintenance-free battery and clear operating display.

Built-in charge can be very convenient and safety

Counter-weight structure ensure easily to enter into any load pallets.

No-marking castor as standard.

Conforms to EN1757:1 2001

Model		EZ2585	EZ2512	EZ2515
Capacity	(kg)	200~250	150~250	150~250
Max. Fork Height	H (mm)	750	1100	1400
Min. Platform Height	H1 (mm)	20(60)	20(60)	20(60)
Fork Size	L1 (mm)	550x70	550x70	550x70
Fork Size	W (mm)	600x100	600x100	600x100
Fork Adjustable Width	D (mm)	155~550 (superlow) 215~550 (standard)
Front Load Wheel	d (mm)	Ø125x50	Ø125x50	Ø125x50
Rear Steering Wheel	d (mm)	Ø125x50	Ø125x50	Ø125x50
Lifting Speed (Laden/Unladen)	mm/s	95/130	95/130	95/130
Lowering Speed (Laden/Unladen)	mm/s	115/65	115/65	115/65
Power Unit	V/kw	12/0.8	12/0.8	12/0.8
Battery	V/Ah	12/60	12/60	12/60
Net Weight(PS/EP)	(kg)	218	225	230
