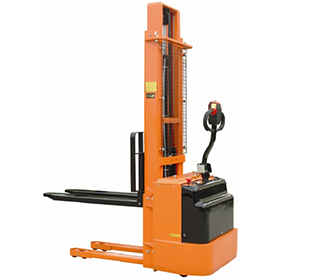

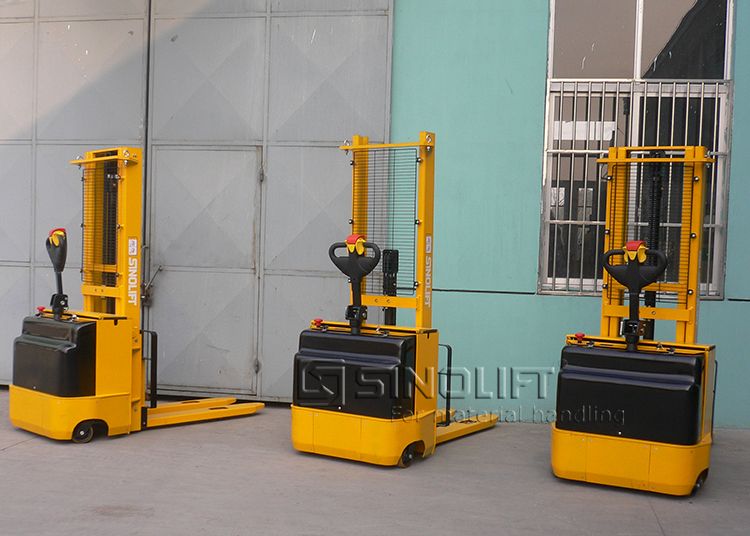

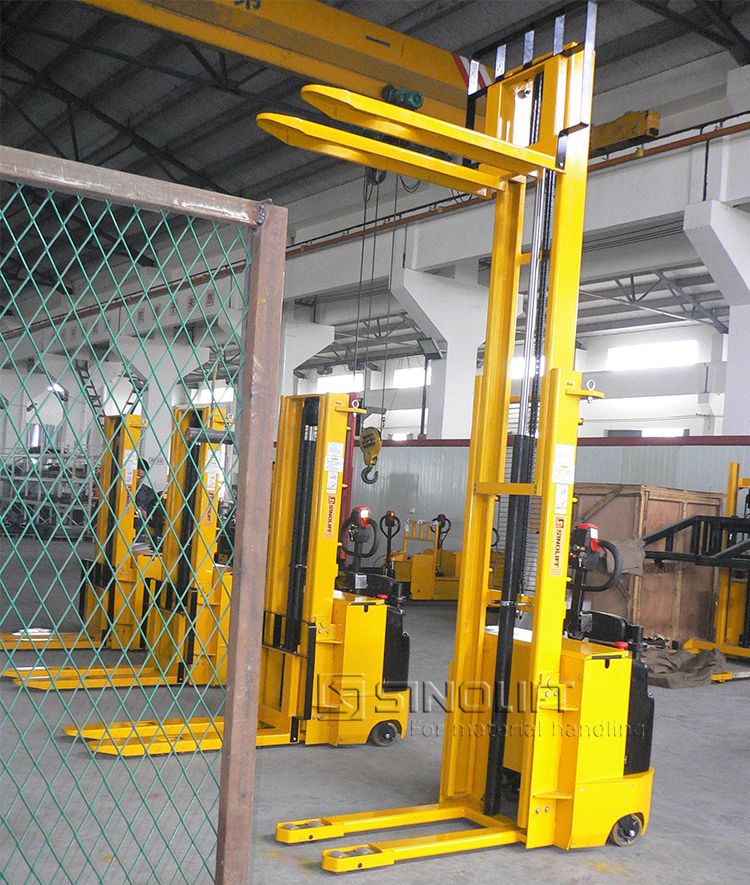

Name:CDD Standard Full electric Stacker
Model:CDD
Product Introduction:Designed for stacking palettes on tacks and transporting goods for short distance.Heavy duty design with C style mast material.Imported electric control system and hydraulic unit.Operating steady and flexible.Low noise, no pollution, and high reliability.

Features:

1. Capacity 1200kg, 1500kg.
2. Conforms to EN1757-1:2001, EN1727.
3. Heavy duty range for tough application.
4. Top quality electronic control system from Curtis.
5. Powerful power pack and drive wheel are made in Euro.

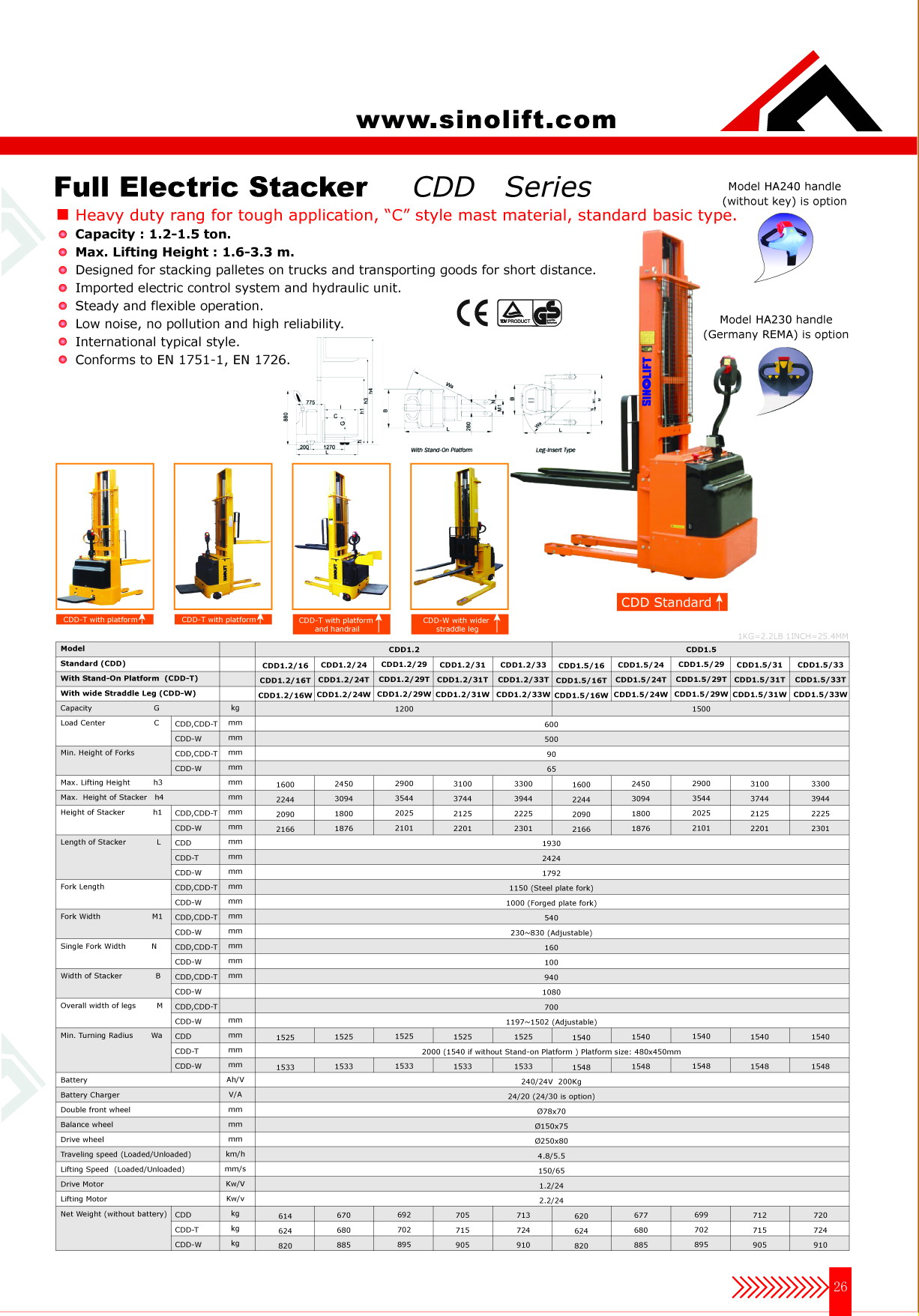

Modle CDD1.2 CDD1.5
Standard (CDD) CDD1.2/16 CDD1.2/24 CDD1.2/29 CDD1.2/31 CDD1.2/33 CDD1.5/16 CDD1.5/24 CDD1.5/29 CDD1.5/31 CDD1.5/33

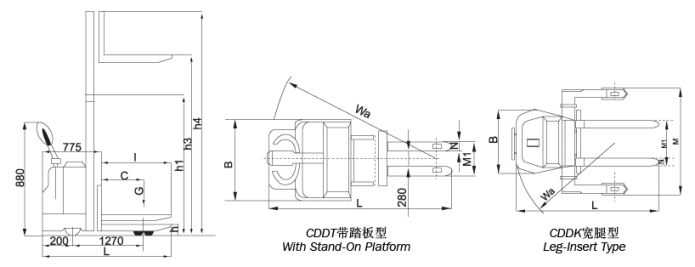

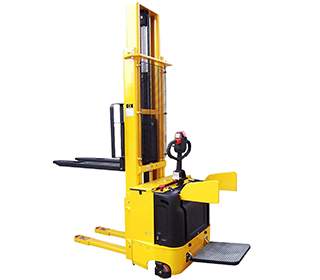

With Stand-On Platform  (CDD-T) CDD1.2/16T CDD1.2/24T CDD1.2/29T CDD1.2/31T CDD1.2/33T CDD1.5/16T CDD1.5/24T CDD1.5/29T CDD1.5/31T CDD1.5/33T

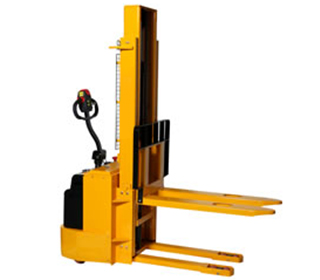

With wide Straddle Leg (CDD-W) CDD1.2/16W CDD1.2/24W CDD1.2/29W CDD1.2/31W CDD1.2/33W CDD1.5/16W CDD1.5/24W CDD1.5/29W CDD1.5/31W CDD1.5/33W
Capacity   Q Kg 1200 1500
Max Lifting Height   H mm 1600 2450 2900 3100 3300 1600 2450 2900 3100 3300
Max Height of Stacker   h mm 2244 3094 3544 3744 3944 2244 3094 3544 3744 3944
Net Weight (without battery) CDD Kg 613 670 692 705 713 620 677 699 712 720
CDD-T Kg 624 680 702 715 724 624 680 702 715 724
CDD-W Kg 820 885 895 905 910 820 885 895 905 910
Load Center   C CDD,CDD-T mm 600
CDD-W mm 500
Min Height of Forks CDD,CDD-T mm 90
CDD-W mm 65
Fork Length CDD,CDD-T mm 1150 (Steel plate fork)
CDD-W mm 1000 (Forging plate fork)
Fork Width CDD,CDD-T mm 540
CDD-W mm 230~830 (Adjustable)
Fork Width   N mm 160
Length of stacker CDD mm 1930
CDD-T mm 2424
CDD-W mm 1972
Width of Stacker   B CDD,CDD-T mm 840 940 840 940
CDD-W mm 1197~1502 (Adjustable)
Height of Stacker CDD,CDD-T mm 2090 1800 2025 2125 2225 2090 1800 2025 2125 2225
CDD-W mm 2166 1876 2101 2201 2301 2166 1876 2101 2201 2301
Min Turning Radius CDD mm 1525
CDD-T mm 2000
CDD-W mm 1525
Battery 240AH/24V   200Kg
