Home >> Products >> CDD-A High Lift Full Electric Stacker

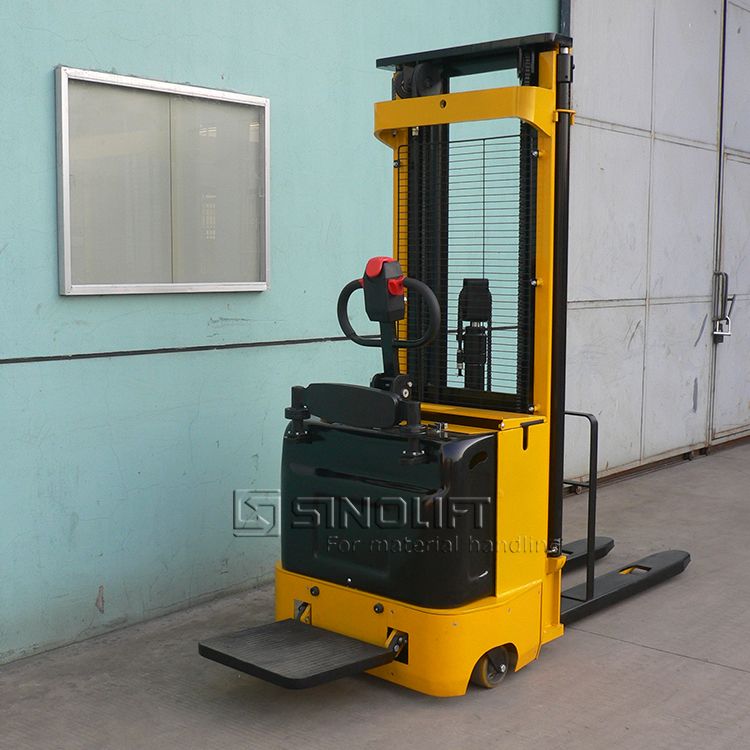

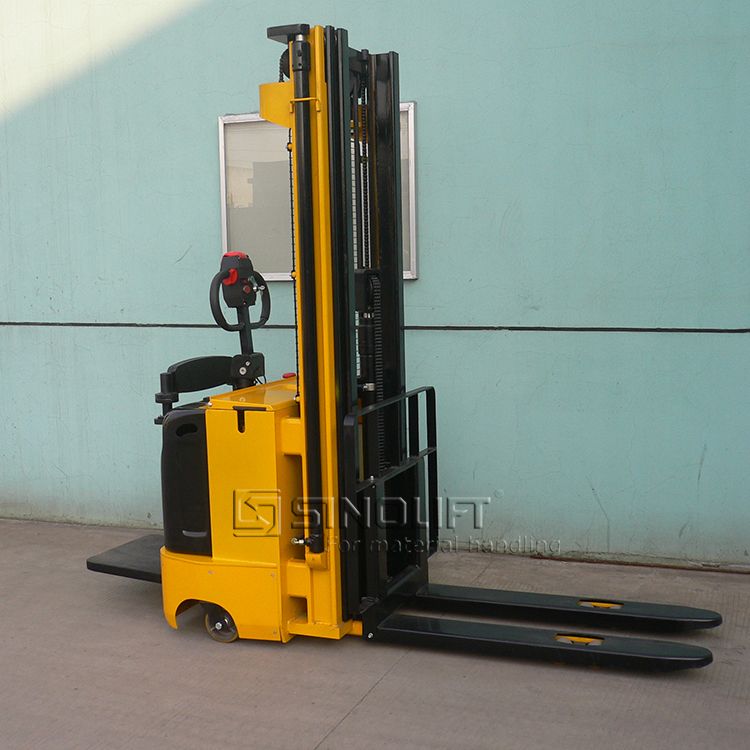

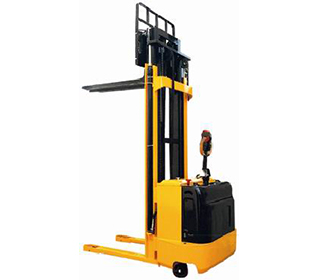

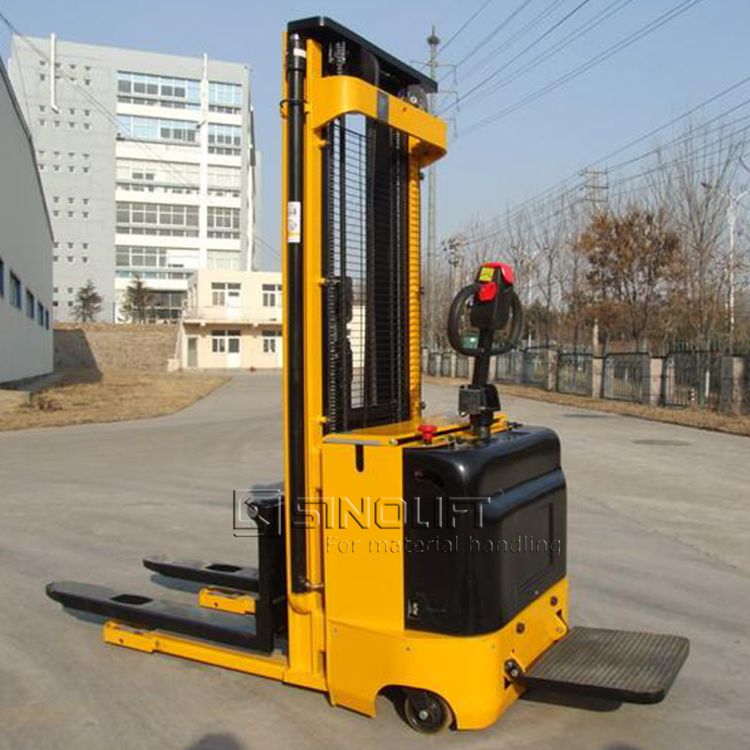

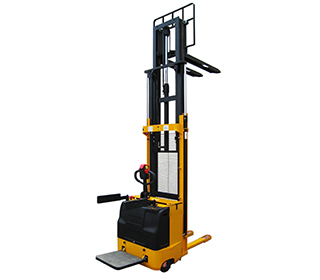

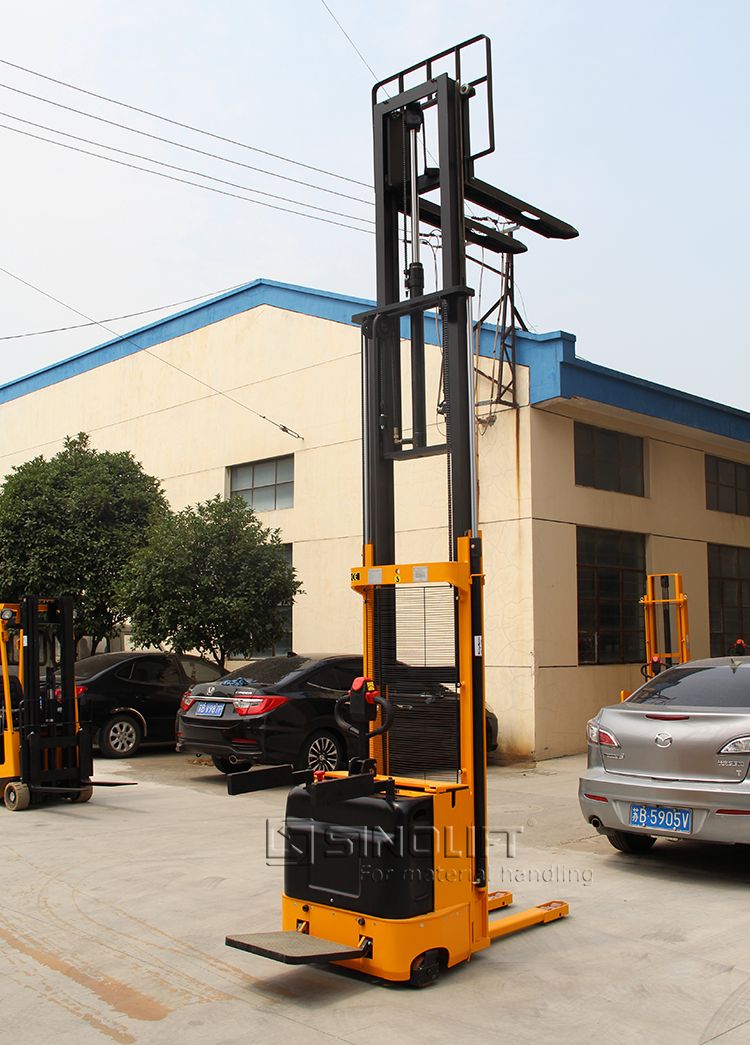

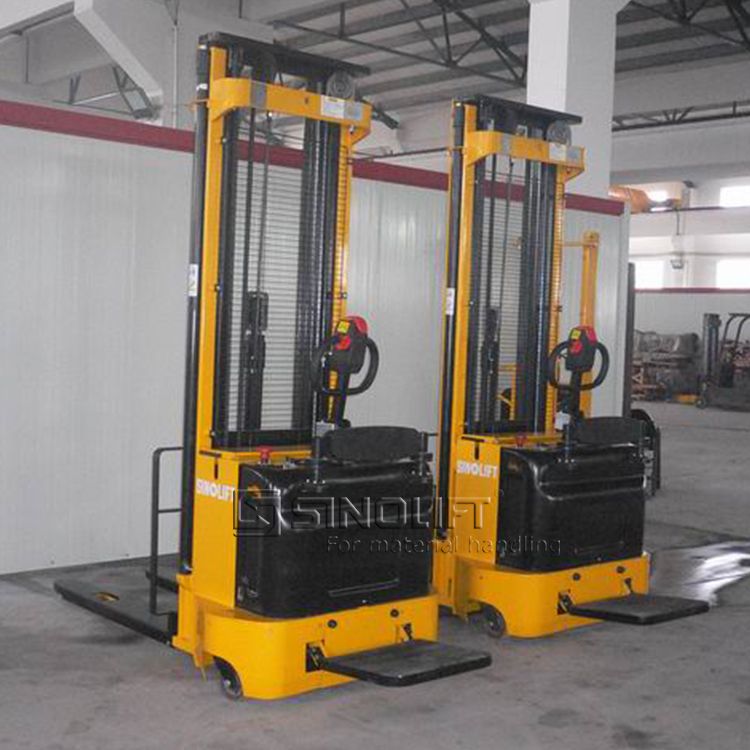

Name：CDD-A High Lift Full Electric Stacker
Model：CDD-A
Product Introduction：Designed for stacking palettes on tacks and transporting goods on high racks Can be installed with new Tiller from REMA, Germany. the platform pedal , defending bars and wide straddle leg are available.

Features:

1. Triplex mast 4.5m with free lifting
2. Capacity 1500kg.
3. Lifting height 4500mm/5500mm
4. Full free lifting height 1500mm.
5. Heavy duty design with top quality mast construction.
6. Powerful drive wheel and power unit made in Europe.
7. Top quality electronic control system from Curtis.
8. Conforms to EN 1757-1:2001, EN1727.
9. Weight of the battery: 230kg.
10. can be with platform 480×450mm.

Model			CDD1.2A		CDD1.5A
Standard (CDDA)			CDD1.2A/45	CDD1.2A/55	CDD1.5A/45	CDD1.5A/55
With Stand-On Platform (CDDA-T)			CDD1.2A/45T	CDD1.2A/55T	CDD1.5A/45T	CDD1.5A/55T

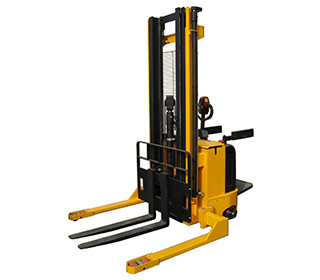

With wide Straddle Leg (CDDA-W)			CDD1.2A/45W	CDD1.2A/55W	CDD1.5A/45W	CDD1.5A/55W
Capacity Q		kg	1200		1500
Max Lifting Height H3		mm	4500	5500	4500	5500
Load Center C		mm	600
Fork Length		mm	1150
Single fork width		mm	160
Fork Width		mm	560
Overal width of legs		mm	720
Fork Height		mm	90
Free Lifting Height		mm	1550	1717	1550	1717
Min Height of Stacker		mm	2175	2508	2175	2508
Max Height of Stacker		mm	5373	6373	5373	6373
Traveling speed (Loaded/Unloaded)		km/h	5.2/6.8
Lifting speed (Loaded/Unloaded)		mm/s	127/170
Lowering speed (Loaded/Unloaded)		mm/s	150/128
Motor	Traveling	kw/v	1.2/24
	Lifting	kw/v	3.0/24
Front wheel		mm	Φ78x70
Balance wheel		mm	Φ150x75
Drive wheel		mm	Φ250x80
Overall Dimension	Length	mm	2175
	Width	mm	940
	Height	mm	2175	2508	2175	2508
Min Turning Radius		mm	1525
Battery			DG240AH/24V 200kg
Charger			Input 220V/50Hz, Output 24A/30V
