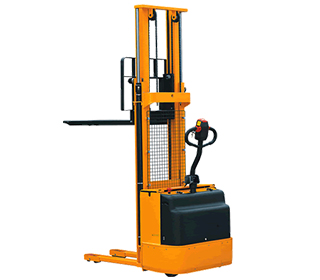

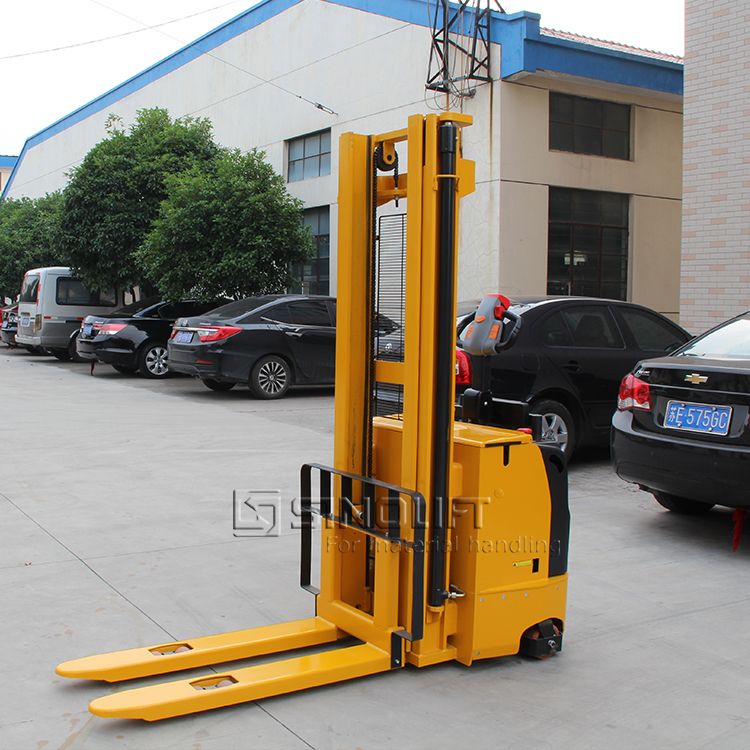

Name：CDD-B Wide-view Mast Full Electric Stacker
Model：CDD-B
Product Introduction：Designed for stacking palettes on tacks and transporting goods for short distance. Reinforced heavy duty mast material Double cylinder are mounted on both side for wide view while loading and transporting. Low noise, no pollution, and high reliability Imported electric control unit and hydraulic unit made in Europe. High stability and good operating flexibility Traditionally international style

Features:

1.Reinforced heavy duty mast material.

2.High-strength frame designed and "H" shaped mast, strong and durable, ensures longer service life.

3.Double cylinder are mounted on both side for wide view while loading and transporting.

4.Low noise, no pollution, and high reliability.

5.Imported electric control unit and hydraulic unit made in Europe.

6.High stability and good operating flexibility.

7.Traditionally international style.

8.Conforms to EN1757-1:2001

9.EPS (Electric Power Steering) is optional.

Model			CDD1.2B
Standard (CDD-B)			//	CDD1.2B/24	CDD1.2B/29	CDD1.2B/31	CDD1.2B/33	CDD1.2B/35

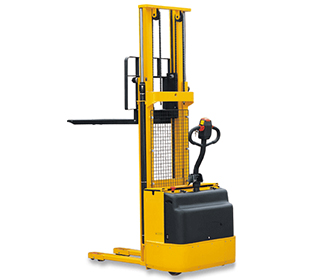

With Stand-On Platform (CDD-B-T)			//	CDD1.2B/24T	CDD1.2B/29T	CDD1.2B/31T	CDD1.2B/33T	CDD1.2B/35T

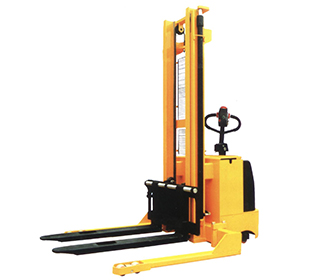

With wide Straddle Leg (CDD-B-W)			CDD1.2B/16W	CDD1.2B/24W	CDD1.2B/29W	CDD1.2B/31W	CDD1.2B/33W	CDD1.2B/35W
Capacity Q		kg	1200
Load Center C	CDD-B,CDD-B-T	mm	//	600
Load Center C	CDD-B-W	mm	500	500
Min. Fork height h	CDD-B,CDD-B-T	mm	//	90
Min. Fork height h	CDD-B-W	mm	65	65
Max. Lifting Height H		mm	1600	2450	2900	3100	3300	3500
Max .Height of Stacker H1	CDD-B,CDD-B-T	mm	//	3094	3544	3744	3944	4144
Max .Height of Stacker H1	CDD-B-W	mm	2460	3310	3760	3960	4160	4160
Height of Stacker H2	CDD,CDD-T	mm	//	1800	2025	2125	2225	2325
Height of Stacker H2	CDD-W	mm	2166	1876	2101	2201	2301	2301
Length of stacker L	CDD-B	mm	2073	2073
	CDD-B-T	mm	2567	2567
	CDD-B-W	mm	1972	1972
Fork Length L1	CDD-B,CDD-B-T	mm	//	1150 (Steel plate forks)
Fork Length L1	CDD-B-W	mm	1000 (Forged plate forks)	1000 (Forged plate forks)
Fork Width b1	CDD-B,CDD-B-T	mm	540/680
Fork Width b1	CDD-B-W	mm	230~790
Single Fork Width b2	CDD-B,CDD-B-T	mm	160
Single Fork Width b2	CDD-B-W	mm	100 (Forged forks)
Width of Stacker b	CDD-B,CDD-B-T	mm	860
Width of Stacker b	CDD-B-W	mm	940	940	940	1080	1080	1080
Overall width of legs B1	CDD-B,CDD-B-T	mm	700
Overall width of legs B1	CDD-B-W	mm	1197~1502 (Adjustable)
Turning Radius Wa	CDD-B,CDD-B-T	mm	1560
Turning Radius Wa	CDD-B-W	mm	1533	1533	1533	1548	1548	1548
Motors	Traveling	kw/V	1.2/24
Motors	Lifting	kw/V	2.0/24
Travelling Speed With/Without Load		km/h	5.0/6.0
Lifting Speed With/Without Load		mm/s	105/144
Lowering Speed With/Without Load		mm/s	120/90
Double Front Wheel		mm	Φ78x70
Balance Wheelr		mm	Φ150x75
Drive Wheel		mm	Φ250x80
Battery( Service Free)		Ah/V	200/24
Option Traction Battery		Ah/V	240/24
Net Weight (without battery)	CDD-B	kg	//	730	758	770	782	794
	CDD-B-T	kg	//	733	762	773	785	820
	CDD-B-W	kg	820	885	895	905	910	830

Model			CDD1.5B
Standard (CDD-B)			//	CDD1.5B/24	CDD1.5B/29	CDD1.5B/31	CDD1.5B/33	CDD1.5B/33
With Stand-On Platform (CDD-B-T)			//	CDD1.5B/24T	CDD1.5B/29T	CDD1.5B/31T	CDD1.5B/33T	CDD1.5B/35T
With wide Straddle Leg (CDD-B-W)			CDD1.5B/16W	CDD1.5B/24W	CDD1.5B/29W	CDD1.5B/31W	CDD1.5B/33W	CDD1.5B/35W
Capacity Q		kg	1500
Load Center C	CDD-B,CDD-B-T	mm	//	600
Load Center C	CDD-B-W	mm	500	500
Min. Fork height h	CDD-B,CDD-B-T	mm	//	90
Min. Fork height h	CDD-B-W	mm	65	65
Max. Lifting Height H		mm	1600	1600	2900	3100	3300	3500
Max .Height of Stacker H1	CDD-B,CDD-B-T	mm	//	3094	3544	3744	3944	4144
Max .Height of Stacker H1	CDD-B-W	mm	2460	3310	3760	3960	4160	4160
Height of Stacker H2	CDD,CDD-T	mm	//	1800	2025	2125	2225	2325
Height of Stacker H2	CDD-W	mm	2166	1876	2101	2201	2301	2301
Length of stacker L	CDD-B	mm	2073	2073
	CDD-B-T	mm	2567	2567
	CDD-B-W	mm	1972	1972
Fork Length L1	CDD-B,CDD-B-T	mm	//	1150 (Steel plate forks)
Fork Length L1	CDD-B-W	mm	1000 (Forged plate forks)	1000 (Forged plate forks)
Fork Width b1	CDD-B,CDD-B-T	mm	540/680
Fork Width b1	CDD-B-W	mm	230~790
Single Fork Width b2	CDD-B,CDD-B-T	mm	160
Single Fork Width b2	CDD-B-W	mm	100 (Forged forks)
Width of Stacker b	CDD-B,CDD-B-T	mm	860
Width of Stacker b	CDD-B-W	mm	940	940	940	1080	1080	1080
Overall width of legs B1	CDD-B,CDD-B-T	mm	700
Overall width of legs B1	CDD-B-W	mm	1197~1502 (Adjustable)
Turning Radius Wa	CDD-B,CDD-B-T	mm	1560
Turning Radius Wa	CDD-B-W	mm	1533	1533	1533	1548	1548	1548
Motors	Traveling	kw/V	1.2/24
Motors	Lifting	kw/V	2.0/24
Travelling Speed With/Without Load		km/h	4.8/6.0
Lifting Speed With/Without Load		mm/s	95/144
Lowering Speed With/Without Load		mm/s	120/98
Double Front Wheel		mm	Φ78x70
Balance Wheelr		mm	Φ150x75
Drive Wheel		mm	Φ250x80
Battery( Service Free)		Ah/V	200/24
Option Traction Battery		Ah/V	240/24
Net Weight (without battery)	CDD-B	kg	//	780	808	820	832	815
	CDD-B-T	kg	//	783	812	823	835	840
	CDD-B-W	kg	820	935	945	905	960	850

Model			CDD2.0B
Standard (CDD-B)			//	CDD2.0B/24	CDD2.0B/29	CDD2.0B/31	CDD2.0B/33	CDD2.0B/33
With Stand-On Platform (CDD-B-T)			//	CDD2.0B/24T	CDD2.0B/29T	CDD2.0B/31T	CDD2.0B/33T	CDD2.0B/35T
With wide Straddle Leg (CDD-B-W)			CDD2.5B/16W	CDD2.0B/24W	CDD2.0B/29W	CDD2.0B/31W	CDD2.0B/33W	CDD2.0B/35W
Capacity Q		kg	2000
Load Center C	CDD-B,CDD-B-T	mm	//	600
Load Center C	CDD-B-W	mm	500	500
Min. Fork height h	CDD-B,CDD-B-T	mm	//	90
Min. Fork height h	CDD-B-W	mm	65	65
Max. Lifting Height H		mm	1600	1600	2900	3100	3300	3500
Max .Height of Stacker H1	CDD-B,CDD-B-T	mm	//	3094	3544	3744	3944	4144
Max .Height of Stacker H1	CDD-B-W	mm	2460	3310	3760	3960	4160	4160
Height of Stacker H2	CDD,CDD-T	mm	//	1800	2025	2125	2225	2325
Height of Stacker H2	CDD-W	mm	2166	1876	2101	2201	2301	2301
Length of stacker L	CDD-B	mm	2073	2073
	CDD-B-T	mm	2567	2567
	CDD-B-W	mm	1972	1972
Fork Length L1	CDD-B,CDD-B-T	mm	//	1150 (Steel plate forks)
Fork Length L1	CDD-B-W	mm	1000 (Forged plate forks)	1000 (Forged plate forks)
Fork Width b1	CDD-B,CDD-B-T	mm	540/680
Fork Width b1	CDD-B-W	mm	230~790
Single Fork Width b2	CDD-B,CDD-B-T	mm	160
Single Fork Width b2	CDD-B-W	mm	100
Width of Stacker b	CDD-B,CDD-B-T	mm	860
Width of Stacker b	CDD-B-W	mm	940	940	940	1080	1080	1080
Overall width of legs B1	CDD-B,CDD-B-T	mm	700
Overall width of legs B1	CDD-B-W	mm	1197~1502 (Adjustable)
Turning Radius Wa	CDD-B,CDD-B-T	mm	1560
Turning Radius Wa	CDD-B-W	mm	1533	1533	1533	1548	1548	1548
Motors	Traveling	kw/V	1.5/24 AC
Motors	Lifting	kw/V	3.0/24
Travelling Speed With/Without Load		km/h	5.3/6.4
Lifting Speed With/Without Load		mm/s	83/170
Lowering Speed With/Without Load		mm/s	160/120
Double Front Wheel		mm	Φ78x70
Balance Wheelr		mm	Φ150x75
Drive Wheel		mm	Φ250x80
Battery( Service Free)		Ah/V	200/24
Option Traction Battery		Ah/V	240/24
Net Weight (without battery)	CDD-B	kg	//	875	897	910	932	932
	CDD-B-T	kg	//	883	912	923	935	950
	CDD-B-W	kg	920	1035	1045	1005	1060	1080
