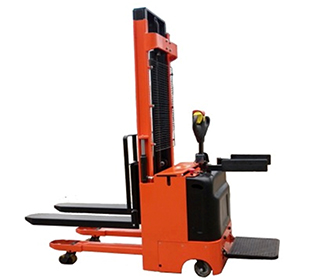

Name:CDD-E Double Pallet Full Electric Stacker
Model:CDD-E
Product Introduction:Fork has the function of lifting and lowering, it is more convenient while climbing and going down slope. It can carry double pallets one time with high efficiency.

Features:

1. Fork has the function of lifting and lowering, it is more convenient while climbing and going down slope. It can carry double pallets one time with high efficiency.

2. Imported AC system electric control unit and hydraulic unit from Europe, ensures best performance in different states.

3. High stability and good operating flexibility.

4. Low noise, no pollution, and high reliability.

5. Traditionally international style.

6. It operates simple, steady and reliable. Person can go together with stacker.

Model CDD1.2E CDD1.5E
Standard (CDD-E) CDD1.2E/16 CDD1.2E/24 CDD1.2E/29 CDD1.2E/31 CDD1.2E/33 CDD1.5E/16 CDD1.5E/24 CDD1.5E/29 CDD1.5E/31 CDD1.5E/33
 Capacity Q (Kg) 1200 1500
 Max Lifting Height H(mm) 1600 2450 2900 3100 3300 1600 2450 2900 3100 3300
 Load Center C (mm) 600
 Min Height of Forks (mm) 90
 Fork Length (mm) 1150
 Fork Width (mm) 540
 Min Height of Stacker h(mm) 2090 1800 2025 2125 2225 2090 1800 2025 2125 2225
 Max Height of Stacker h(mm) 2246 3096 3546 3746 3946 2246 3096 3546 3746 3946
 Width of Stacker B (mm) 940 940 940 1080 1080 940 940 940 1080 1080
 Length of Stacker (mm) 1925
 Min Turning Radius (mm) 1525
 Net Weight (without battery) (Kg) 613 670 692 705 713 620 677 699 712 720
 Battery DG240AH/24V  6Q-100AH/24V
