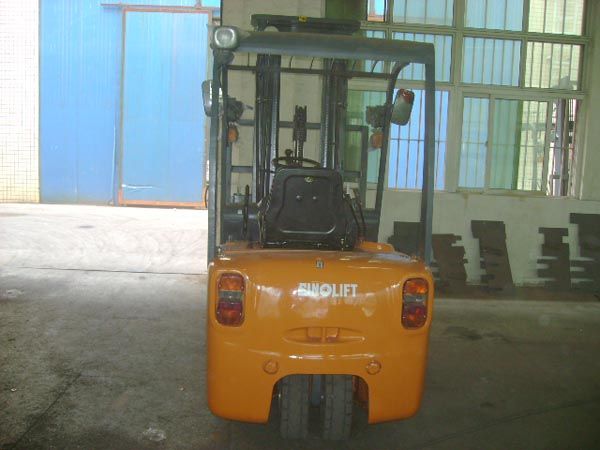

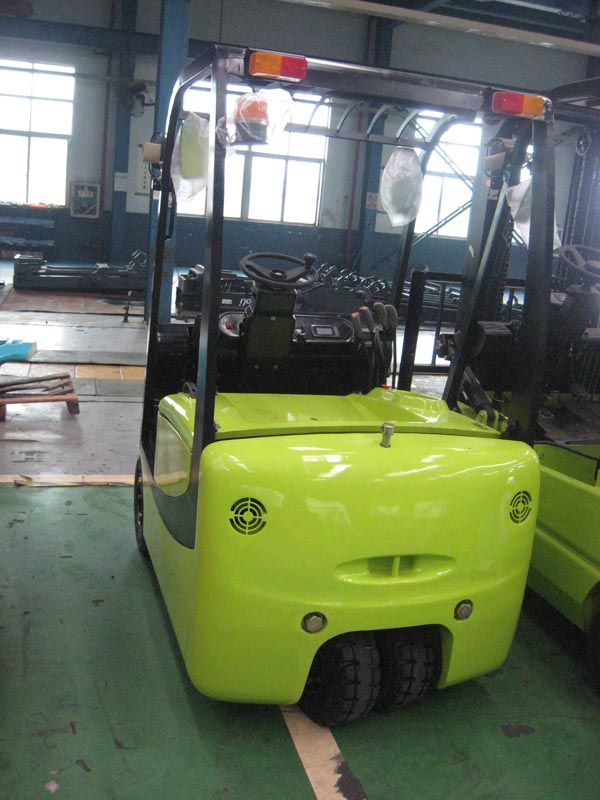

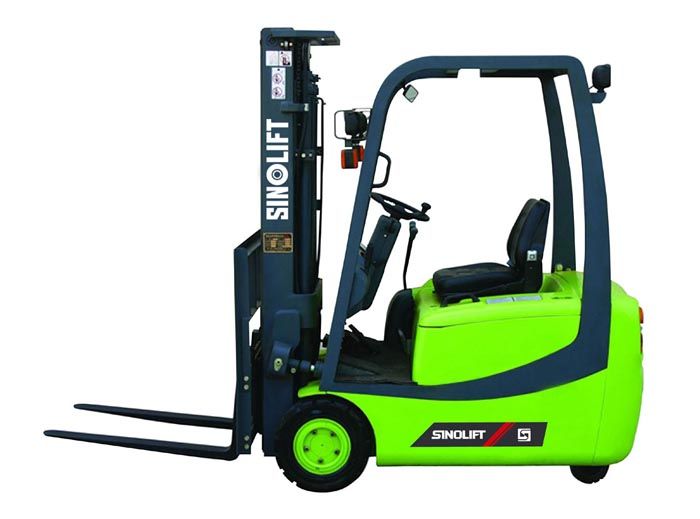

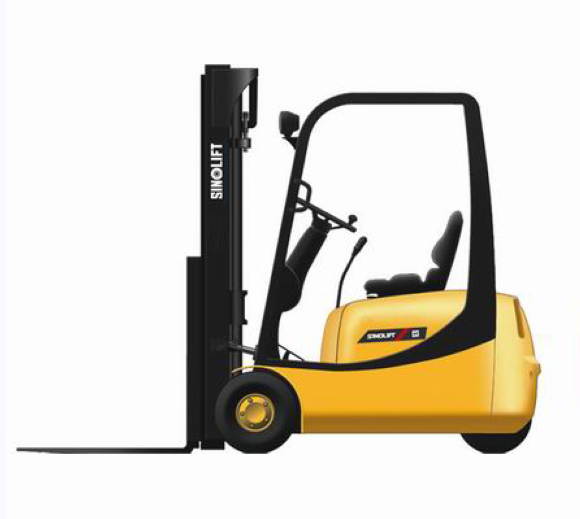

Name：CPDS AC system Mini Electric Forklift
Model：CPDS
Product Introduction：CPDS AC system Mini Electric Forklift

　Characteristic:
The distinctive features of the new CPDS series electric three-wheel forklift feature:
• Versatility of use due to compact design and minimal operating
space requirements. Compact dimensions combined with superb
maneuverability.
• High stability, both when stationary and cornering, due to long
wheelbase, low centre of gravity and wide tyres.
• Economy of operation, resulting from minimized maintenance costs,
e.g. Low-wear brakes.
　SPECIFICATIONS:
1) Rated capacity (kg): 1500, 1800
2) Max lifting height (mm): 3000, 4000, 4500, 4800, 5500, 6000
3) Controller model: Italian SME.

Characteristics	Manufactuer					SINOLIFT FORKLIFT
	Model					CPDS15	CPDS18
	Rated capacity				kg	1500	1750
	Load center				mm	500
	Power type					Battery
	Tyres					Super elastic
	No. of tyres (front/rear)					2/2
Dimensions	Lift height B				mm	3000	3000
	Free lift height E				mm	130	130
	Fork size NxUxL				mm	35×100×920	35×120×920
	Upright tilt(forward/backward) K/T				deg	5/7
	Overall dimensions	Length to fork face(with forks)			mm	2780	2830
		Length to fork face(without fork) J			mm	1860	1910
		Wheel width			mm	1050
		Overall width W			mm	1070
		Height with mast lowered C			mm	1980
		Height withmast extended A			mm	3945
		Height of overhead guard D			mm	1990
	Turning radius(outside) P				mm	1500
	Front overhang G				mm	360
	Right-angle store aisle (pallet 800x1200,1000x1200) RASA				mm	2860/3060	2910/3110
Performance	Travel speed(with/without load)				km/h	13.2/14.3	12.8/14
	Lifting speed(with/without load)				mm/sec	300/470
	Lowering speed(with load)				mm/sec	450
	Max. pulling force				KN	14.84	13.08
	Grade ability(with load)				%	20	19
Weight	Service mass(including battery)				kg	3100	3260
	Load per axle		Full load (front/rear)		kg	4020/560	4300/640
			Without load (front/rear)		kg	1540/1540	1480/1740
Chassis	Tyres size		Front			18×7-8 PR
			Rear			16×6-8 PR
	Wheel base F				mm	1295
	Wheel tread			Front Q	mm	895
				Rear S	mm	205
	Ground clearance			Mast H	mm	80/85	75/85
	(full load/without load)			Frame M	mm	100/110
	Service brake					Hydraulic
Power unit	Battery		Type			Ironclad plates
			Voltage/capacity		V/Ah	48/505
			Mass		kg	850
	Electric motor		Traction, power		kw	5.5×2
			Lift,power		kw	8
