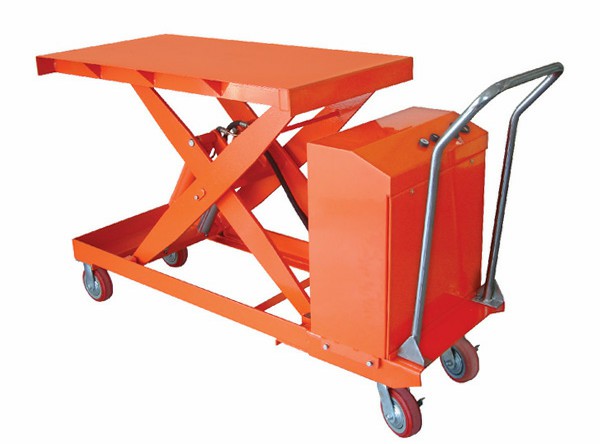

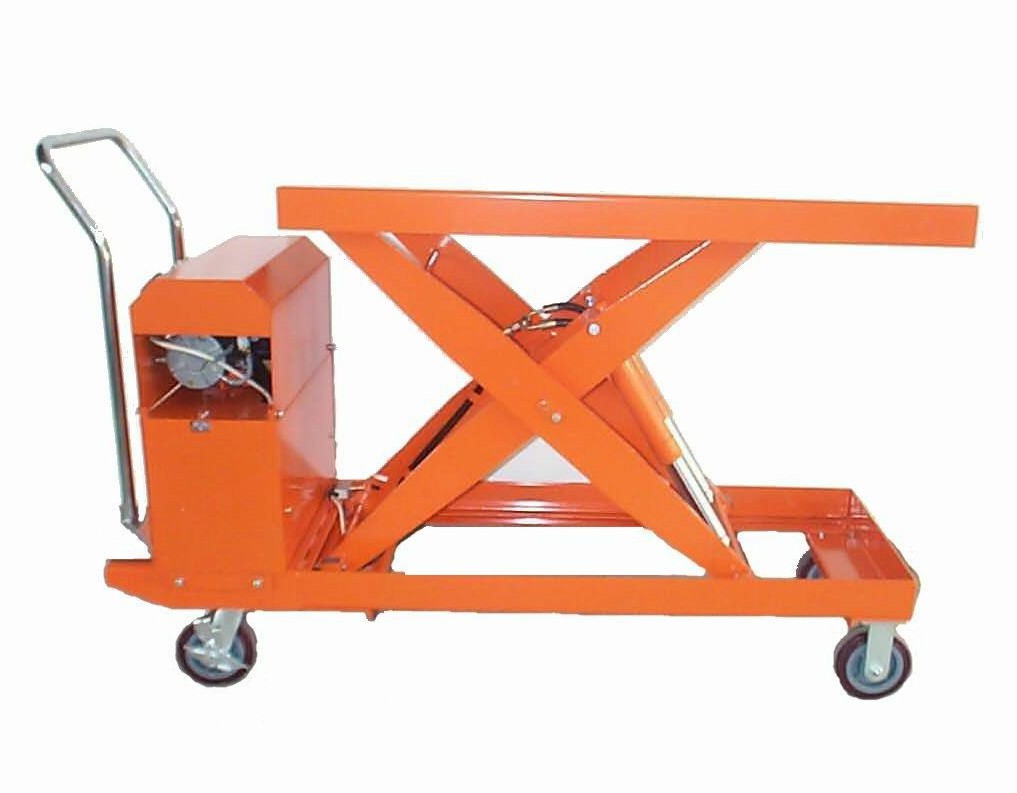

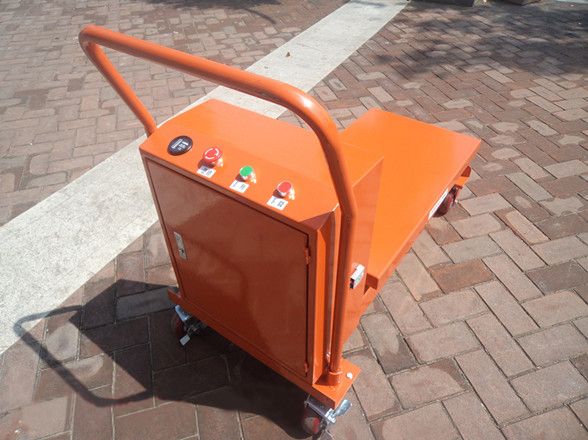

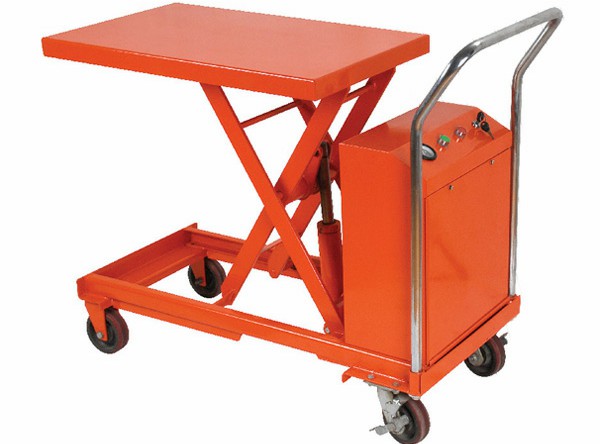

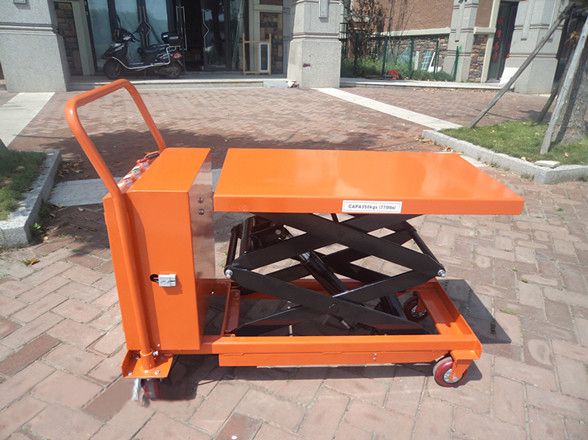

Name:CTYD Electric Table Truck
Model:CTYD
Product Introduction:All welded steel frame,durable and reliable AC,DC motor or foot pump is available. Deal for portable work station. Integrated power pack,heavy-duty cylinder with velocity fuse and pressure compensated down speed control valve. Special sizes are available upon request.

All welded steel frame,durable and reliable

AC,DC motor or foot pump is available.

Deal for portable work station.

Integrated power pack,heavy-duty cylinder with velocity fuse and pressure compensated down speed control valve.

Special sizes are available upon request.

Model CYTD300 CYTD500 CYTD1000H
Load Capacity (kg) 300 500 1000
Min. Height h(mm) 288 288 380
Max. Height H(mm) 900 900 1000
Table Dimension L×C(mm) 815×500×50 815×500×50 1200x610x50
Overall Length B(mm) 1085 1085 1600
Lifting Speed (s) 10 10 9
Lowering Speed (s) 10 10 15
Lifting Motor W 800 800 800
Battery V/Ah 24V/33Ah 24V/33Ah 24V/33Ah
Charger 24V/5A 24V/5A 24V/5A
Weight (kg) 111 114 250
