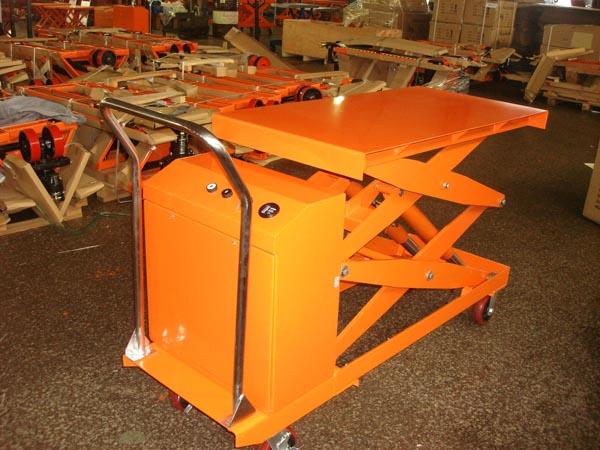

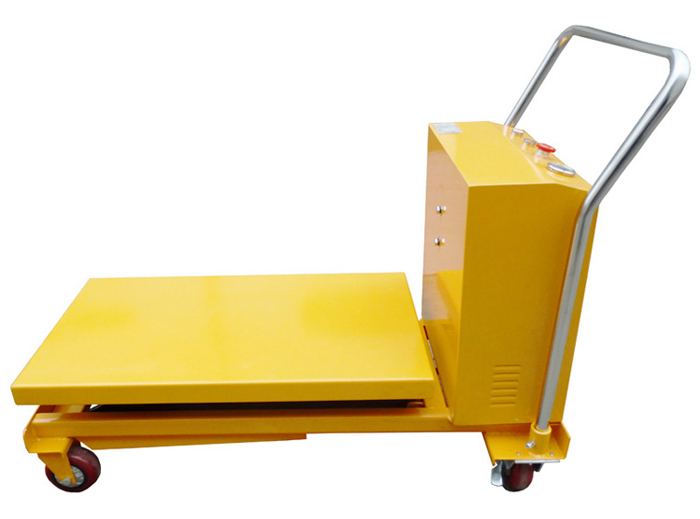

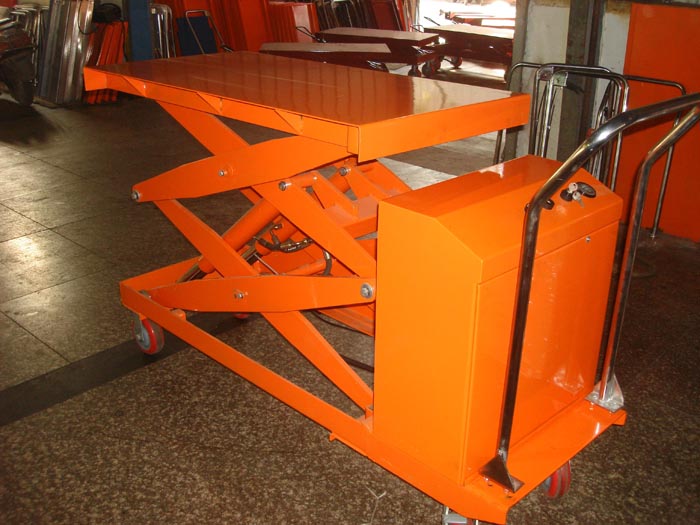

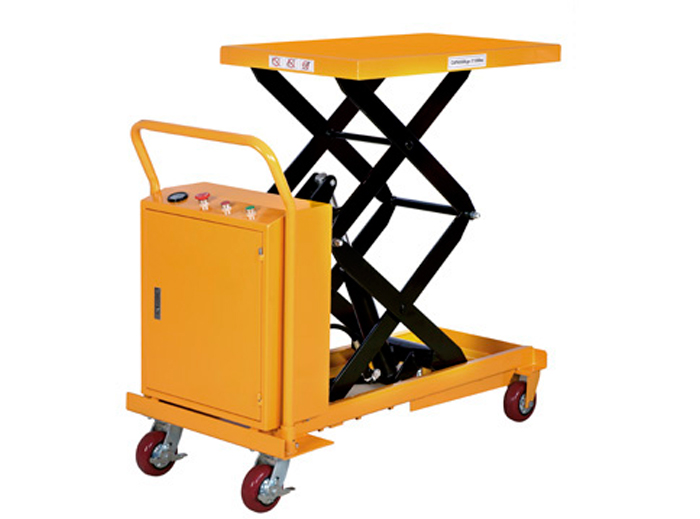

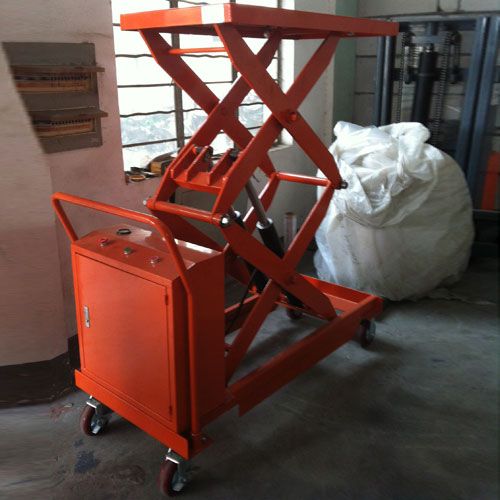

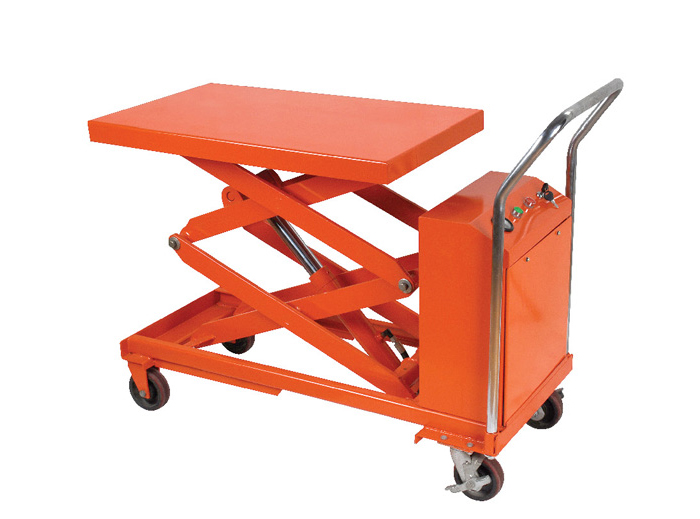

Name:CYTD-S Double Scissors Electric Table Lift
Model:CYTD-S
Product Introduction:All welded steel frame,durable and reliable AC,DC motor or foot pump is available. Deal for portable work station. Integrated power pack,heavy-duty cylinder with velocity fuse and pressure compensated down speed control valve. Special sizes are available upon request.

All welded steel frame,durable and reliable

AC,DC motor or foot pump is available.

Deal for portable work station.

Integrated power pack,heavy-duty cylinder with velocity fuse and pressure compensated down speed control valve.

Special sizes are available upon request.

Model CYTD350S CYTD800SD CYTD1000SD
Load Capacity kg 350 800 1000
Max. Height mm  1320 6550 1700
Min. Height mm 405 1800 500
Table Size mm  910×500×56 900x580x60 1200x610x60
Handle Height mm  1101.5 1101.5 1101.5
Lifting Speed  15  18  18
Lowering Speed  15  20  20
Motor w 800 1500 800
Battery V/Ah 24/33 24/40 24/33
Battery Charger 24V/5A 24V/5A 24V/5A
Weight kg  150 360 334
Packing Size mm 1250x530x740 1250x620x1980 1600x620x840
