Home >> Products >> CYTS Hand Double Scissors Table Lift

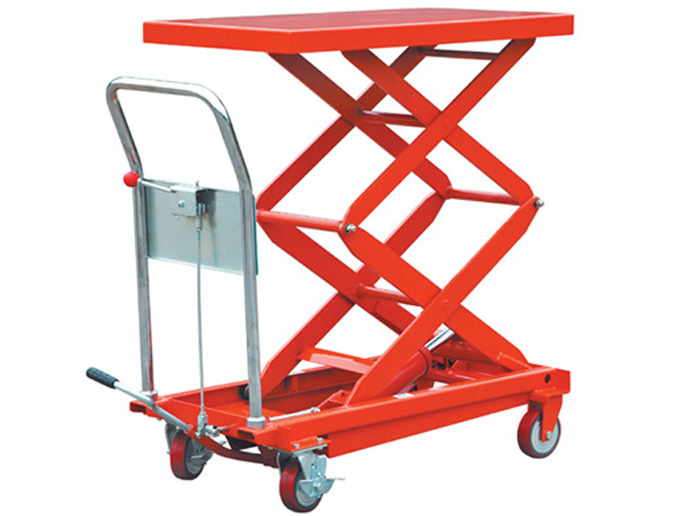

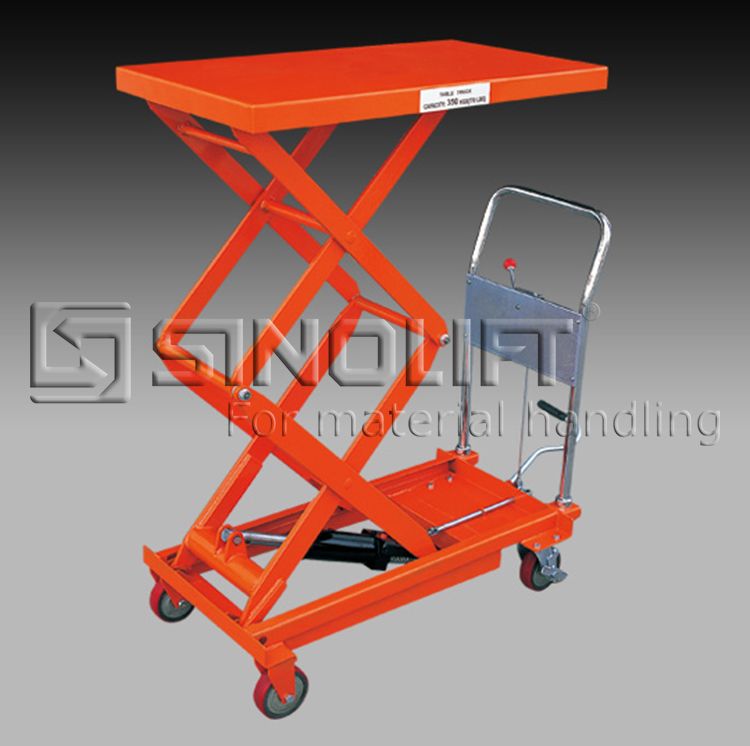

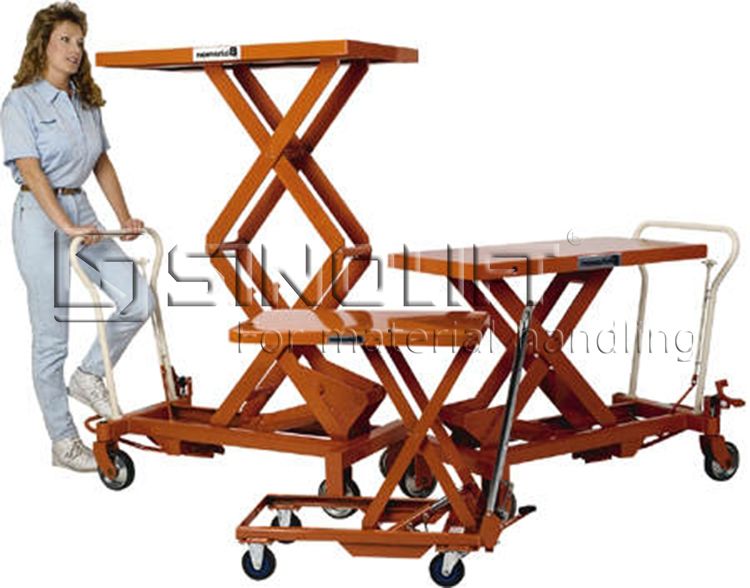

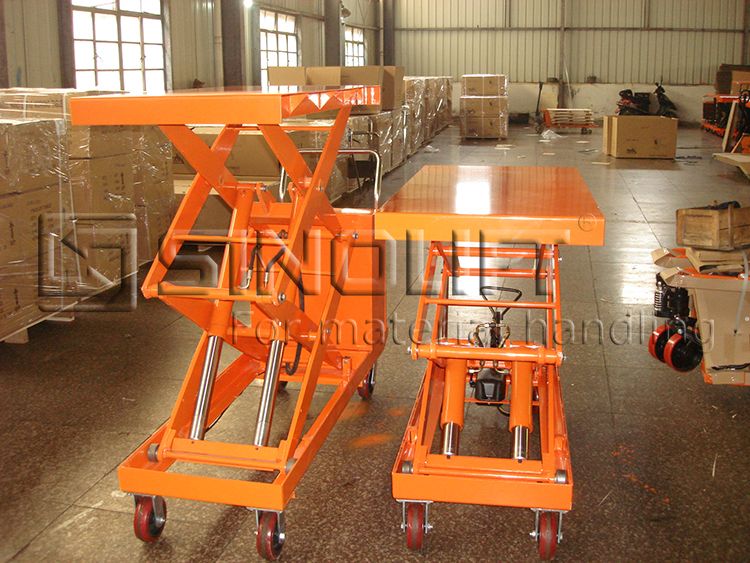

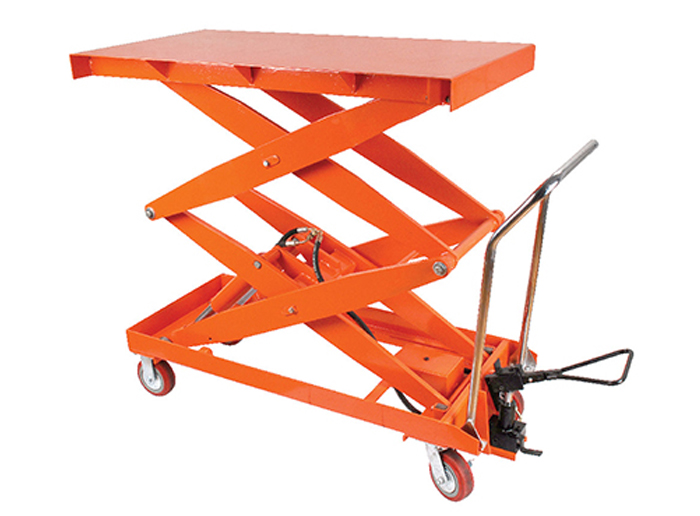

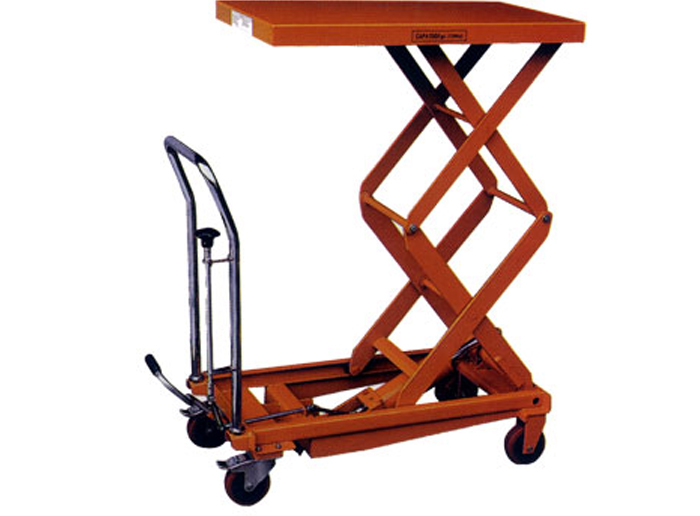

Name：CYTS Hand Double Scissors Table Lift
Model：CYT350S/CYT750S/CYT1000S
Product Introduction：1. Valuable material handling for use as a feeding table on assembly line. 2. Structural heavy duty steel construction. 3. Easy action foot operated hydraulic lift for raising table top to desired level. 4. Robust castors with safety wheel guard and brakes on the two swivel castors, for greater safety wheel loading and unloading. 5. Hand operated table descent control. 6. Over load by-pass valve protects operator and pump.

1. Valuable material handling for use as a feeding table on assembly line.
2. Structural heavy duty steel construction.
3. Easy action foot operated hydraulic lift for raising table top to desired level.
4. Robust castors with safety wheel guard and brakes on the two swivel castors, for greater safety wheel loading and unloading.
5. Hand operated table descent control.
6. Over load by-pass valve protects operator and pump.

Model		CYT350S	CYT750S	CYT1000S
Load Capacity	kg	350	750	1000
Max. Height	mm	1300	900	1000
Min. Height	mm	350	420	380
Table Dimension	mm	910×500×52	1000×510×55	1016×515×60
Handle Height	mm	970	1000	960
Stroke to Max. Height	stroke	≤55	≤55	≤55
Wheel Diameter	mm	127	150	150
Packing Size	mm	1010×530×390	1190×630×460	1190×630×420
Self-Weight	kg	110	112	115
