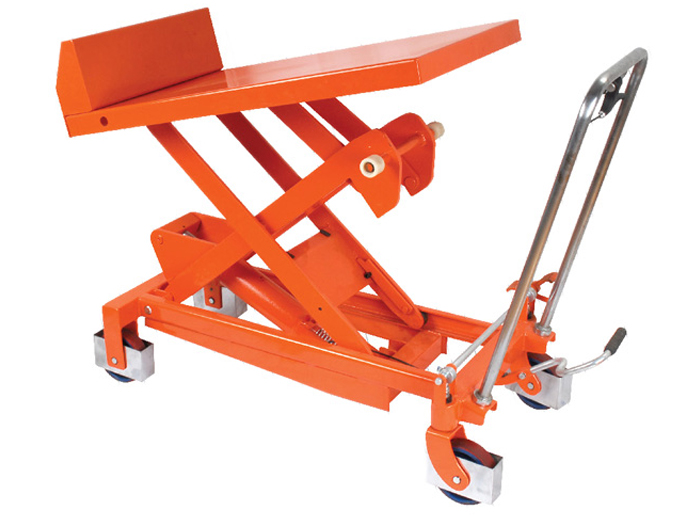

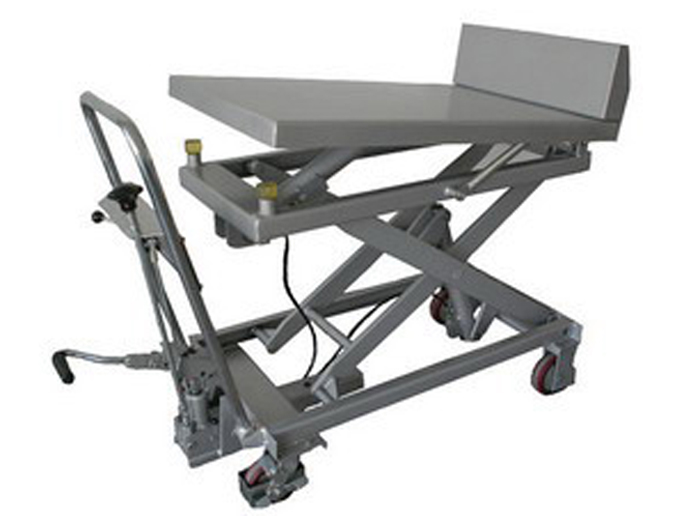

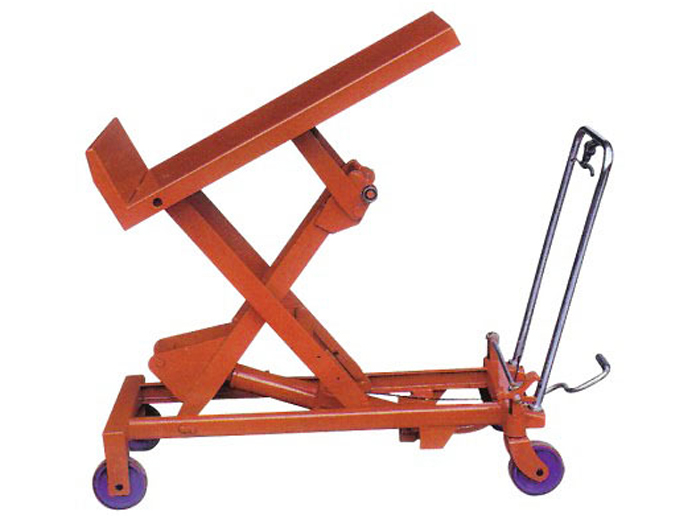

Name：CYT-F Table Lift with Tilt Table
Model：CYT300F/CYT500F/CYT300F-1/CYT500F-1
Product Introduction：• Manual hydraulic foot pump controls platform lift, tilt, and lowering. • Manual selector valve controls lifting/lowering sequence independently from tilting sequence. • Ergonomic handle.

• Manual hydraulic foot pump controls platform lift, tilt, and lowering.
• Manual selector valve controls lifting/lowering sequence independently from tilting sequence.
• Ergonomic handle.

Model		CYT300F	CYT500F	CYT300F-1	CYT500F-1
Load Capacity	kg	300	500	300	500
Lowest Height	mm	356	420	460	460
Max. Height	mm	1300	1300	1300	1300
Table Dimensions	mm	1000X610	1000x550	950x560x55	950x560x55
Total Length	mm	1320	1360	1390	1390
Length of Handle	mm	950	1000	970	970
Net Weight	kg	138	116	140	145
Packing Dimensions	mm	1080x620x370	1160x600x430	1200x570x470	960×530×420
Qty in one 20" Container	units	90	72	56	56
