Home >> Products >> CYT-P Table Lift with Vertical Cylinder

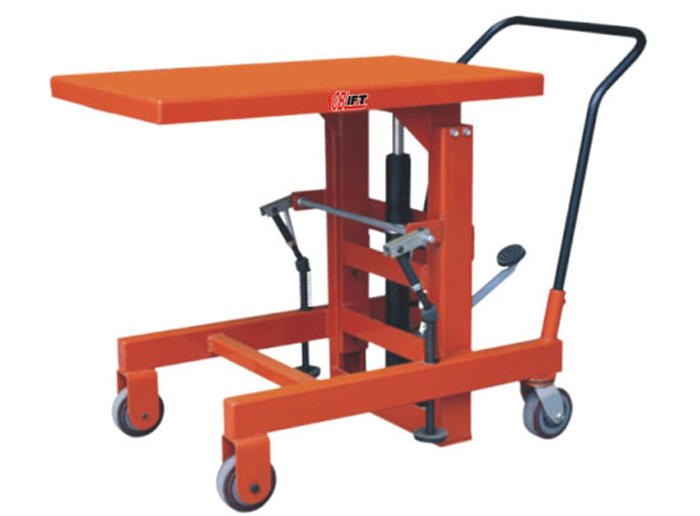

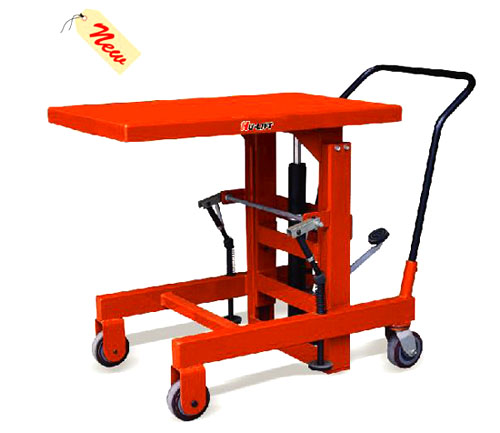

Name：CYT-P Table Lift with Vertical Cylinder
Model：CYT36P/CYT48P/CYT60P
Product Introduction：1.Design for lifting, positioning and transporting heavy loads in the shop, warehouse and office. 2.Foot Pump hydraulic ally raises platform. 3.Double Heavy-duty cylinder

1.Design for lifting, positioning and transporting heavy loads in the shop, warehouse and office.
2.Foot Pump hydraulic ally raises platform.
3.Double Heavy-duty cylinder

Model		CYT36P	CYT48P	CYT60P
Capacity Q	kg	908	908	908
Dimension of Table(LXW)	mm	915x610	915x610	915x610
Min.table height h2	mm	609	762	915
Max.table height h1	mm	915	1220	1524
Lifting speed	mm/s	≥7	≥7	≥7
Lowering speed		Adjustable	Adjustable	Adjustable
Overall length	mm	1250	1250	1250
Overall width	mm	660	660	660
Overall height	mm	970	970	970
Outer dia.of the front wheel	mm	125	125	125
Outer dia.of the rear wheel	mm	125	125	125
Net weight	kg	120	130	140
