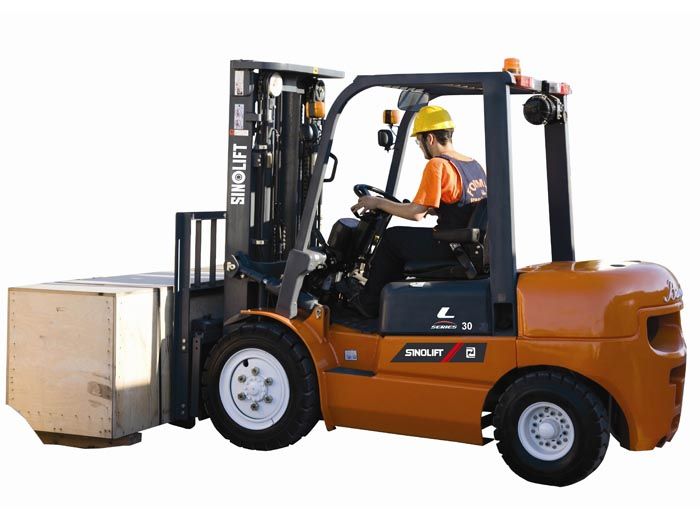

Name:L series I.C. Forklift
Model:L series I.C.
Product Introduction:L series I.C. Forklift

 Characteristic:
1) Streamlined exterior and high-strength frame
2) Comfortable driving room and mini steering wheel
3) transverse steering axle as Buffer device
4) Reliable special designed instrument
5) Overhead intake system,Integral hood,effectual in heat insulation and noise reduction
6) Imported diesel and gasoline engines can be option to save energy and increase efficiency.

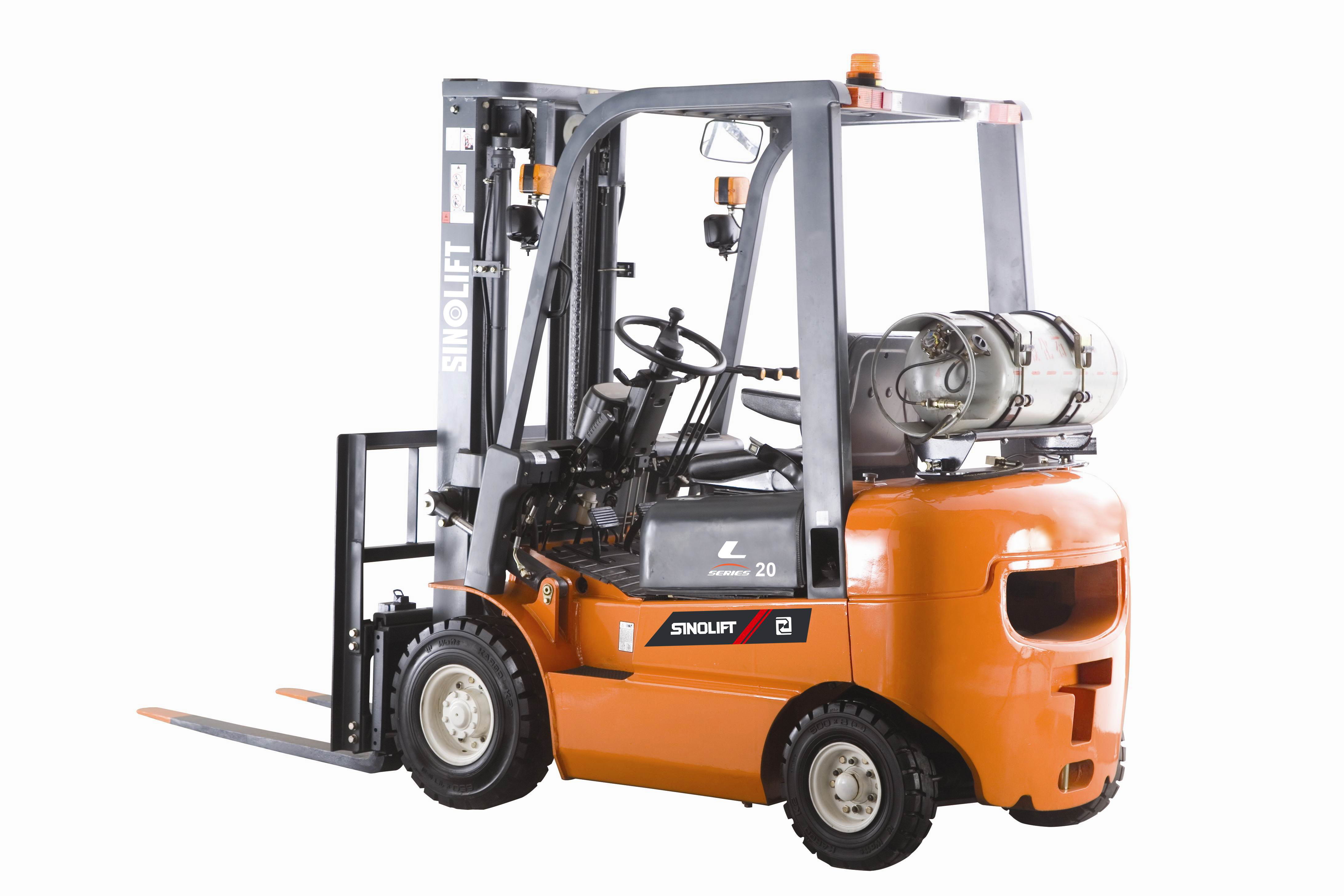

7) Choose gasoline and LPG as power according to customers’demands
 SPECIFICATIONS:
1) Rated capacity (kg): 1500,2000, 2500, 3000, 3500
2) Max lifting height (mm): 3000, 4000, 4500, 4800, 5500, 6000
3) All kinds of attachments for special function available
4) Diesel engine: Japan Isuzu ,Yanmar,Nissan or Chinese engines.







Manufacture    SINOLIFT L Series 1.0T-3.5T Diesel Forklift Specifications
Model   CPC(D)10-X1 CPC(D)15-X1 CPC(D)18-X1 CPC(D)20-X2 CPC(D)25-X2 CPC(D)30-X2 CPC(D)35-X2
 CPC(D)10-W1  CPC(D)15-W1  CPC(D)18-W1 CPC(D)20-W1 CPC(D)25-W1 CPC(D)30-X3 CPC(D)35-X3
***** ***** ***** CPC(D)20-W3 CPC(D)25-W3 CPC(D)30-W1 CPC(D)35-W1
***** ***** ***** ***** ***** CPC(D)30-W2 CPC(D)35-W2
Power type   Diesel Diesel Diesel Diesel Diesel Diesel Diesel
Rated capacity kg 1000 1500 1750 2000 2500 3000 3500
Load center mm 500 500 500 500 500 500 500
Lift height mm 3000 3000 3000 3000 3000 3000 3000
Free lift height                                                            E mm 164 164 164 140 140 145 145
Fork size                                                            N×U×L mm 920×100×40 920×100×40 1070×120×40 1070*120*40 1070*100*45 1070*125*45 1070*130*45
Mast tilt angle                                                        α / β deg 6/12 6/12 6/12 6/12 6/12 6/12 6/12
Front overhang                                                       A2 mm 436 436 436 482 482 501 501
Overall dimensions Length to face of fork           A1 mm 2180 2235 2270 2510 2580 2720 2720
Overall width                         B1 mm 1095 1095 1095 1150 1150 1225 1225
Mast lowered height              H1 mm 1995 1995 1995 1995 1995 2070 2070
Mast extended height            H3 mm 4030 4030 4030 4037 4037 4272 4272
Overhead guard height         H2 mm 2075 2075 2075 2060 2060 2090 2090
Turning radius                                                          R mm 1890 1960 2000 2170 2240 2460 2460
Min. right angle aisle width                                       X mm 1720 1780 1820 1920 2010 2110 2190
Travel speed (no load / full load) Hydraulic km/h 14.5/13.5 14.5/13.5 14.5/13.5 17/19 17/19 17/19 17/19
Mechanical Shift    I 6/5.5 6/5.5 6/5.5 8.5/9 8.5/9 8.8/9 8.8/9
Shift    II 14/13.5 14/13.5 14/13.5 18.5/19 18.5/19 18.5/20 18.5/20
Lift speed (full load) mm/sec 450 450 450 450 450 400 360
Max. gradeability  % 20 20 20 20 20 18 15
Self weight  kg 2340 2740 2943 3550 3880 4380 4750
Tires Front   6.50-10-10PR 6.50-10-10PR 6.50-10-10PR 7.00-12-12PR 7.00-12-12PR 28*9-15-14PR 28*9-15-14PR
Rear    5.00-8-8PR 5.00-8-10PR 5.00-8-10PR 6.00-9-10PR 6.00-9-10PR 6.50-10-10PR 6.50-10-10PR
Tread Front                                   B2 mm 890 890 890 970 970 1000 1000
Rear                                    B3 mm 920 920 920 970 970 970 970
Wheelbase                                                            A3 MM 1400 1400 1400 1600 1600 1700 1700
Ground clearance (full load / no load) Mast          M  mm 95/105 95/105 85/105 85/105 85/105 110/135 110/135
Frame        F  105/115 105/115 105/115 100/105 100/105 130/135 130/135
Engine Apply to truck model    CPC(D)10/15/18-X1 CPC(D)10/15/18-W1 CPC(D)20/25-X2 CPC(D)20/25-W1 CPC(D)20/25-W3 CPC(D)30/35-X2 CPC(D)30/35-X3 CPC(D)-30/35-W1 CPC(D)30/35-W2
Model    XINCHAI NB485BPG ISUZU C240PKJ XINCHAI 490BPG ISUZU C240PKJ ISUZU HJ493 XINCHAI 490BPG XINCHAI 495BPG ISUZU C240PKJ ISUZU 4JG2
Rated output  kw/rpm 30/2600 34.5/2500 37/2650 34.5/2500 39/2500 37/2650 42/2650 34.5/2500 44.9/2450
Rated torque  N.m/rpm 131/1800 139/1800 148/1900 139/1800 165/1800 148/1900 174/1800-2000 139/1800 186.3/1600-1800
No.of cylinder    4 4 4 4 4 4 4 4 4
Bore × stroke mm 85*100 86*102 90*100 86*102 92*93 90*100 95*105 86*102 95.4*107
Displacement  L 2.27 2.369 2.54 2.369 2.771 2.54 2.98 2.369 3.059
