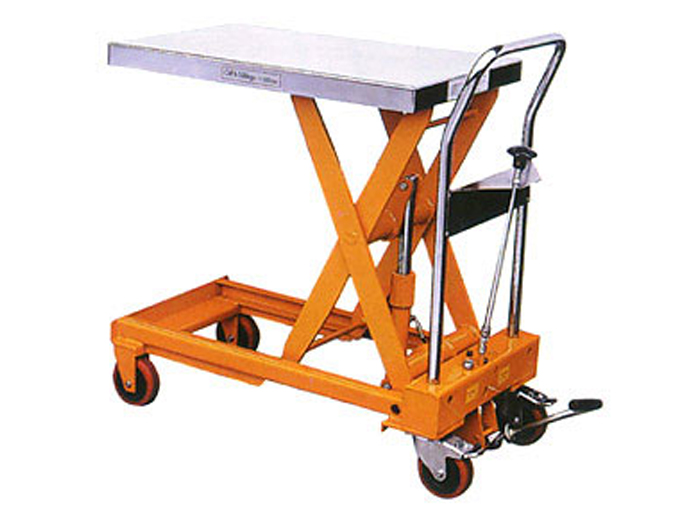

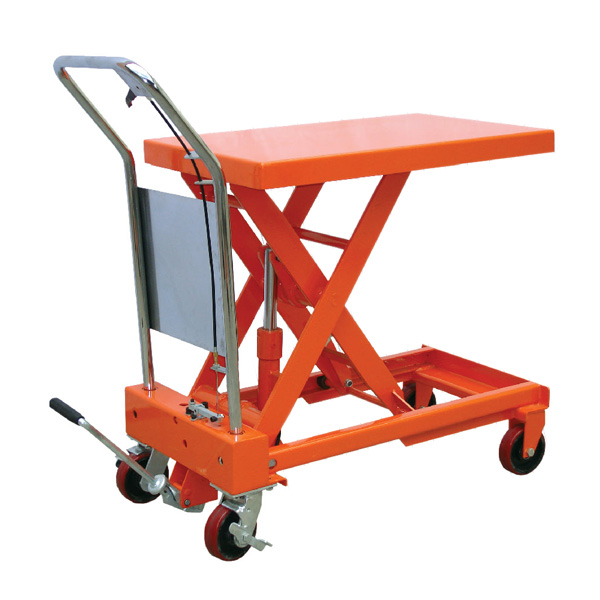

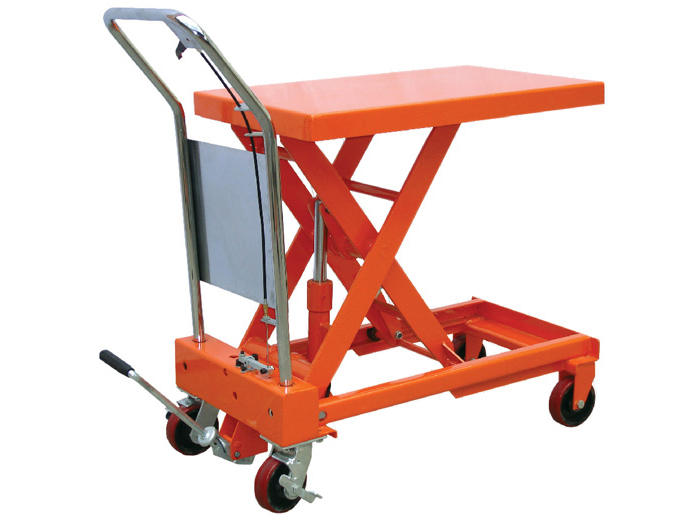

Name:CYT-C Table Lift with Division Cylinder
Model:CYT-150C/CYT300C/CYT500C
Product Introduction:Features & Benefits 1.Simple,compact design. 2.Fully complying product. 3.Manual operation. 4.All tables fitted with service props . 5.Simple to add rollers etc. 6.Fully serviceable components. 7.Fast moving product line.

Features & Benefits

1.Simple,compact design.

2.Fully complying product.

3.Manual operation.

4.All tables fitted with service props .

5.Simple to add rollers etc.

6.Fully serviceable components.

7.Fast moving product line.

Model CYT150C CYT300C CYT500C
Load Capacity kg 150 300 300
Max. Height mm 740 900 900
Min. Height mm 225 285 285
Table Dimension mm 700×450×35 820×500x50 820×500x50
Handle Height mm 935 1000 980
Stroke to Max. Height stroke 25 ≤32 ≤45
Wheel Diameter mm 100 127 127
Packing Size mm 820×480×265 1000×520×300 1000×520×300
Self-Weight kg 44 78 85
Remark: *C=with vertical Cylinder
