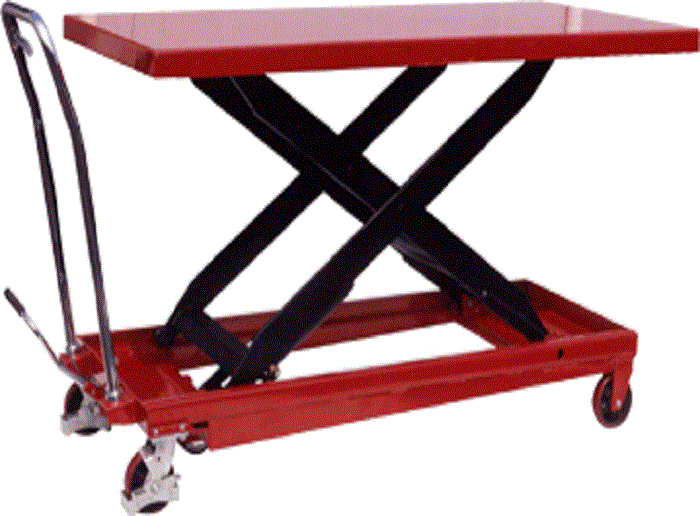

Name:CYT-B Big Table Lift
Model:CYT-500B/CYT-1000B
Product Introduction:1.Simple,compact desing. 2.Fully complying product with super large table. 3.Manual operation. 4.All tables fitted with service props. 5.Simple to add rollers etc. 6.Fully serviceable components. 7.Fast moving product line .

1.Simple,compact desing.
2.Fully complying product with super large table.
3.Manual operation.
4.All tables fitted with service props .
5.Simple to add rollers etc.
6.Fully serviceable components.
7.Fast moving product line.
Model CYT500B CYT1000B
Capacity kg 500 1000
Min.table height mm 290 360
Max.table height mm 915 1360
Dimension of table mm 1600x810 2035x750
Caster wheel mm Φ125x40 Φ180x50/Φ80x40
Foot pedal cycles to max.height ≤55 times ≤200 times
N.W kg 154 198
Height of handle from the ground mm 975 1000
