Home >> Products >> CYT Hand Single Scissor Table Lift

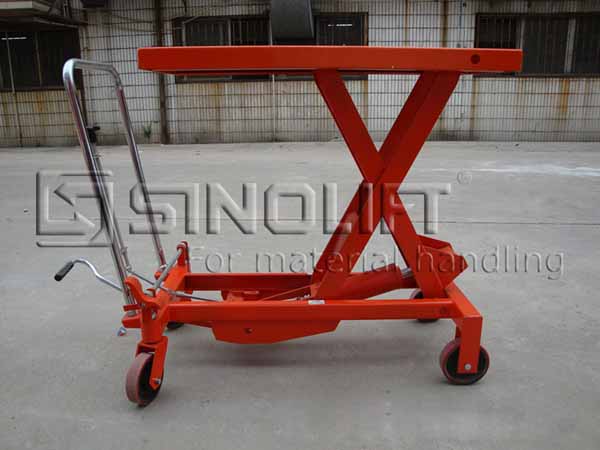

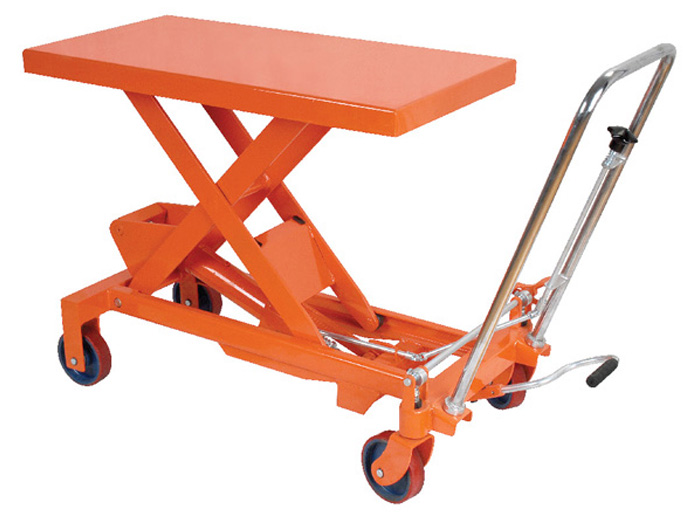

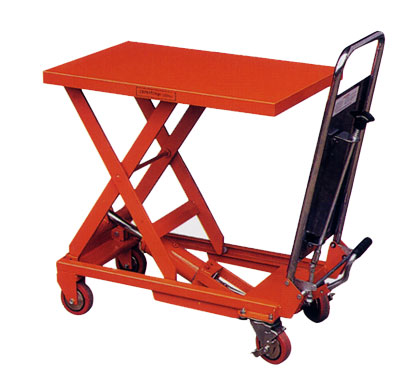

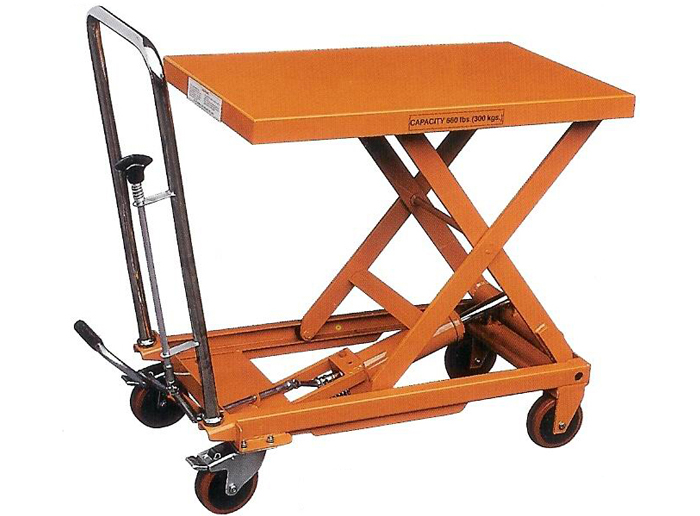

CYT Hand Single Scissor Table Lift
Name：CYT Hand Single Scissor Table Lift
Model：CYT
Product Introduction：1. All lifting table trucks have two kinds of lowering systems wire or nut 2. Handle with plate protection 3. Handle with rubber 4. Conforms to EN1757-4
Feature
Specifications
PDF
IMAGES

1. All lifting table trucks have two kinds of lowering systems wire or nut

2. Handle with plate protection

3. Handle with rubber

4.Conforms to EN1757-4


Model Load Capacity(kg) Max. Height(mm) Min. Height(mm) Table Dimension(mm)
CYT150 150 740 225 700×450×35
CYT150A 150 740 225 740×450×35
CYT200 200 1000 340 1000×500×35
CYT300/CYT500 300/500 900 280 815×500×50
CYT300A/CYT500A 300/500 900 340 855×500×50
CYT800 800 1000 420 1000×510×55
CYT1000 1000 1000 380 1016×515×60
Wheel Diameter(mm) Packing Size(mm) Self-Weight(kg) Handle Height(mm)
CYT150 100 820×480×265 44 935
CYT150A 100 1140×620×460 44 935
CYT200 200 880×480×265 60 1056
CYT300/CYT500 127 960×530×420 75/85 1000
CYT300A/CYT500A 127 950×530×390 75/85 970
CYT800 150 1190×630×460 115 996
CYT1000 150 1190×630×420 115 960
