Home >> Products >> CQD-ES Ecnomical Model Full Electric Power Reach Stacker

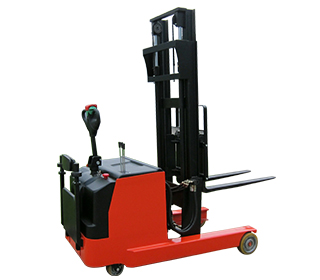

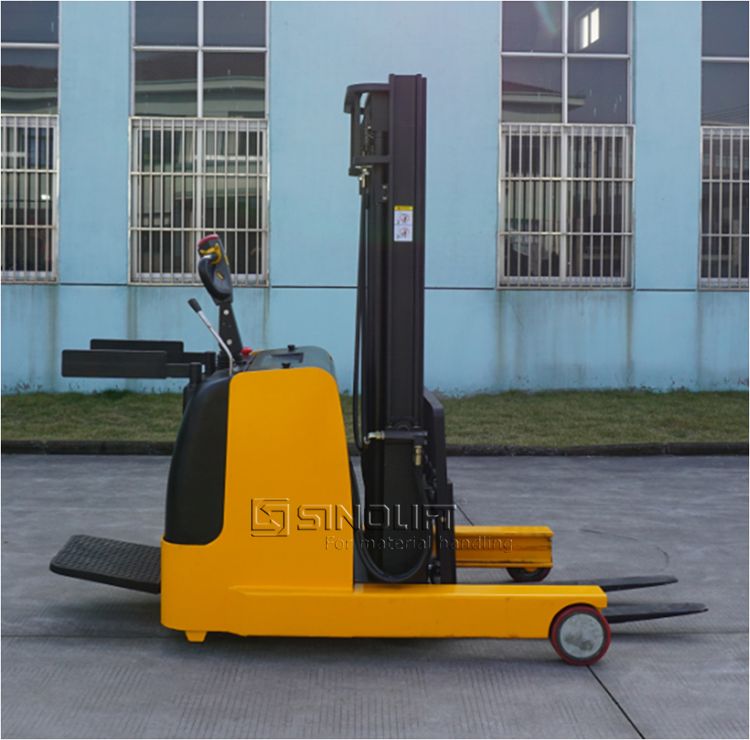

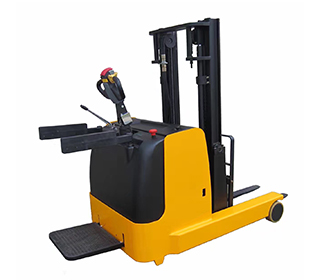

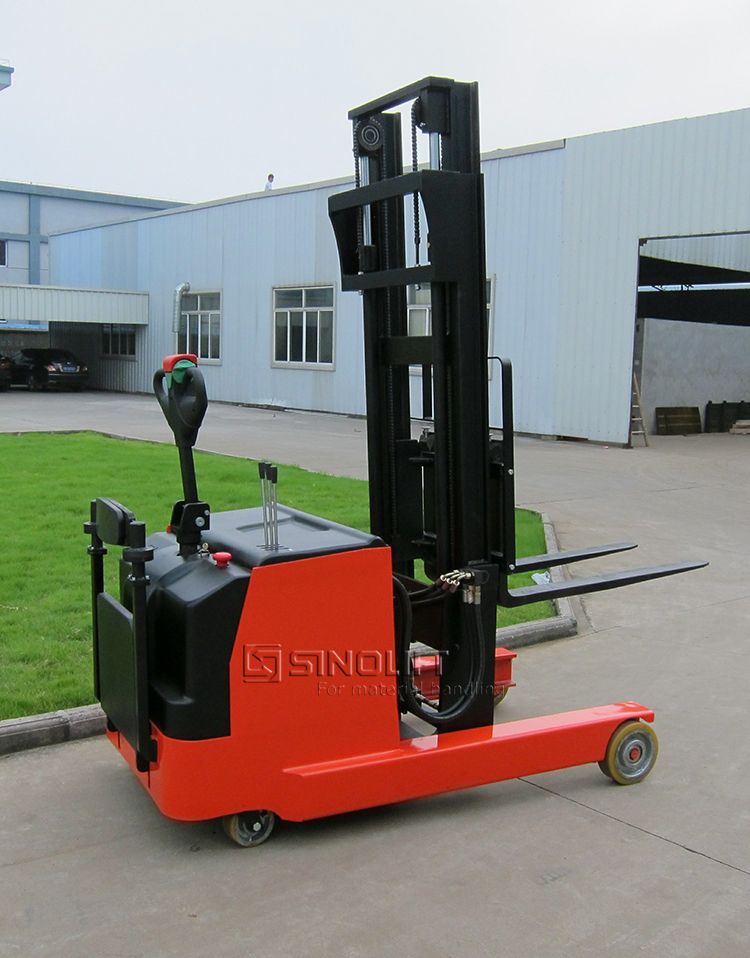

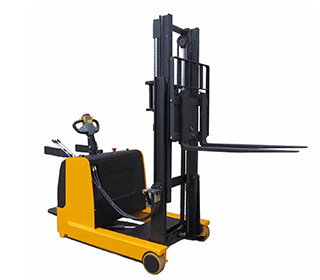

CQD-ES Ecnomical Model Full Electric Power Reach Stacker
Name：CQD-ES Ecnomical Model Full Electric Power Reach Stacker
Model：CQD-ES
Product Introduction：Electric powered steering（EPS)，electromagnetic brake. Vertical driving wheel unit,powerful and reliable. Multi way valve controls lift,forward and tilt of forks. Small overall length allows stacking in a narrow aisle. Strong chassis bears long-term and heavy duty.
Feature
Specifications
PDF
IMAGES

Features:

1. Electric powered steering（EPS)，electromagnetic brake.

2. Vertical driving wheel unit,powerful and reliable.

3. Multi way valve controls lift,forward and tilt of forks.

4. Small overall length allows stacking in a narrow aisle.

5. Strong chassis bears long-term and heavy duty.

6. CURTIS controller,MAHLE hydraulic motor.

7. Traction batteries ensure continuous operation time.

8. Battery charger diaplays charging status visually.

9. Driving motor DC and AC optional.

Model CQD10 CQD15
Driving style Standing pedal
Load capacity                Q kg 1000 1500
Load center                    C mm 450
Min. overall length         L1 mm 2010
Max. overall length         L2 mm 2560
Reach distance of masts  x mm 550
Overall width                 W mm 1060
Min. overall height         H1 mm 1800 2050 2050 2220 1800 2050 2050 2220
Fork dimension       L×b×m mm 920×100×35
Outside width of forks   D mm 240～700
Ground clearance            m1 mm 90
Base distance                  L0           mm 1280
Wheel material PU
Driving wheel size mm Ø230×80
Front wheel size mm Ø200×80
Min. steering radius       Wa mm 1510
Min. width of aisle mm 2500

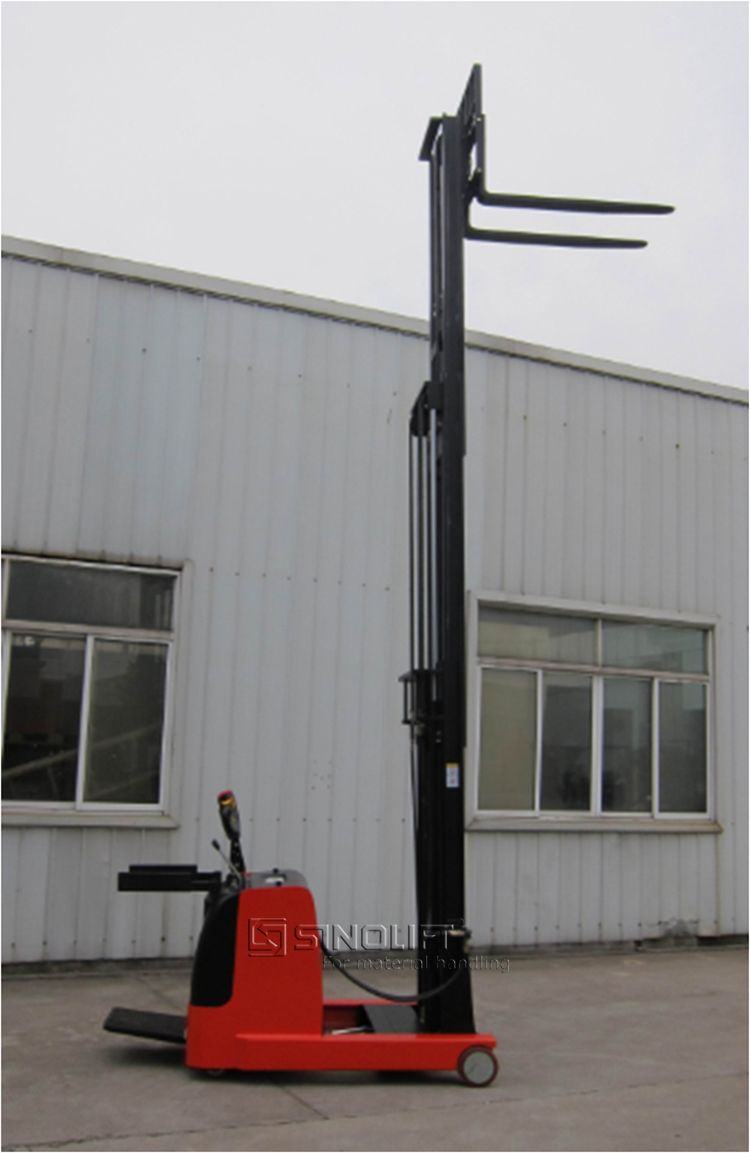

Max. height of forks       H mm 2500 3000 4500 5000 2500 3000 4500 5000
max. overall height          H3 mm 3360     3860     5360     5860     3360     3860     5360     5860
Fork tilt angle forward   α (°) 2
backward β (°) 5
Max. travel speed km/h 5.5
Gradeability(laden) % 5
Brake style Electromagnetic
Power of driving motor kw 2
Power of lift motor kw 2.2  3.0  2.2  3.0
Power of steering motor kw 0.2
Battery capacity/voltage Ah/V 240/24
Weight of battery kg 240
Net weight without battery kg 1480 1520 1670 1720 1650 1690 1870 1920
