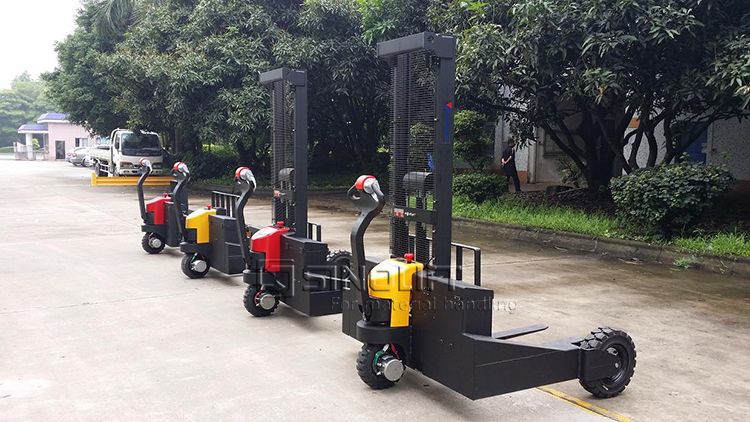

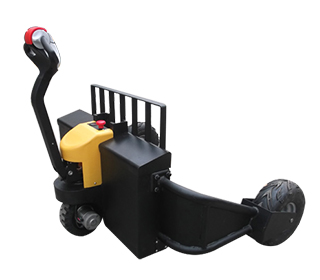

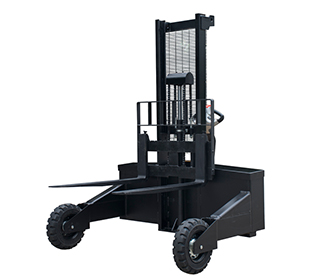

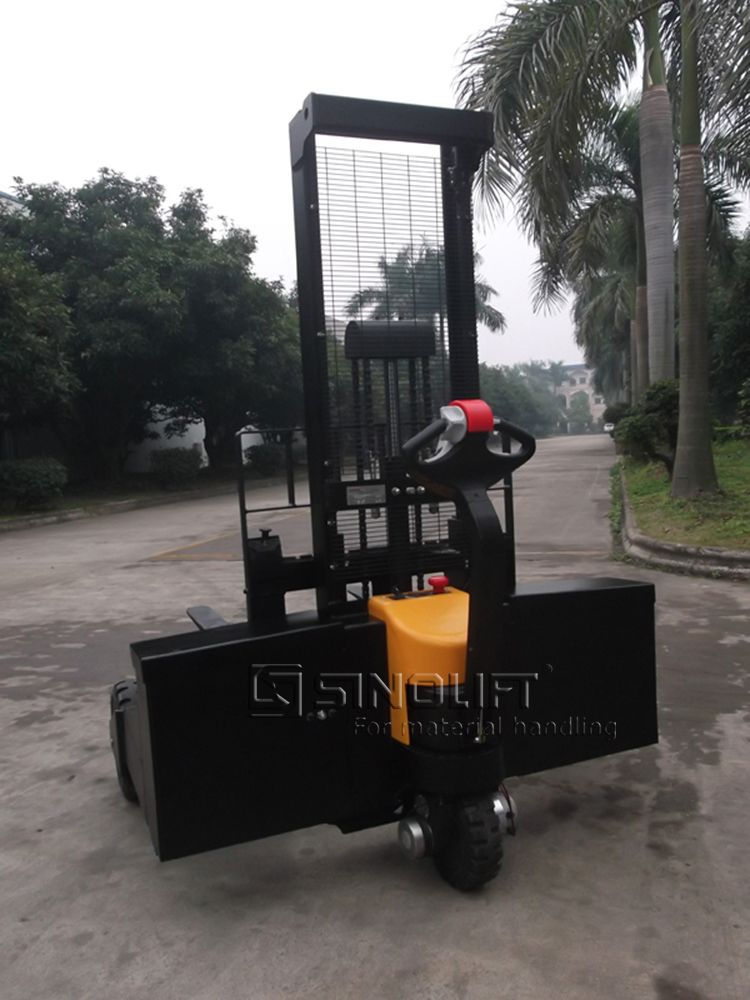

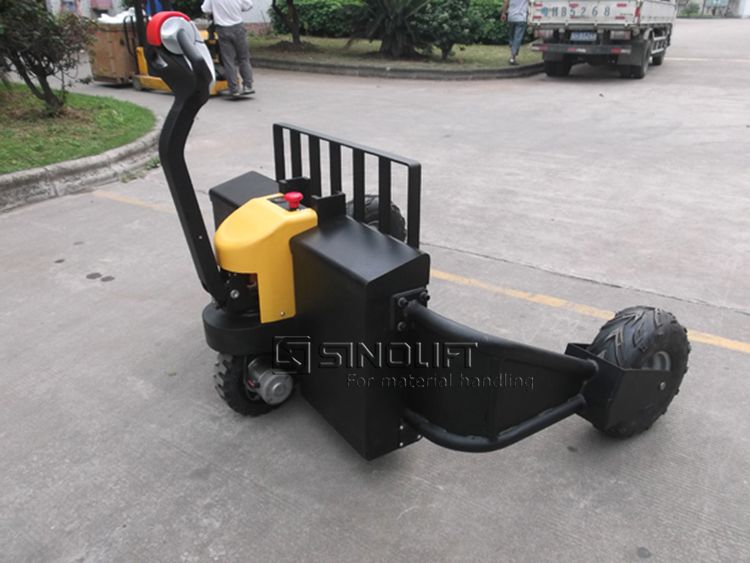

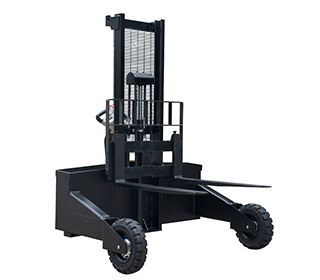

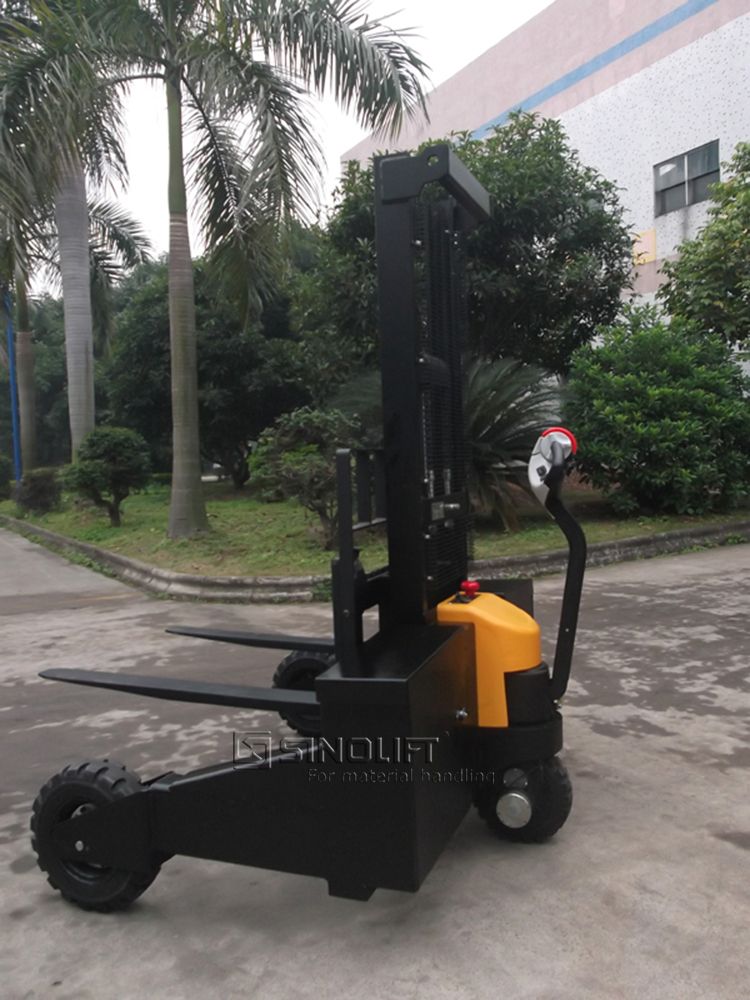

Name:WS100-16RTL Cross Country Stacker
Model:WS100-16RTL
Product Introduction:The electric terrain rough pallet stacker is a walk-behind type forklift. It has been especially designed for the transportation of pallets on rough terrains, such as construction sites, gravel pilts,nurseries and mud lands.

Features:

1. The electric terrain rough pallet stacker is a walk-behind type forklift. It has been especially designed for the transportation of pallets on rough terrains, such as construction sites, gravel pilts,nurseries and mud lands.

2.This pallet stacker has straddle legs which provide great stability. The large wheels and raised chassis make it ideal for rough terrain. It is suitable for loading, unloading and transportation of most standard pallets. And it can travel steep inclines of up to 10% with full load and 15% with 1000KG. The rough terrain pallet stacker can for example be used in underground car parks and travel up ramps between levels.

3. We can also offer special attachments such as crane jib, boom, drum clamp, load protectors, extended forks and sliding hook.

4. The Electric Rough Terrain Pallet Stacker is also available with raised fork heights from 1500 and 5800mm.

Model WS-100/16RTL
Load Capacity kg 1000
Lifting Height mm 1600
Adjustable Overall Fork Width mm Max. 850
Leg Inside Width mm 1270
Front Solid Rubber Tyre mm Φ406x110
Rear Solif Rubber Tyre mm Φ310x100
Drive Wheel v/w DC24v/1200w
Battery v/Ah 2x12v/100Ah
Charger VST124-10 Portable
Hydraulic Station v/w DC24v/1300w, 4L Oil Tank
Lifting Speed (Load) mm/s 13
Driving Speed (Unload) km/h 4.5
Driving Speed (Load) km/h 3.5
Climb Capacity (Unload) % 10
Climb Capacity (Load) % 5
Handle Height mm 1235
Overall Length mm 1720
Overall Width mm 1574
Overall Height mm 2062
