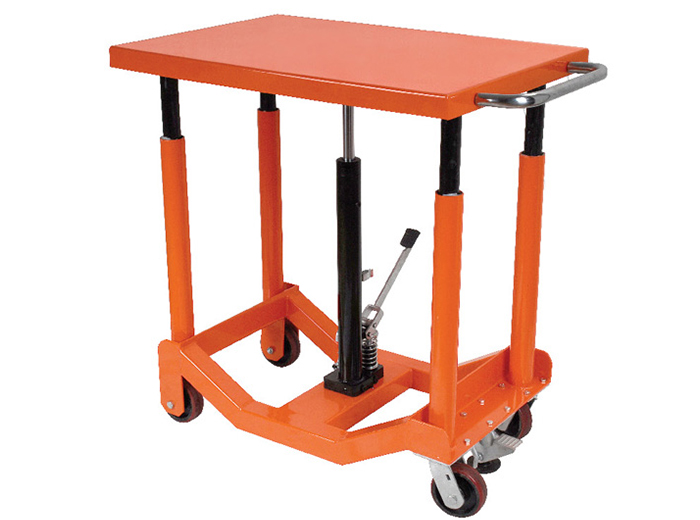

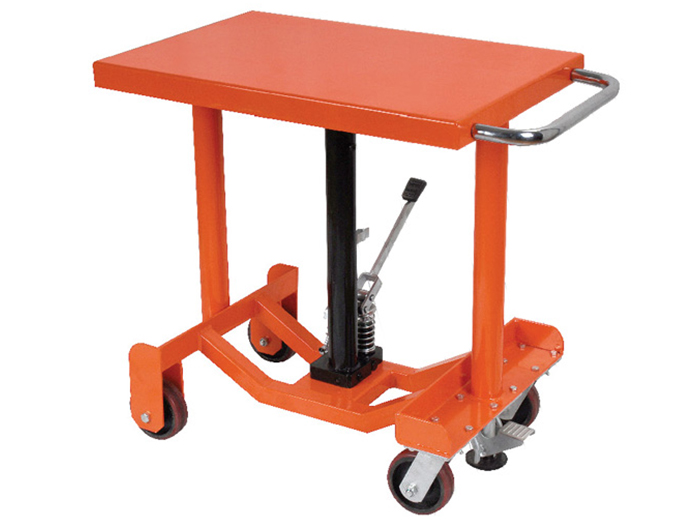

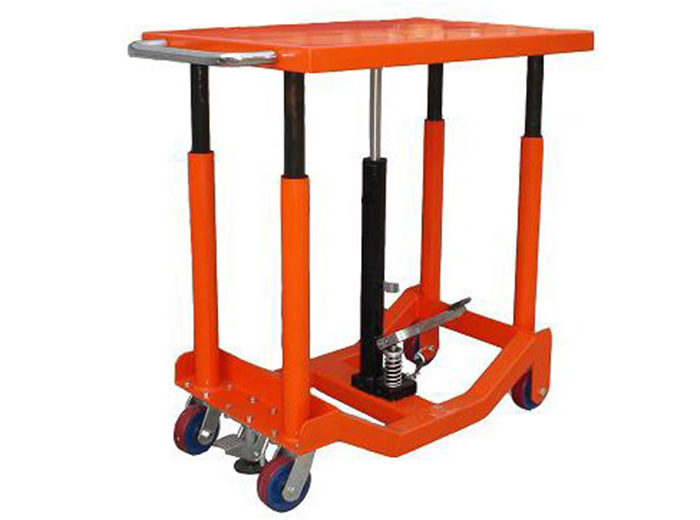

Name:PTC series table truck
Model:PTC series
Product Introduction:Foot-operated hydraulic lift tables for heavy duty shop. Auto two speed manual hydraulic foot pump for maximum operation comfort and producting. DC electric motor to automatically raise and lower the platform is available. All models includes:casters, two rigid and tow swivel with wheel brakes. 1,2 & 4 Post Models Available

Foot-operated hydraulic lift tables for heavy duty shop.
Auto two speed manual hydraulic foot pump for maximum operation comfort and producting.
DC electric motor to automatically raise and lower the platform is available.
All models includes:casters, two rigid and tow swivel with wheel brakes.
1,2 & 4 Post Models Available
Model PTC12-10 PTC18-10 PTC12-20 PTC18-20 PTC12-40 PTC18-40
Load capacity 455Kg,1000lb 455Kg,1000lb 910Kg,2000lb 910Kg,2000lb 1820Kg,4000lb 1820Kg,4000lb
Lowest height 635 787 635 787 635 787
Max height 940 1245 940 1245 940 1245
Table size 508×762 508×762 610×915 610×915 610×915 610×915
Self-weight 72 78 96 101 116 116
