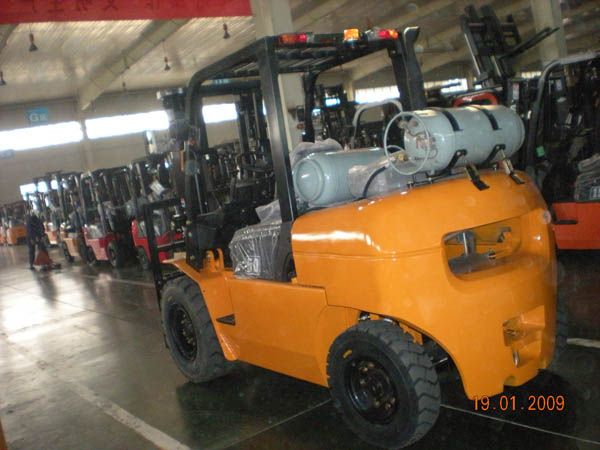

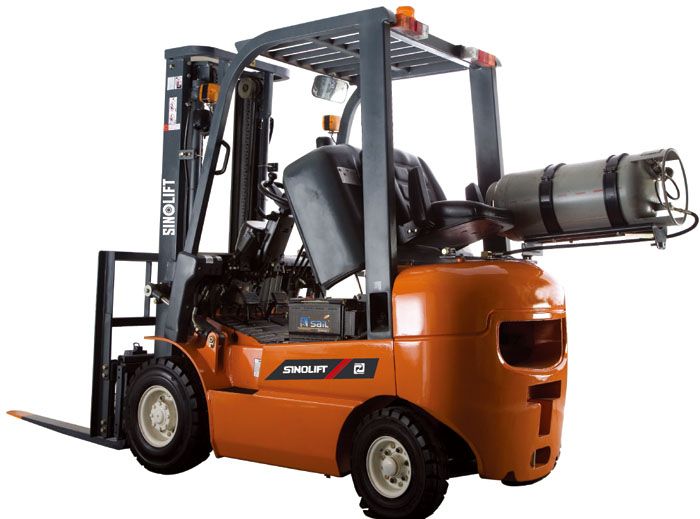

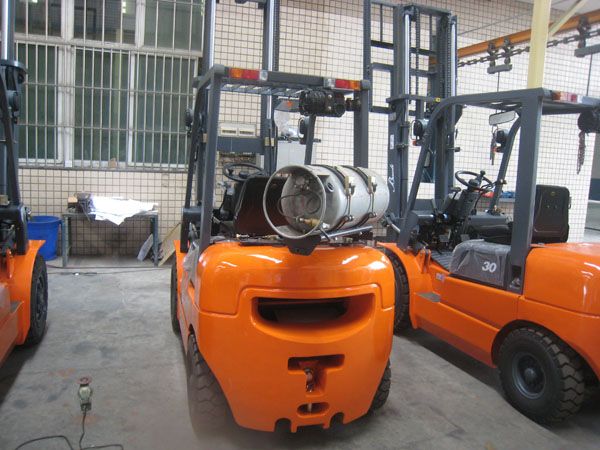

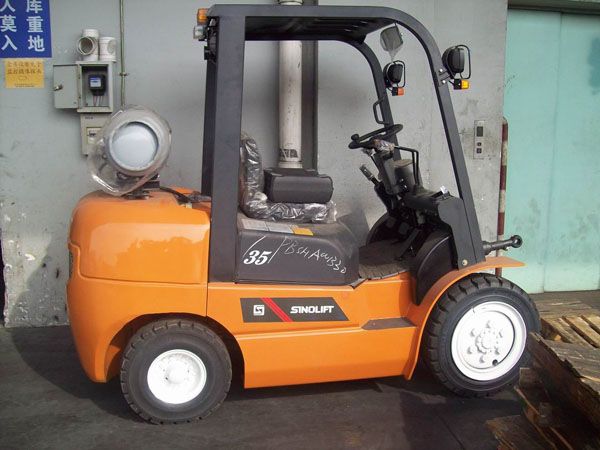

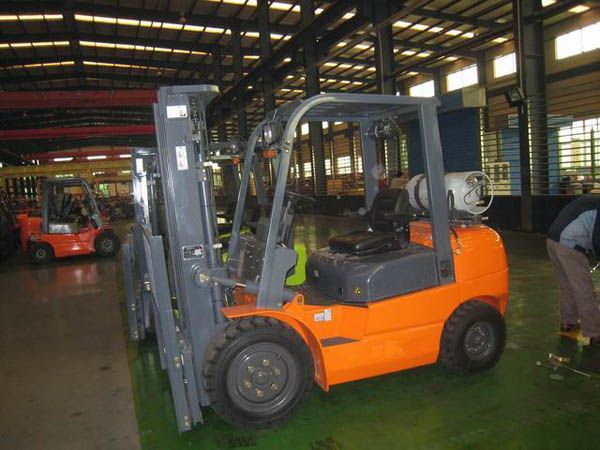

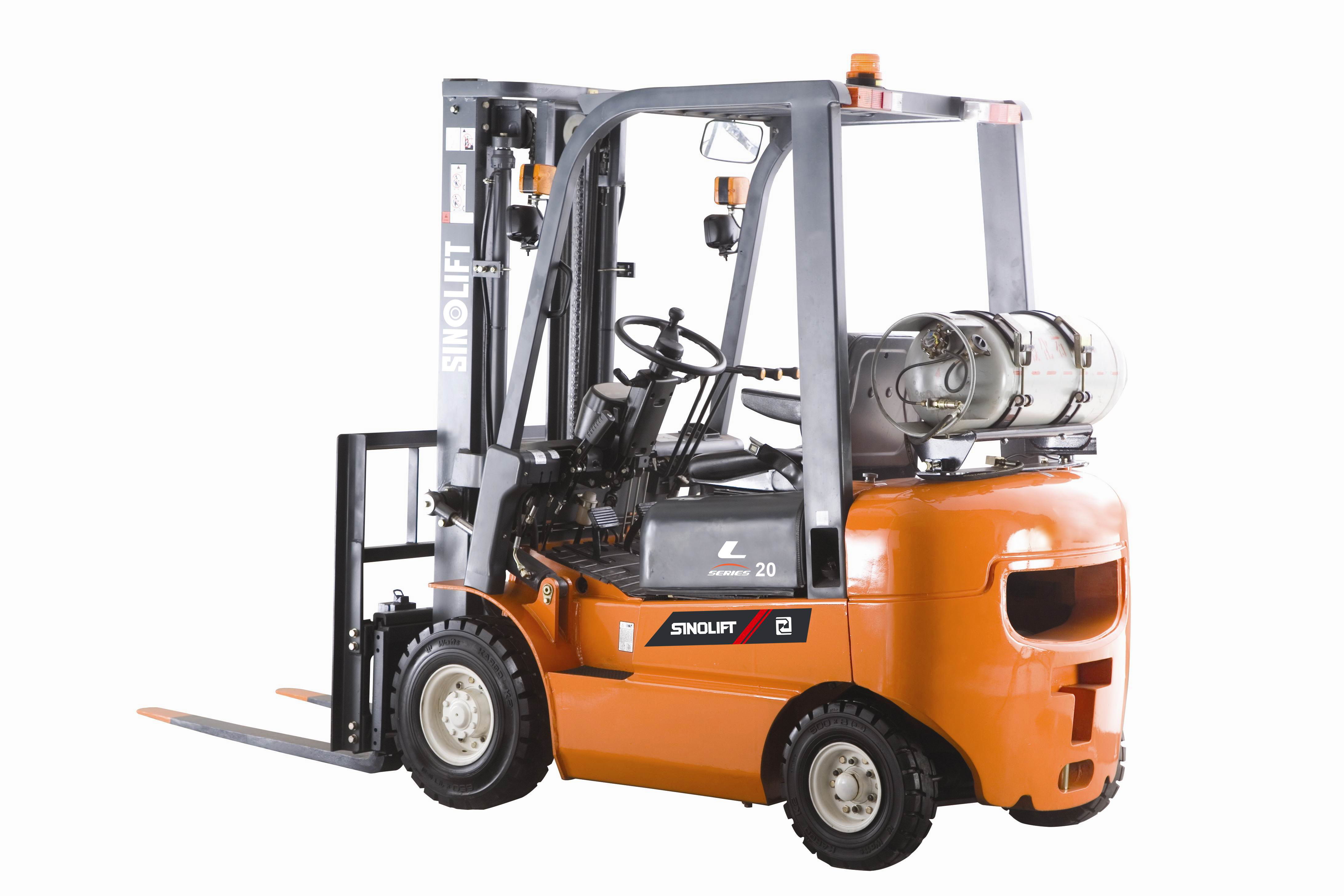

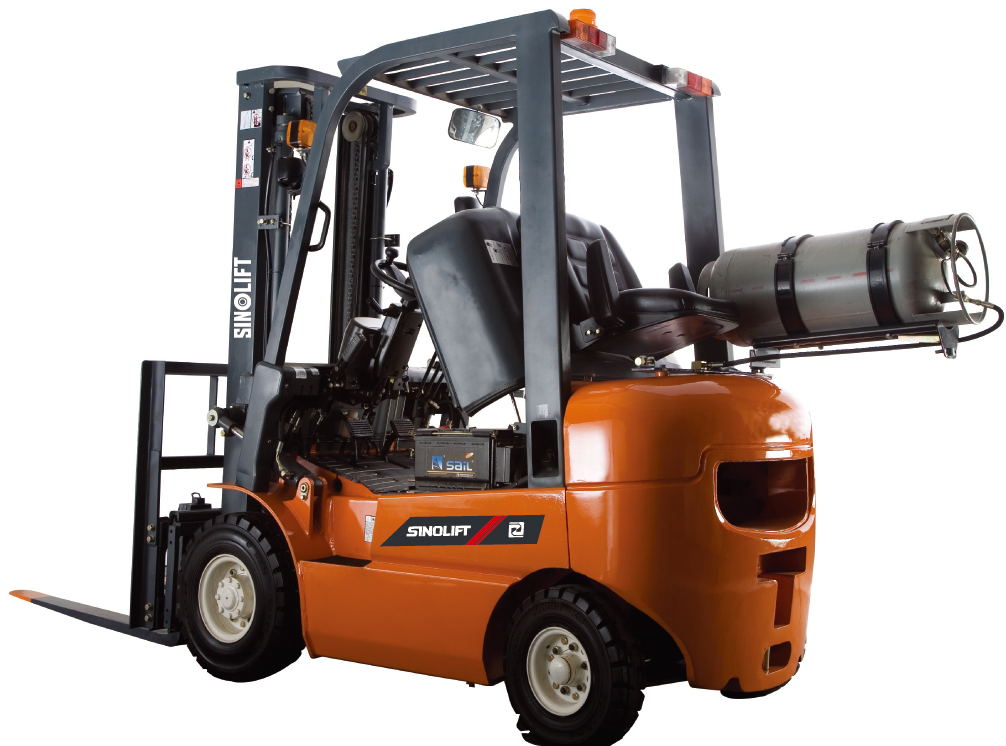

Name：L series LPG Forklift
Model：L series LPG
Product Introduction：L series LPG Forklift

Characteristic:
1) Streamlined exterior and high-strength frame
2) Comfortable driving room and mini steering wheel
4) transverse steering axle as Buffer device
5) Reliable special designed instrument
6) Overhead intake system,Integral hood,effectual in heat insulation and noise reduction
7) Imported diesel and gasoline engines can be option to save energy and increase efficiency.
8) Choose gasoline and LPG as power according to customers’demands
　SPECIFICATIONS:
1) Rated capacity (kg): 1500,2000, 2500, 3000, 3500
2) Max lifting height (mm): 3000, 4000, 4500, 4800, 5500, 6000
3) All kinds of attachments for special function available
4) Diesel engine: Japan Isuzu ,Yanmar,Nissan or Chinese engines.

Generals	Manufacture			SINOLIFT 2.0-3.5T Gas/LPG Forklift Specifications
	Model				CPQ(D)20-WF CPY(D)20-WF	CPQ(D)25-WF CPY(D)25-WF	CPQ(D)30-WF CPY(D)30-WF	CPQ(D)35-WF CPY(D)35-WF
					CPQ(D)20-H1 CPY(D)20-H1	CPQ(D)25-H1 CPY(D)25-H1	CPQ(D)30-H2 CPY(D)30-H2	CPQ(D)35-H2 CPY(D)35-H2
					CPQ(D)20-H2 CPY(D)20-H2	CPQ(D)25-H2 CPY(D)25-H2	CPQ(D)30-R CPY(D)30-R	CPQ(D)35-R CPY(D)35-R
					CPQ(D)20-R CPY(D)20-R	CPQ(D)25-R CPY(D)25-R	*****	*****
	Power type				Gasoline LPG	Gasoline LPG	Gasoline LPG	Gasoline LPG
	Rated capacity			kg	2000	2500	3000	3500
	Load center			mm	500	500	500	500
Dimensions	Lift height			mm	3000	3000	3000	3000
	Free lift height E			mm	140	140	145	145
	Fork size N×U×L			mm	107012040	107010045	107012545	107013045
	Mast tilt angle α / β			deg	6/12	6/12	6/12	6/12
	Front overhang A2			mm	482	482	501	501
	Overall dimensions	Length to face of fork A1		mm	2510	2580	2720	2720
		Overall width B1		mm	1150	1150	1225	1225
		Mast lowered height H1		mm	1995	1995	2070	2070
		Mast extended height H3		mm	4037	4037	4272	4272
		Overhead guard height H2		mm	2060	2060	2090	2090
	Turning radius R			mm	2170	2240	2460	2540
	Min. right angle aisle width X			mm	1920	2010	2110	2190
Performance	Travel speed (full load/no load)	Hydraulic		km/h	18/19	18/19	18/19	18/19
		Mechanical	Shift I		8.5/9	8.5/9	8.5/9	8.5/9
		Mechanical	Shift II		18.5/19	18.5/19	18.5/19	18.5/19
	Lift speed (full load)			mm/sec	450	450	400	360
	Max. gradeability			%	20	20	18	15
	Self weight			kg	3550	3880	4380	4750
Wheel & Tires	Tires	Front			7.00-12-12PR	7.00-12-12PR	28X9-15-14PR	28X9-15-14PR
	Tires	Rear			6.00-9-10PR	6.00-9-10PR	6.50-10-10PR	6.50-10-10PR
	Tread	Front B2		mm	970	970	1000	1000
	Tread	Rear B3		mm	970	970	970	970
	Wheelbase A3			mm	1600	1600	1700	1700
	Ground clearance (full load/no load)		Mast M	mm	85/105	85/105	110/135	110/135
	Ground clearance (full load/no load)		Frame F	mm	100/105	100/105	130/135	130/135
Drive units & control	Engine	Engine Name Code			F1	H1	H2	R
		Model			WANFENG WF491GP	NISSAN H20 (K21)	NISSAN H25(K25)	MITSUBISHI 4G64
		Rated output		kw/rpm	41/2800	36.8/2600	44/2500	37/2500
		Rated torque		N.m/rpm	161/2000	152/1600	179/1600	161/1600
		No.of cylinder			4	4	4	4
		Bore×stroke		mm	91*86	87.2*83	92*93	86.5*100
		Displacement		L	2.237	1.982	2.472	2.35
