Home >> Products >> ALT Electric Load and Unloading Lift Table

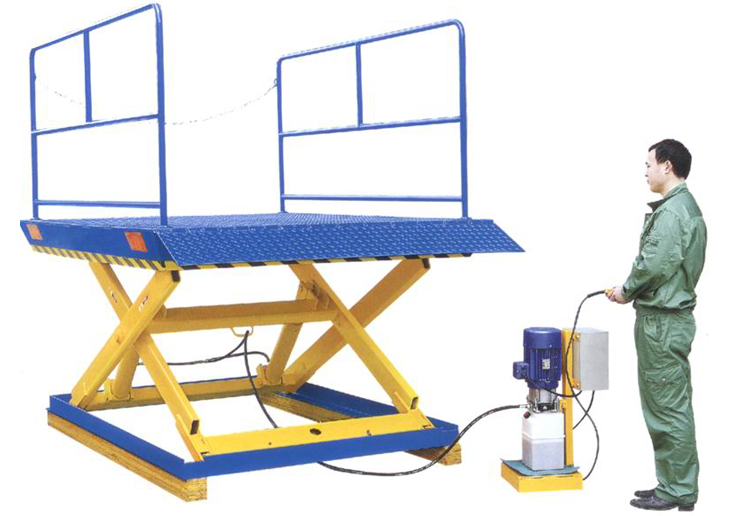

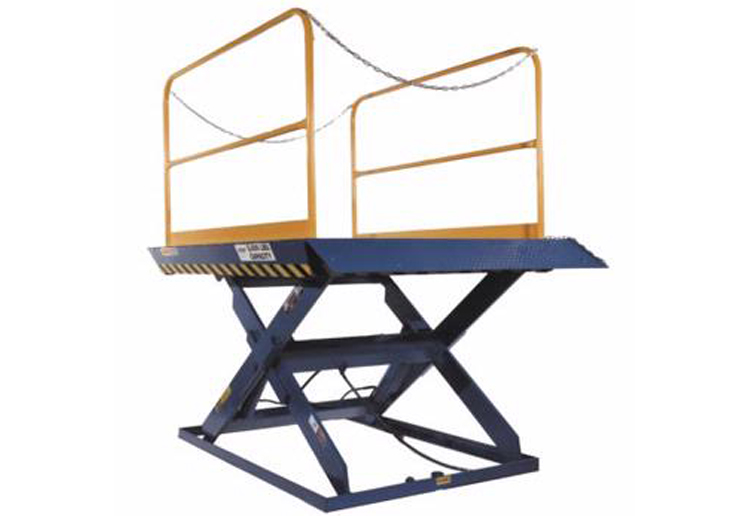

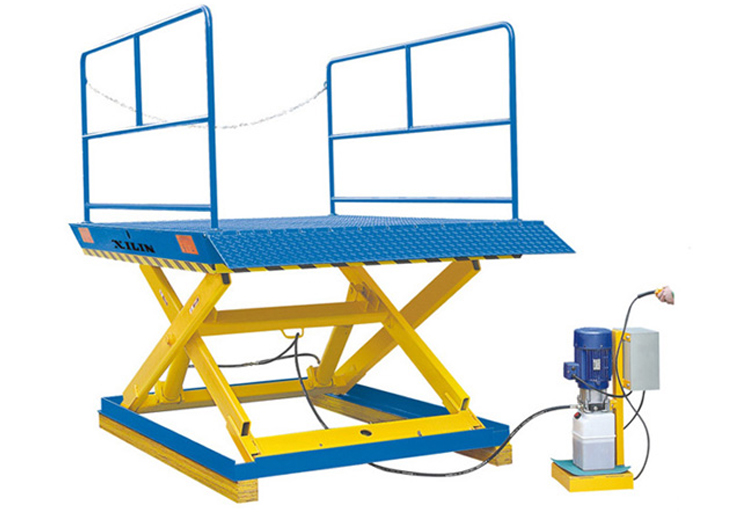

Name：ALT Electric Load and Unloading Lift Table
Model：ALT27/ALT10/ALT20
Product Introduction：1.Designed for industrial heavy duty applications(as part of a production process,for machine feeding or stacking etc.) 2.Double acting hydraulic cylinders. 3.Lifting limit switch. 4.Alum. table frame protects workers from injury by cutting off power.

1.Designed for industrial heavy duty applications(as part of a production process,for machine feeding or stacking etc.)
2.Double acting hydraulic cylinders.
3.Lifting limit switch.
4.Alum. table frame protects workers from injury by cutting off power.

MODEL			ALT27	ALT 10	ALT 20
Capacity	kg	kg	2700	1000	2000
Max. lift height	L4	mm	1700	1080	1080
Min. height of table	L3	mm	220	165	165
Lifting height		mm	1480	915	915
Table size	L1 x L2	mm	2445x1830x195	1220x610x70	1220x610x70
Moter power		kw	3	1.5	1.5
Input voltage		V	220/380	220/380	220/380
Lifting speed		S	40	12	25
Lowering speed		mm/s	＜150	＜150	＜150
