Home >> Products >> HU “U” Shape Electric Stationary Lift Table

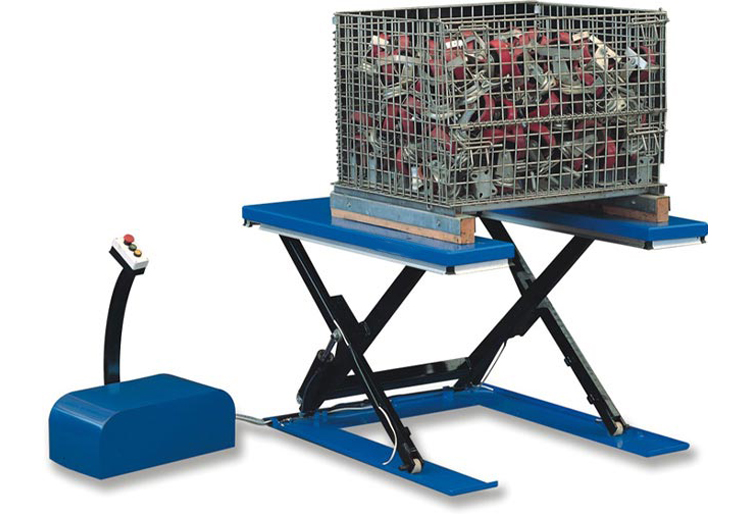

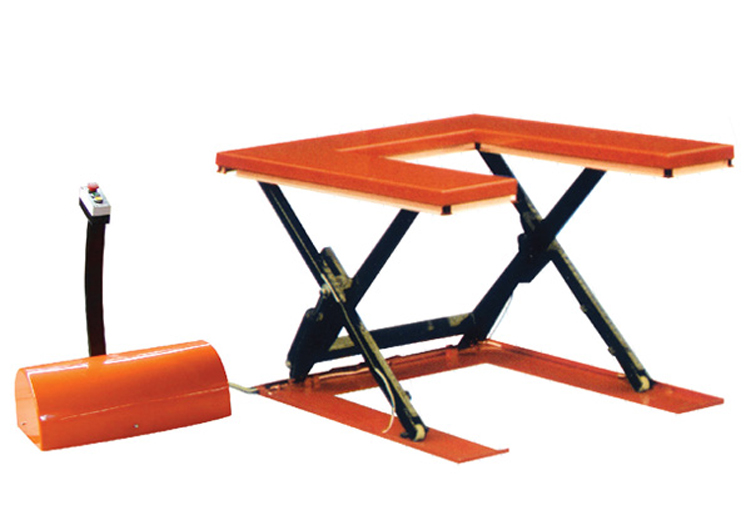

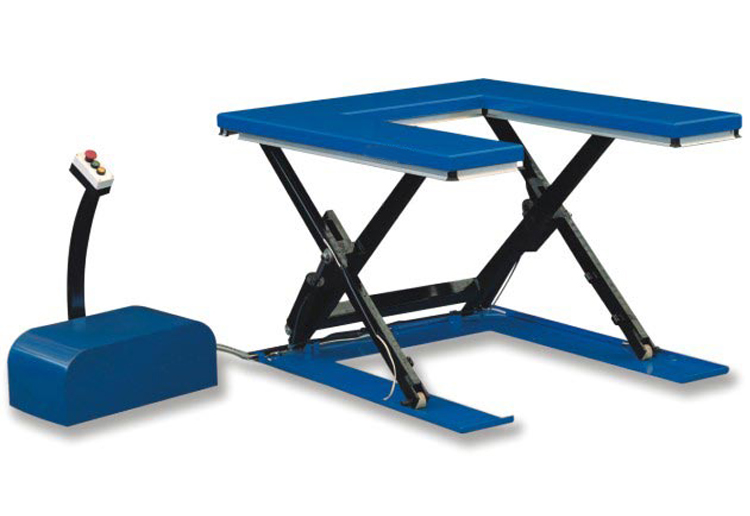

Name：HU “U” Shape Electric Stationary Lift Table
Model：HU
Product Introduction：● ‘U’ shaped table are especially for handling pallets, no need for a pit or load ramps ●They are manufactured to all European safety standards including EN1570:1999 ●Remote power pack with pedestal and controls, protected to IP54 ●Upper platform fitted with safety perimeter to prevent descent on contact with obstructions ●24V control box with UP and DOWN buttons and emergency stop ●External power pack equipped with a relief valve against overloading and a compensated flow valve for controlling lowering speed ●Hose burst safety valve to stop the lift table lowering in case of hose breakage ●Removable lifting eyes to facilitate handing and installation of hose breakage ●Oils bushings on pivot points ●Quick assembly joint for oil hose

● ‘U’ shaped table are especially for handling pallets, no need for a pit or load ramps
●They are manufactured to all European safety standards including EN1570:1999
●Remote power pack with pedestal and controls, protected to IP54
●Upper platform fitted with safety perimeter to prevent descent on contact with obstructions
●24V control box with UP and DOWN buttons and emergency stop
●External power pack equipped with a relief valve against overloading and a compensated flow valve for controlling lowering speed
●Hose burst safety valve to stop the lift table lowering in case of hose breakage
●Removable lifting eyes to facilitate handing and installation of hose breakage
●Oils bushings on pivot points
●Quick assembly joint for oil hose

Model		ETU1000	ETU1500
Capacity	kg	1000	1500
Lowered Height	mm	85	105
Raised Height	mm	860	860
Platform Size	mm	1420x1140	1600x1160
Net Weight	kg	280	364
Packing Dimension	mm	830x520x410	900x560x370
