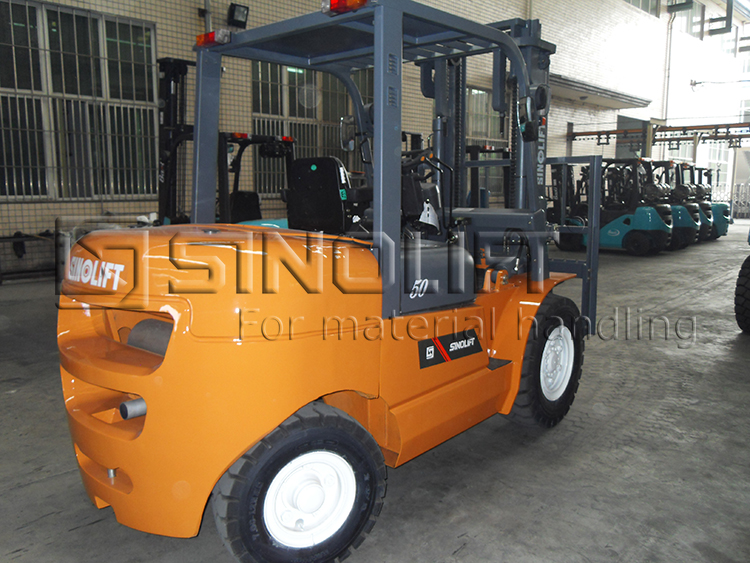

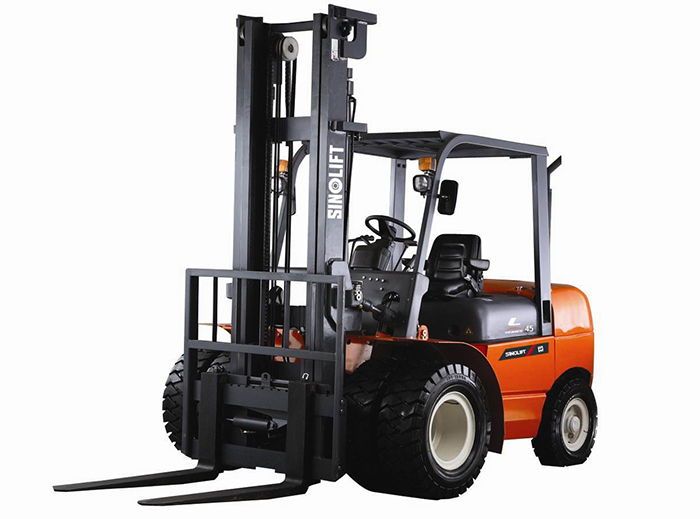

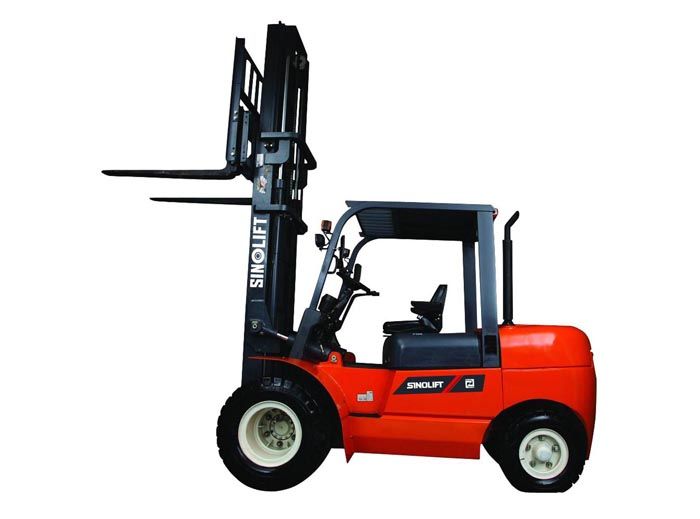

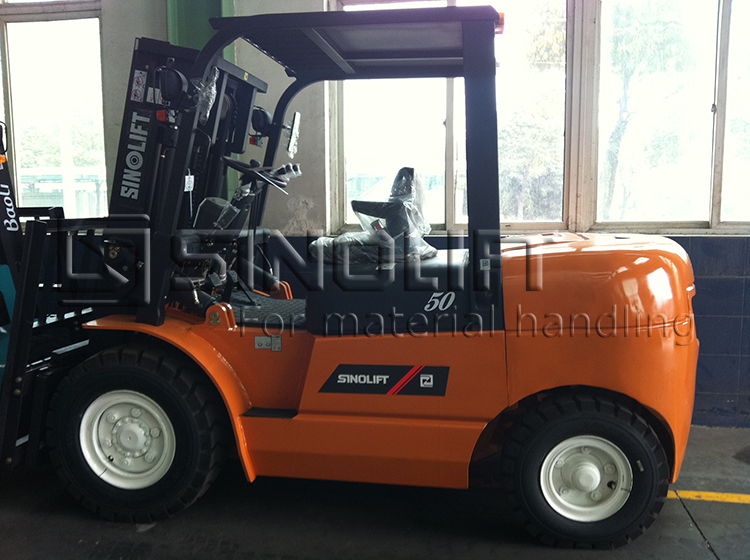

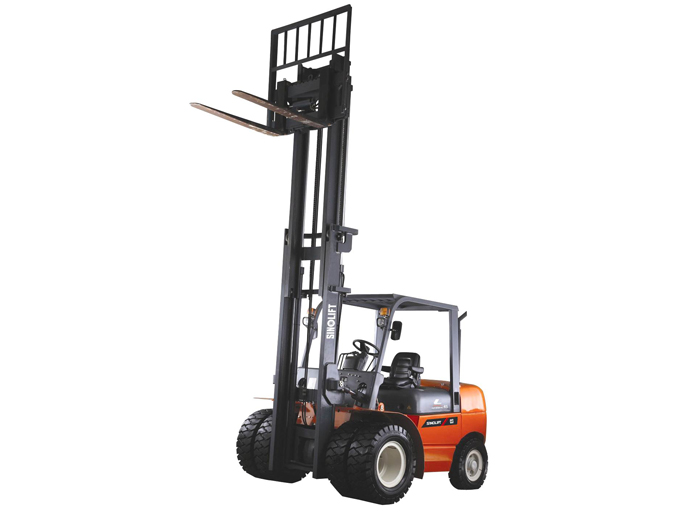

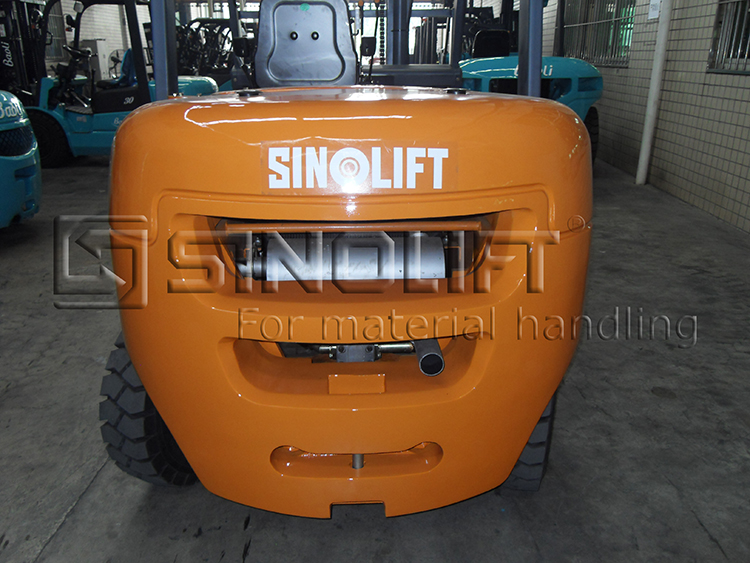

Name:L Series 4-5T Heavy Duty Diesel Forklift(CPCD40-50)
Model:CPCD40/CPCD45/CPCD50
Product Introduction:The key parts adopt Japanese technology and are manufactured at home,so the complete machine holds excellent capacity.The main parts are fairly general,which can reduce greatly the cost of spare parts when the customers choose the variety of our forklifts.


Description
SINOLIFT 4-5T diesel forklift truck . With good stability, this diesel counterbalance truck is quite suitable for loading heavy cargoes. It can be used at any time and applied in outdoors. Compared to gasoline engine, diesel engine possesses better power performance and low fuel charge. The engine is not easy to flame out even at low speed. It owns strong overload capacity and long-term working capacity. Besides, SINOLIFT can provide different sizes of diesel forklift trucks according to customers' needs.

· Competitive Advantages

·         SINOLIFT possesses an innovative R&D team. Its members own more than 15 years' professional design work experience of diesel counterbalance truck.

·         We have got 13 patent certificates. Our company is one of the state-level high-tech enterprises. It is also the engineering and technological research center of industrial diesel forklift truck.

·         It can be equipped with various engines, which is convenient for customers to choose.

·         Enclosed type driver cab is also available with this forklift.

·         This diesel counterbalance truck comes with optimized framework which provides high stability and gets rid of the risk of truck tumbling. The turning radius is small, allowing flexible movement and easy operation. Integration of the operating system makes it easier to manipulate.

·         SINOLIFT 4-5T diesel forklift truck has humanized hydraulic joystick and adjustable steering wheel. Drivers are not apt to wear out even after a long time work.

·         The mast using special roller bearings ensures extended use life and improves reliability.

·         The diesel counterbalance truck is equipped with an aluminum radiator and a torque converter with cooling fins for high durability. They contribute to increase productivity and efficiency.


General

Manufacture

SINOLIFT L Series 4.0T-5.0T  Diesel Forklift Specifications

Model

CPCD40C-X4

CPCD40C-W2

CPCD40C-Y2

Power type

Diesel (Economic type)

Rated capacity

kg

4000

Load center

mm

500

Dimensions

Lift height                                                           H

mm

3000

Free lift height

mm

150

Fork size

mm

1070×140×50

Fork spread outside

Min./Max.

mm

300/1200

Mast tilt angle

deg

6°/12°

Front overhang

mm

510

Overall dimensions

Length to face of fork            A1

mm

2935

Length with fork

mm

4005

Overall width                           B1

mm

1410

Wheel width

mm

//

Mast lowered height              H1

mm

2235

Mast extended height            H3

mm

4270

Overhead guard height         H2

mm

2180

Turning radius                                                  R

mm

2800

Min, right angle aisle width

mm

//

Performance

No load/full load

Travel speed

Forward

km/h

15/14

Forward

19/18

Backward

15/14

Lift speed

mm/sec

450/400

Max. gradeability

%

15

Max. drawbar pull

KN

18

Self weight

kg

5380

Wheel & Tire

Tires

Front

250-15-16PR

Rear

7.00-12-12PR

Tread

Front                          B2

mm

1160

Rear                           B3

mm

1100

Wheelbase                                                      Y

mm

1860

Min.ground clearance

Mast               M

mm

140/125

(no load/full load)

Frame             F

160/155

Drive units & control

Transmissions

Type

Hydraulic

Operating pressure

Mpa

17

17

18

Battery

V/AH

2-12V/80AH or 1x12V/120AH

Engine Options

Engien Code Name

X4

W2

Y2

Model

XINCHAI 498BPG

ISUZU 4JG2-E2

YANMAR 4TNE98-E3

Rated output

kw/rpm

45/2500

44.9/2450

44.3/2300

Rated torque

N.m/rpm

191/1600

186.3/1600-1800

206/1700

No.of cylinder

4

4

4

Bore×stroke

mm

98*105

95.4*107

98*110

Displacement

cc

3168

3059

3319

Fuel tank capacity

L

75

80

80

Remark:

ISUZU A-6BG1QC-05 and Kubota V3800 engine is also optional.
