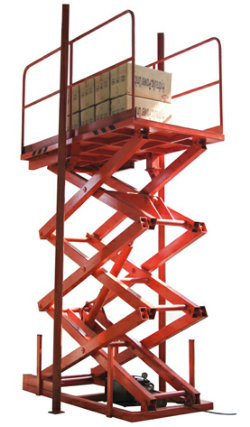

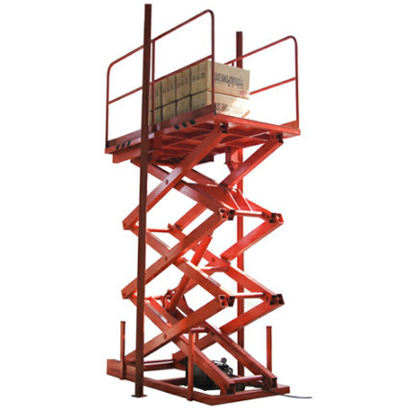

Name:QSJT hydraulic stationary lift platform
Model:QSJT
Product Introduction:Safety clearance between scissors to prevent from trapping. Installed aluminum safety bar to prevent from trapping while descending. Built-in relied valve and compensation flow control valve to fulfill overload protection and control lowering speed. There is safety valve to stop the table or keep slow descending in case of hose burst. Self-lubricating bushing in all pivot points to prolong the lifespan.

1 High-strength steel structure or steel structure
2 Specifications matching customers' needs
3 Mode of operation is flexible.

4. Sound structure, low failure rate, reliable, safe and effective, easy to maintain.

According to user requirements, we can design single fork or multiple fork hydraulic stationarylift and explosion-proof electrical hydraulic stationary lift as well as other abnormal hydraulic stationary lift in different sizes and tonnage.

Specifications: The products use a steel frame structure or high-strength steel structure bearing capacity from 0.3 to 50 tons, and product size and equipment size can be customized according to user needs. Mode of operation can be divided into upper and lower control and ground control of a single person and can also be multi-layer control, flipping spin control.

For places: mainly used in logistics, production lines, cargo lift between floor and the basement, loading and unloading, for the lifting stage, and so on.


Model QSJT0.5-3 QSJT0.5-4 QSJT0.5-6 QSJT0.5-7.5 QSJT0.5-9
Capacity kg 500 500 500 500 500
Raised Height mm 3000 4000 6000 7500 9000
Min Height mm 700 750 750 870 1000
Max Height mm 3700 4750 6750 8370 10000
Platform Size mm 1800×1200 2300×1200 2300×1200 2300×1200 2300×1200
Lifting time s 40 42 80 80 80
Power kw 2.2 3 3 3 3
N.W kg 790 1020 1360 1530 1700
